Binks MX1231 Series - Disassembly Order

77-2924
page 18 of 24

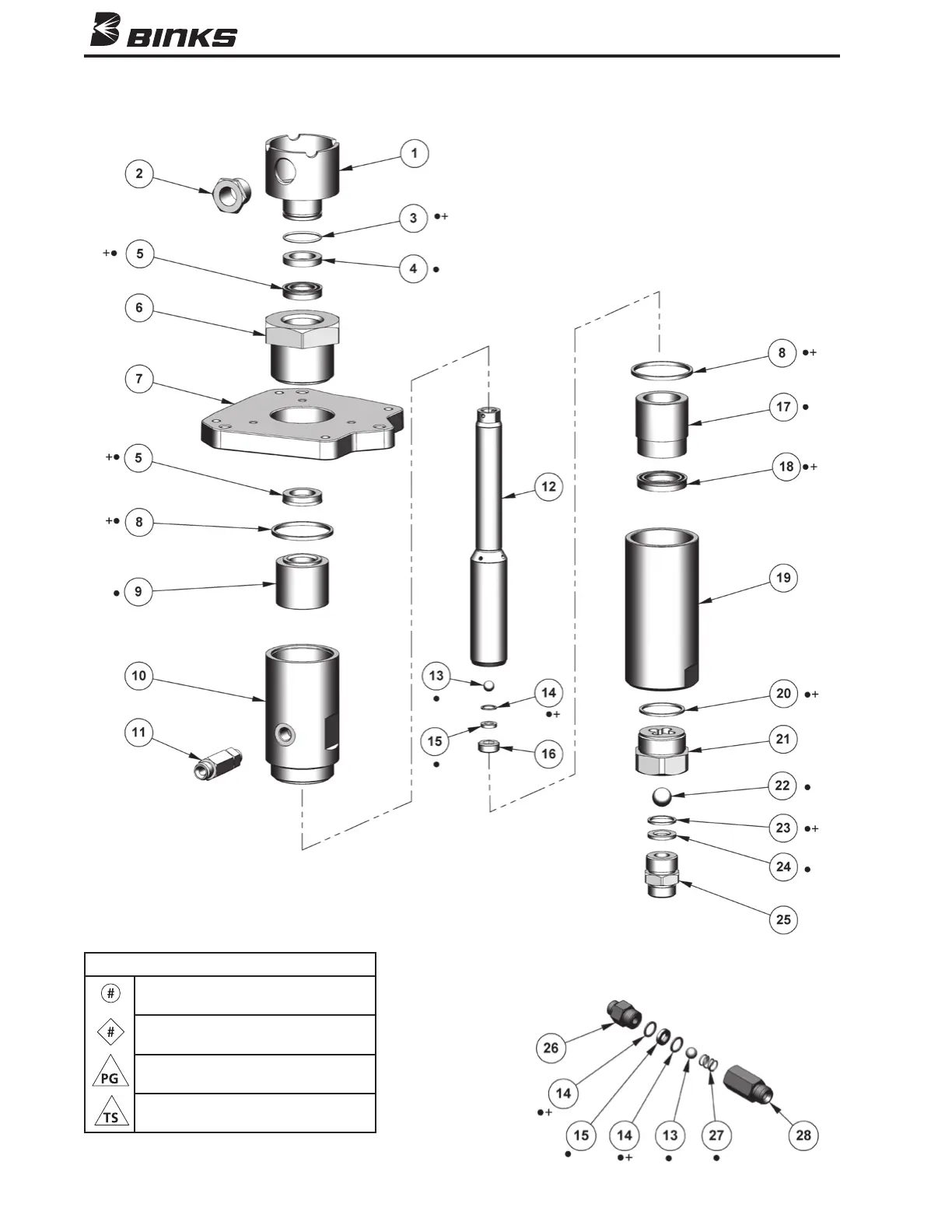

FX12 FLUID PUMP ASSEMBLIES (U-CUPS)
Model: FX12UC
MAINTENANCE SYMBOLS
ITEM NUMBER
DISASSEMBLY ORDER
(Reverse order for assembly)
PETROLEUM JELLY/GREASE
THREAD SEALANT
(PTFE tape)
0115-010269
FX12 CHECK VALVE ASSEMBLY
• Parts are included in 0115-010305 Repair Kit
+ Parts are included in 0115-010304 Seal Kit
