Binks PT-418-CE - Page 8

Page 8
© ITW Inc 2007
Ref.
No.
Replacement
Part No.
Description Individual
Parts Req.
• 82
-
Filister Head Machine screw 10-
24 x 5/8”
4
83 QS-108 Pressure Relief fitting 1
84 QS-37-1 Cover Plate 1
• 85
- Washer 1
86 QS-416-1 Gear & Shaft assy. 1
• 87
- Gasket 1
88
Purchase
locally
Pipe Plug 1/4” Galvanized 1
89 QS-36-1 Housing 1
• 90
- Oil Seal 1
• 91
- Cup point setscrew 5/16” x 3/8” 2
• 92
- Gasket 1
93 QS-59 Worm Gear 1
• 94
- Spacer 1
• 95
- Key, No.5, 5/8”/x 1/8” 1
• Included in KK-5010 Gearbox Repair Kit.
Ref.
No.
Replacement
Part No.
Description Individual
Parts Req.
53 350-401 Air Strainer 1
54 - Strainer Cap 1
+ 55 - Screen 1
· + 56 - Felt 1
57 - Strainer Body 1
58 - Gearbox Assembly (see fig 6) 1
59 32243-133 Washer 1
60 QMS-35 Air Motor Support 1
61 - Cap screw 3/8” x 16 UNC x 2” 2
62 QS-4016 Air Motor 1
63 - Street Elbow 1/4”(M) 1/4”NPT(F) 1
64 H-2008 Nipple 1/4” NPS(M) 1
65 HAV-500 Air Adjusting Valve 1
66 HA-57011 Hose Assembly 1
67 - Service Tee 1/4” 1
+ Ref. No. (55) 2ea and Ref. No. (56) 4ea included in KK-5006 Strainer
Screen and Felt Kit.
• Included in KK-5001-1 Air Motor Repair Kit. See fig 4 for full list of parts
in the kit.

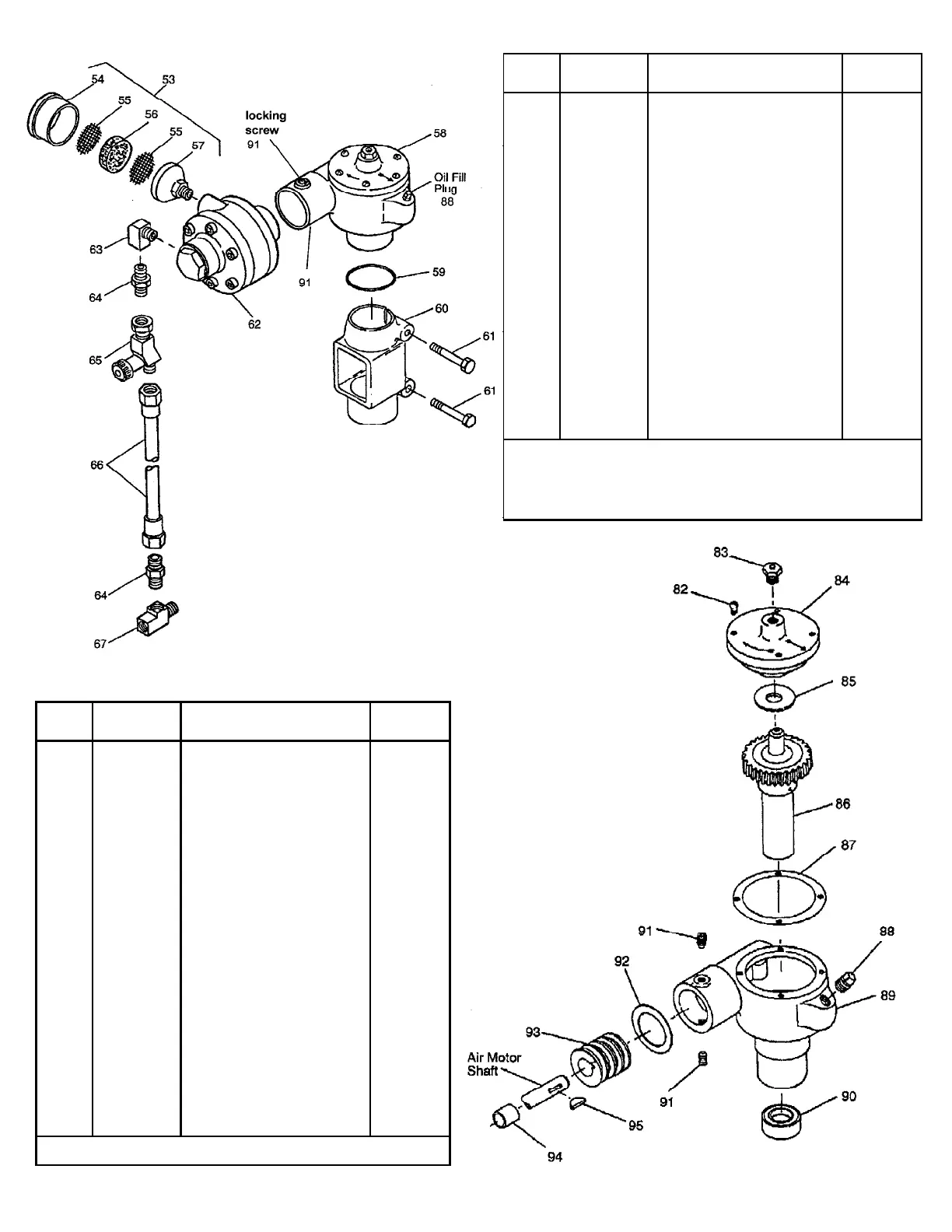

Fig 5
Fig 6
