Page 9
© ITW Inc 2007

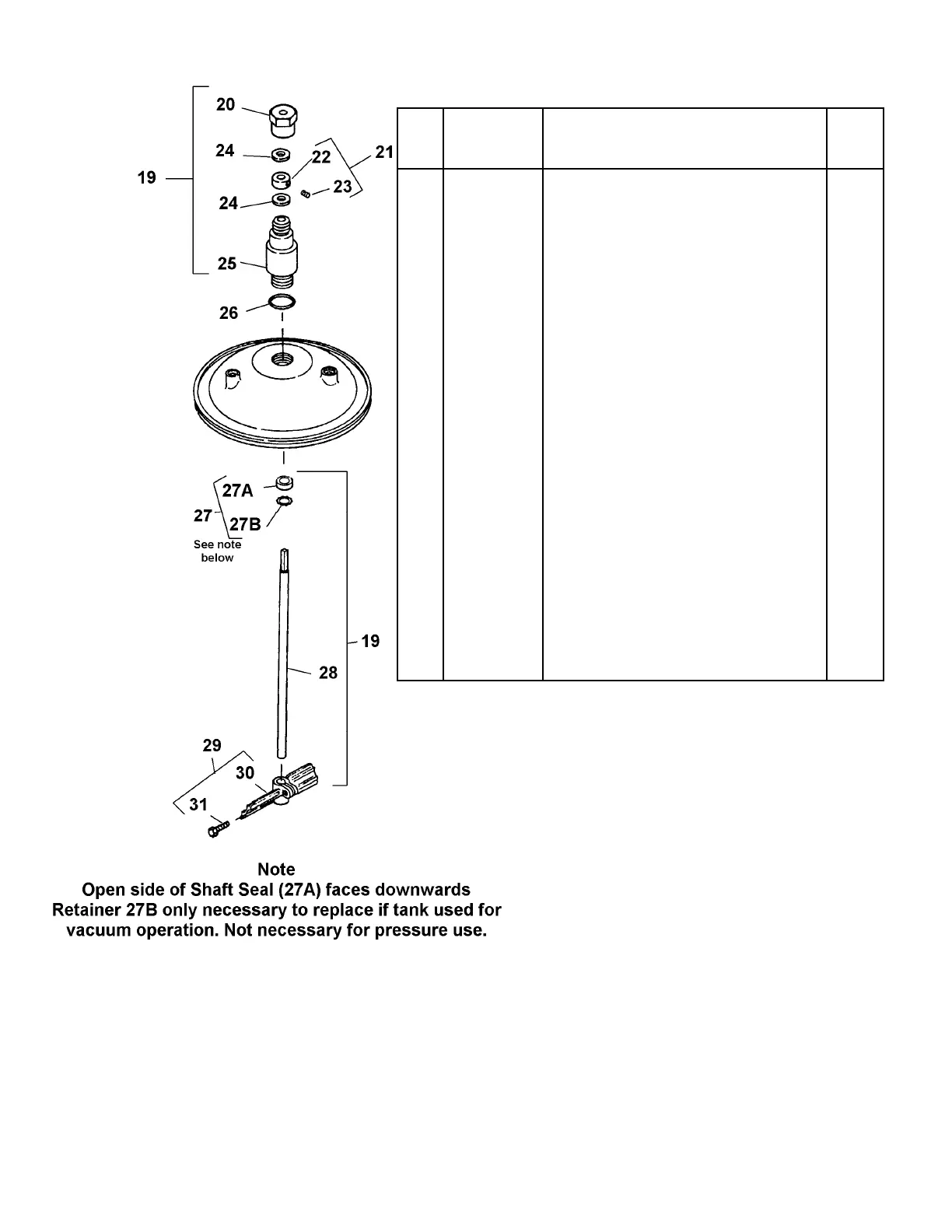

Fig 7
QMS-431, 433 and 434 AGITATOR PARTS LIST
Ref.
No.
Part No. Description No of
Parts
Req.
19 QMS-431-CE Agitator Assembly 8L (includes items 20 to 31) 1
QMS-433-CE Agitator Assembly 40L 1
QMS-434-CE Agitator Assembly 60L 1
20 QMS-46 Retaining Nut 1
21 QMS-447 Thrust Collar Kit (includes items 22 and 23) 1
22 — Thrust Collar 1
♦23
— Set Screws (5/16” - 18 x 3/8”) 1
24 KK-5049 Thrust Washer Kit (includes 2 Washers) 1
25 QMS-407 Bearing Assembly 1
26 SSG-8184-K2 O-Ring (kit of 2) 1
27 KK-5042 Shaft Seal Kit 2
27A — Shaft Seal 1
27B — Retainer 1
28 QMS-5 Agitator Shaft for QMS-431-CE 1
QMS-7 Agitator Shaft for QMS-433-CE 1
QMS-8 Agitator Shaft for QMS-434-CE 1
29
QMS-444-CE
Agitator Paddle Kit (includes items 30 and 31) 1
QMS-434-CE 60L models has 2 2
QMS-449-CE Agitator Paddle Kit for 8L QMS-431-CE
30 — Agitator Paddle 1
♦31
—
Hex Socket head Cap Screw (5/16” x 1-1/4”,
stainless Steel)
1
♦
Purchase locally
