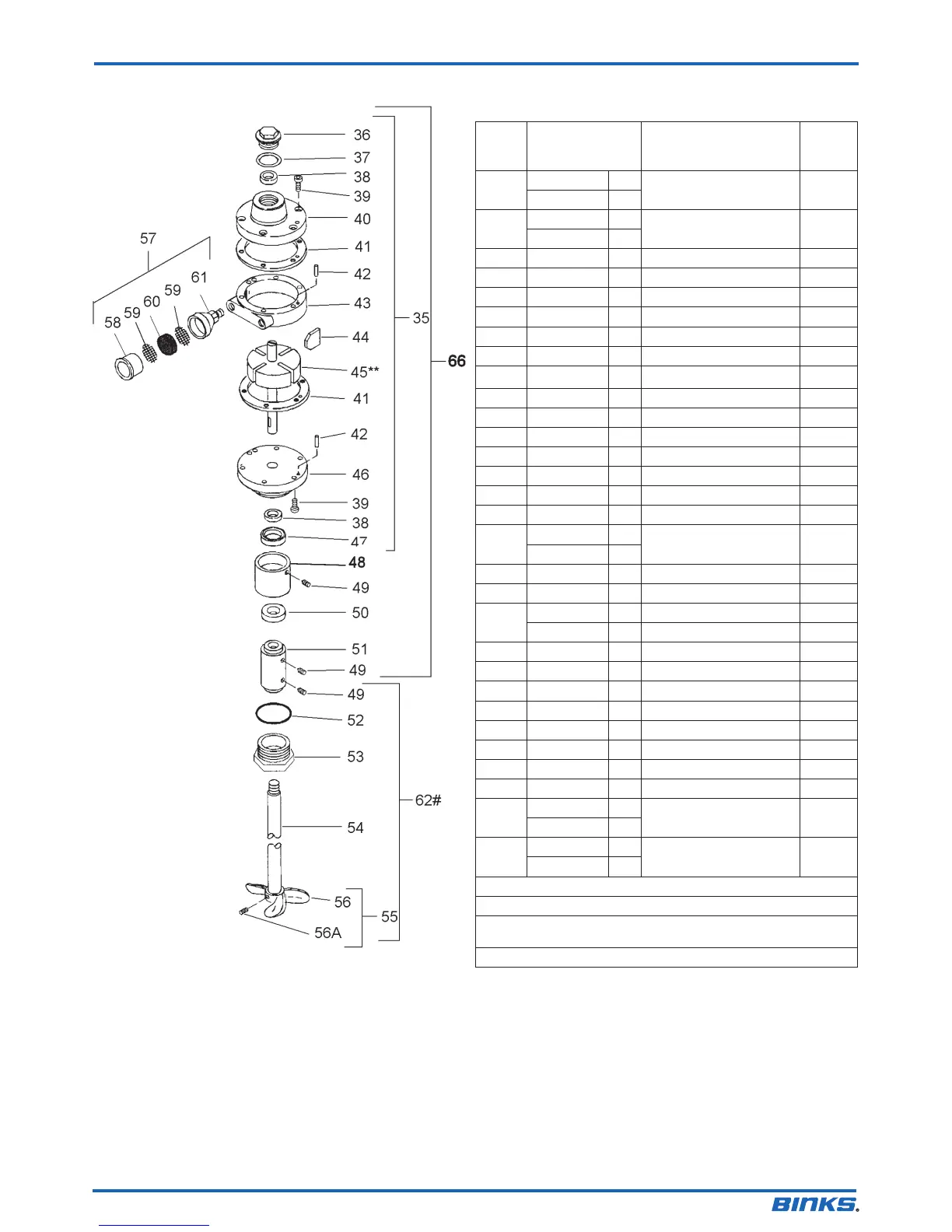

Open face of seal
(50) faces downward
Optional propeller
available
FIG. 8
PT-427-CE, PT-418-CE, PT-419-CE & PT-428-CE
PARTS LIST
Ref.
No.
Replacement
Part No.
Description
Ind.
Parts
Req'd.
* 35
PT-410 83C
Air Motor Assembly 1
QMS-455 83Z
36
QS-190 83C
End Cap 1
PT-65 83Z
* 37 ——– End Cap Gasket 1
38 PT-58 Bearing 1
39 ——– Screw (1/4”-28 x 1/2”) 12
* 40 ——– Front Plate 1
* 41 PT-59-1-K10 End Plate Gasket 2
42 QS-189-1-K10 Dowel Pin (Kit of 10) 4
• 43 ——– Body 1
* 44 ——– Vane 4
• ** 45 ——– Rotor Assembly 1
• 46 ——– End Plate 1
47 PT-56 Shaft Seal 1
48 PT-50 Air Motor Adaptor 1
49 ——– Set Screw (1/4”-20 x 1/4”) 4
50 KK-5041 Seal Assembly 1
51
QMG-441 83C
Shaft Coupling Kit
(includes No 49)
1
QMS-453 83Z
52 SSG-8096-K5 “O” Ring (Kit of 5) 1
53 PT-70 Adaptor Nut 1
54
QMG-56 83C Shaft 1
QMS-73 83Z Shaft SS 1
55 QMS-448-CE Propeller Assy 1
56 ——– Propeller 1
56A ——– Set Screw (1/4”-20 x 3/8” S.S) 1
57 350-401 Mufer Assembly 1
58 ——– Body 1
◊ 59 ——– Screen 2
◊ * 60 ——– Felt 1
61 ——– Cap 1
# 62
PT-428-CE 83C
Agitator Shaft Kit 1
PT-419-CE 83Z
66
PT-418-CE 83C
Air Motor & Adaptor 1
PT-427-CE 83Z
* Parts included in KK-5001-1 Air Motor Repair Kit
• Parts included in (35) PT-410/QMS-455 Air Motor Assembly
◊ Ref. No. (59) 2 ea. & Ref. No. (60) 4 ea. Included in KK-5006 Strainer Screen
& Felt kit
** Not available separately, order (35) PT-410/QMS-455
