W2022ax and W2044ax are supplied without power supply. If
you wish to power the units via PoE, use a 28 watt 802.3at
PoE injector for W2044ax.
For W2022ax a PoE injector according to 802.3af is sufcient.
In its ex-works state, your device acts as a DHCP client and dynamically has an
IP address assigned if you are operating a DHCP server within your network.
If that is not the case, directly connect your device to the conguration PC and log in
at the IP address 192.168.0.252 using the login name admin and the password admin.
You can take your access point into operation in a number of different ways:
Wireless LAN Controller:You can take the access point into operation with the
wizard-supported WLAN Controller.
The number of access points you can manage through the WLAN Controller as well as
information on the required licenses can be found in the data sheet of your device.
Managing the internal WLAN of your device does not require a separate license.
Upon starting the WLAN Controller Wizard you will receive instructions and explanations
on the individual pages of the wizard.
Note that taking the WLAN Controller into operation disables the menu WLAN.
All WLAN conguration is now done using the WLAN Controller.
be,SDx: be.SDx allows you to manage access points comfortably. If this cloud
solution is interesting for you, please contact us.
WLAN menus: You can also congure your access point using the traditional WLAN
menus of the graphical user interface.
You can nd a manual with instructions on advanced
conguration here:
https://www.bintec-elmeg.com/en/downloads/
!
Ways of conguration
Scope of Supply
• bintec W2022ax / W2044ax
• Dowels and screws for wall mounting
• Installation poster
• Security information
LEDs
LED Status Color Information
STATUS off No power supply connected.
Error if other LEDs are lit.
on (ashing) green Normal operation
on (static) red Failure
on (ashing) red Management communication error
LAN off No LAN
on (static) red 100 Mbit/s active
on (ashing) red 100 Mbit/s data trafc
on (static) yellow 1000 Mbit/s active
on (ashing) yellow 1000 Mbit/s data trafc
on (static) green 2500 Mbit/s active
on (ashing) green 2500 Mbit/s data trafc
WLAN 1/2 off Radio module and/or all assigned
SSIDs deactivated
on (slow blinking) green SSID active, no client is connected
on (fast blinking) green SSID active, one or more clients
authenticated
on (ashing) green SSID active, one or more clients
authenticated and data trafc
Log in
Connectors
Antennas
Reset
Equipment
Info
IP address: 192.168.0.252
User name: admin
Password: admin
1 Connector for power supply
2 100/1000/2500 Base-T Ethernet interface
If you do not use Power over Ethernet, only use a power
supply which is dened under equipment.
bintec W2022ax and W2044ax are is equipped with integrated
antennas.
You can reset the access point to the ex works state in either of two
ways: In the menu Maintenance > Factory Reset.
Through the reset button located at the side of the device.
Press the button until all LEDs are off, except for the status LED that
remains on.
Both methods delete all congurations and passwords.
• Ceiling mounting (part number: 5520000163)
• Power supply with changeable plug adapter
(part number: 5999027522)

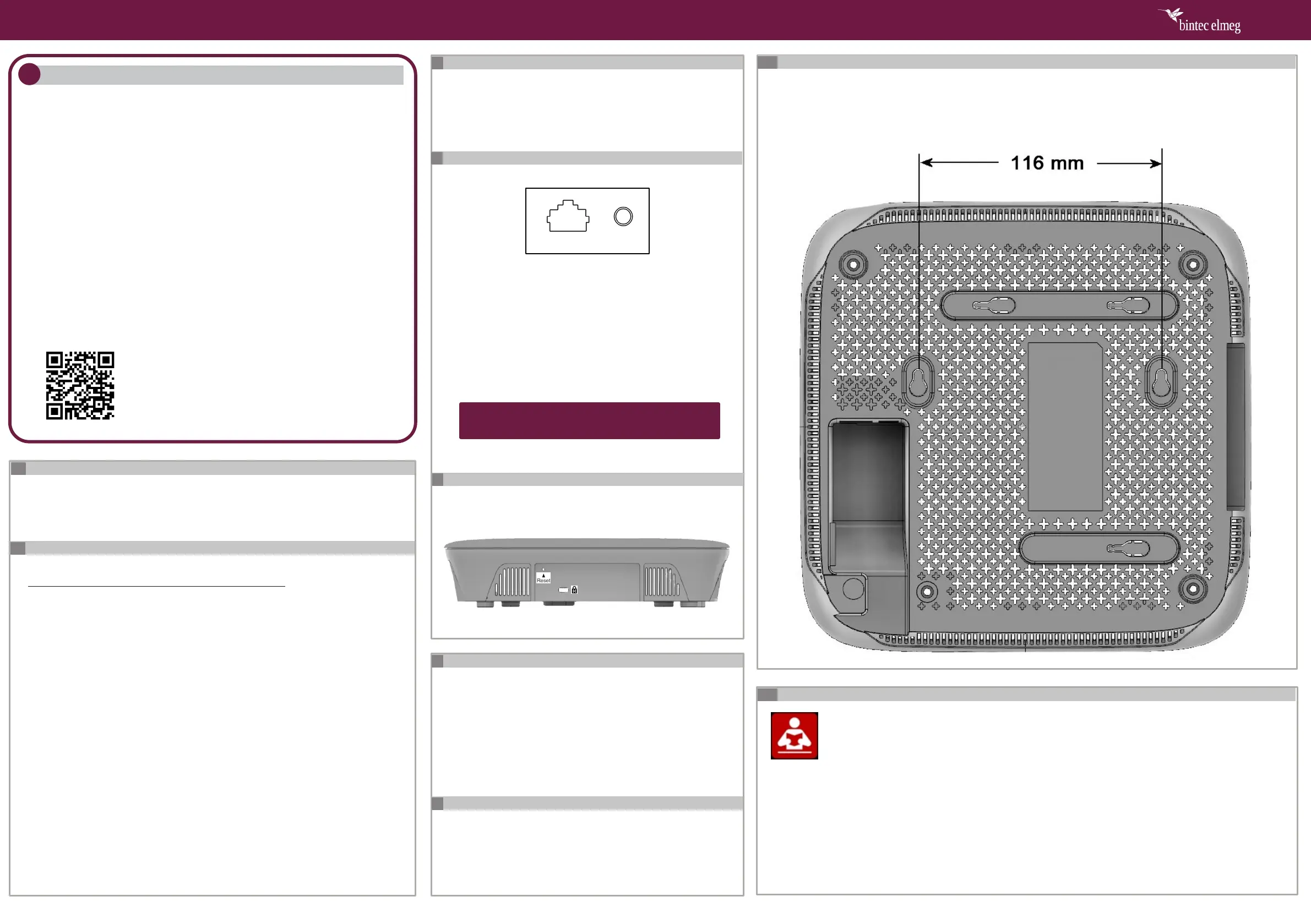

Drilling template
Dimensions
The access points have the following dimensions (W x H x D): 216 x 216 x 51 mm
The drilling holes for wall mounting have the following spacing: 116 mm
Please read the user guide before connecting the device or starting it up!
If you have any questions about your new product, please contact a local, certied retailer
for prompt technical support. Resellers have been trained by us and receive privileged support.
Further information on our support and service offers can be found on our web site at
www.bintec-elmeg.com.
This product uses free software.
The corresponding license terms and access to the source code can be found in the download area of your product
at www.bintec-elmeg.com.
Taking bintec W2022ax and W2044ax into operation
DC
LAN (PoE)
