Chapter 6: GENERAL DESCRIPTION
The MAXEMS 2000 is a battery operated pulse generator that sends electrical
impulses through electrodes to the body and reaches the underlying muscle group.
The device is provided with two controllable output channels, each independent
of each other. An electrode pair can be connected to each output channels.
The electronics of the MAXEMS 2000 create electrical impulses whose
Amplitude, Pulse Width. Pulse Rate, Contraction, Relaxation and Ramp may be
altered with the switches. Press buttons are very easy to use and the slide
cover prevents accidental changes in the setting.

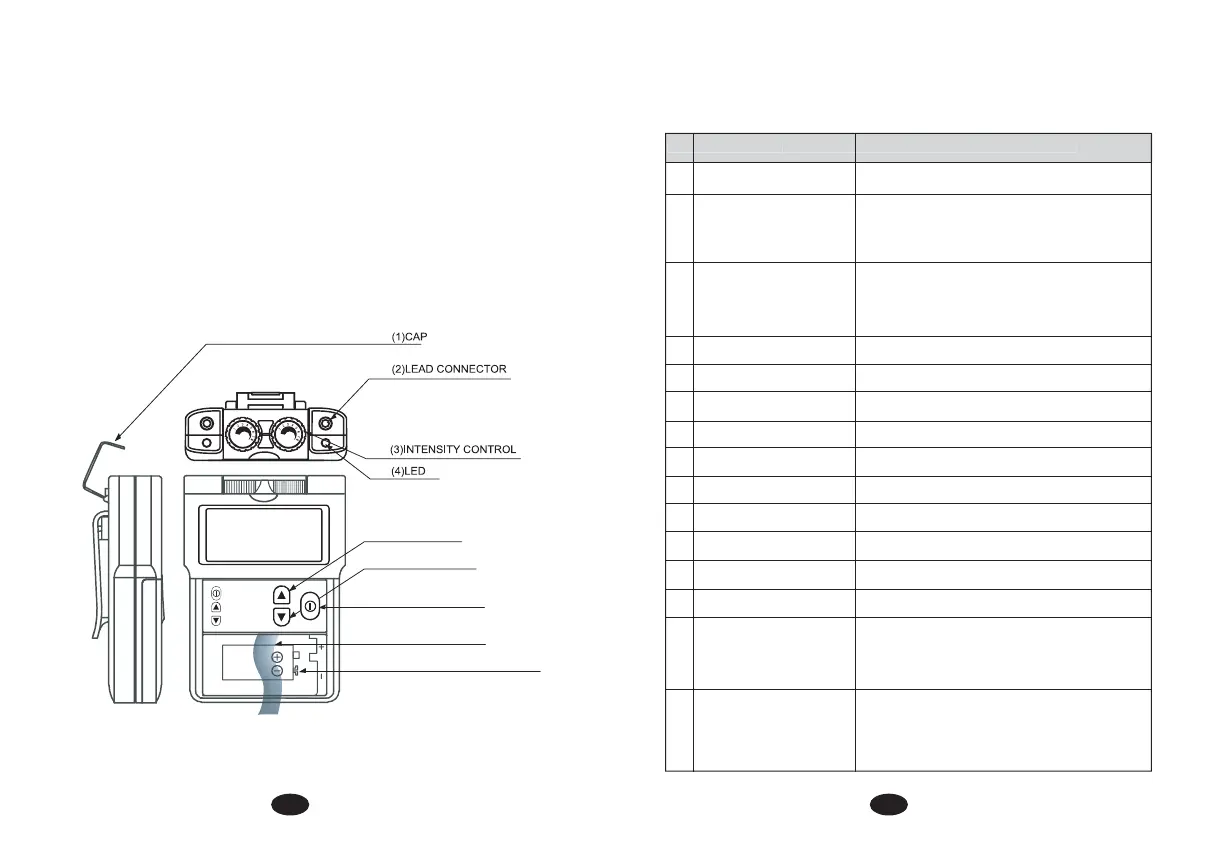

Chapter 7: CONSTRUCTION
4
Chapter 8: TECHNICAL SPECIFICATIONS
The technical specification details of MAXEMS 2000 are as follows.
MECHANISM TECHNICAL DESCRIPTION
1 Channel Dual
2 Pulse Amplitude Adjustable by intensity control knob.
Adjustable, 0~80mA peak into 500 ohm load
each channel.
3 Output Voltage Adjustable by intensity control knob
Adjustable, 0~40V peak into 500 ohm load
each channel.
4 Wave Form Asymmetrical biphasic pulse
5 Pulse Rate Adjustable, from 1~150Hz, 1Hz/step
6 Pulse Width Adjustable, from 50~250㎲, 10㎲/step
7 Contraction Time Adjustable, from 1~30 seconds, 1sec/step
8 Relaxation Time
Adjustable, from 1~45 seconds, 1sec/step
9 Ramp Time Adjustable, from 1~8 seconds, 1sec/step
10 Timer 15, 30, 45, 60 minutes
11 Power supply 9V Battery, type 6F22
12 Size 105(H) x 70(W) x 24(T) mm
13 Weight 130 grams with battery
14 Operating Condition Temperature: 0~40℃
Relative Humidity: 30%~75%
Atmosphere Pressure: 700Hpa~1060Hpa
15 Remark There maybe up to a ±5% tolerance of
parameters and ±10% tolerance of
Amplitude & Voltage.
5
ME
C
HAN
IS
M TE
C
HNI
C
AL DE
SC
RIPTI
O
N
Select Menu
Menu Up
Menu Down
(5)MENU UP
(6)MENU DOWN
(7)SELECT MENU
(8)
(9)
BATTERY STRIP
BATTERY COMPARTMENT
