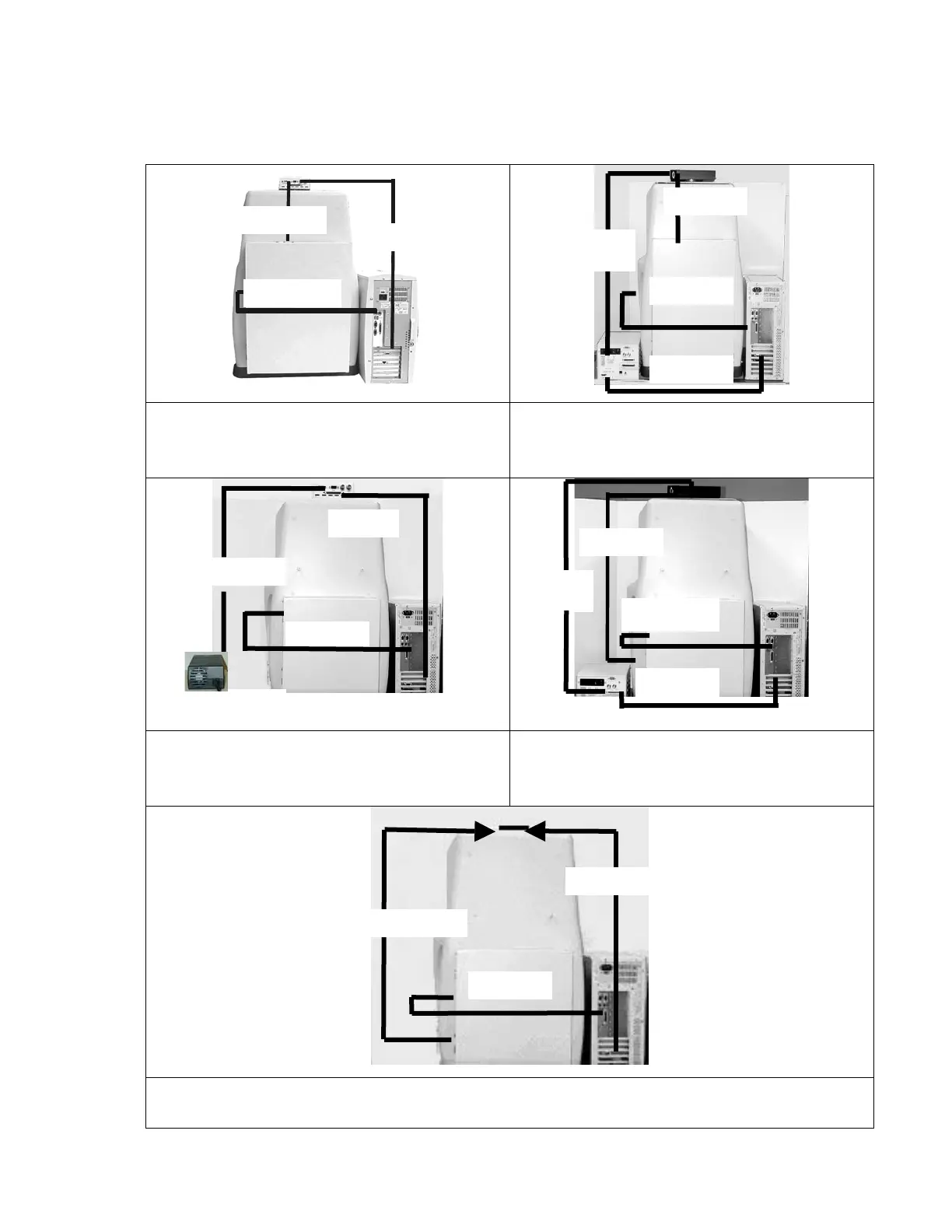

3. With both Serial or USB and AIA cables connected, your system will appear as
shown in one of the figures 3.18 a~e below:
:
Figure 3.18a
VersaDoc 1000, 3000 and 4000 Systems under
Serial # xxxBR300
Figure 3.18b
VersaDoc 5000 System under Serial # xxxBR300
Figure 3.18c
VersaDoc 3000 Systems starting Serial # xxxBR300
Figure 3.18d
VersaDoc 5000 System starting Serial # xxxBR300
Figure 3.18e
VersaDoc 1000 and 4000 Systems starting Serial # xxxBR300
AIA Cable
Power Cable
Serial/USB
Control
Cable
Fan Cable
Serial/USB
Power Supply
AIA Cable
Camera Power Cable
Serial/USB
AIA Cable
Power Cable
AIA Cable
Serial/USB
Fan Cable
Serial/USB
AIA Cable
Control
Cable
