User's Manual • 3-22
5. Remove filter #1 from its packaging and check that it is clean, free of dust,
fingerprints and scratches. If the filter is dirty it should be cleaned with the materials
provided in the lens and filter cleaning kit.
6. Holding the filter by the numbered tab with the number in the correct orientation,
carefully slide the filter into the open filter wheel position.
7. Repeat steps 4-5 for the remaining filters (#2, #3, #4)
8. Replace the filter wheel cover and hand-tighten both captive thumbscrews.
9. Close the main door firmly. The filter wheel will automatically reset to the home
position and is now ready for operation.
NOTE: The above procedure can also be used for the installation of custom filters.

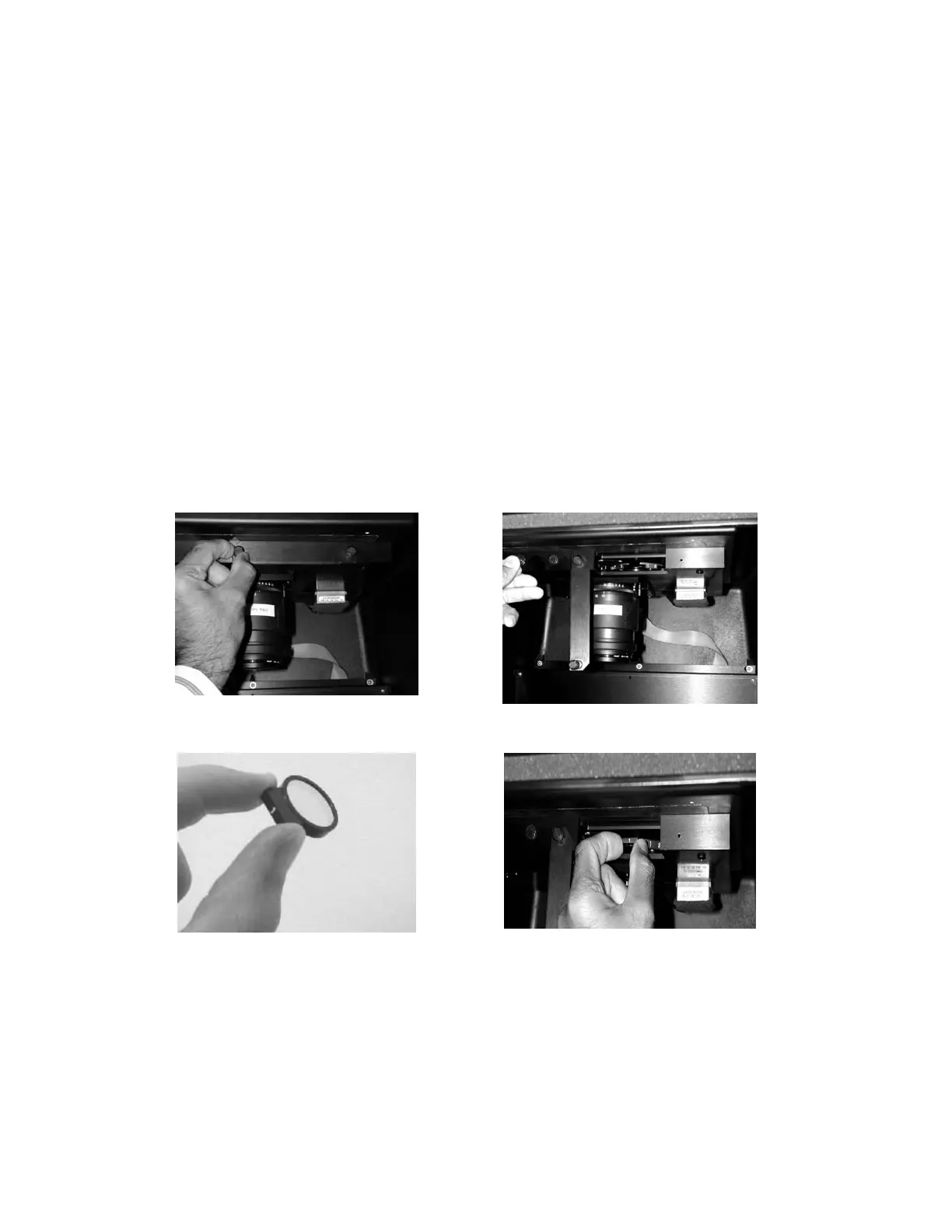

Open filter wheel access panel and
rotate it downward as shown
Advance to position 1
Unpack and carefully install filter 1
Make sure that filter 1 is all the way
in its slot and positioned straight.
Figure 3.19
