BIO UV UV30 - Parts List; Product Dimensions

BIO-UV
Copyright BIO-UV 03/07/08
7
Parts List
N° Qty Reference Designation
1 1 UI-1-005 A Top
2 1 UI-1-010 Body
3 2 UI-1-015 Sleeve
4 1 UI-1-017 Sleeve purge
5 1 UI-1-018 B Bottom
6 1 UI-1-023 Purge plug
7 1 UI-1-024 Terminal
8 1 UI-2-004 Support Guide
9 1 UI-2-008 Plug 14x
10 1 UI-2-009 Plug 14
11 1 UI-3-004 Quartz tube
12 1 UI-3-008 UV-C lamp
13 1 UI-4-004 Tip
14 1 UI-4-005 O-ring joint
15 1 UI-4-007 Washer
16 1 UI-4-009 Stainless steel nut
17 1 UI-5-002 Ballast
18 1 UI-5-003 Switch
19 1 UI-5-004 Padding
20 1 UI-5-005 Lamp operating indicator light
21 1 UI-5-071 Socket
22 1 UI-6-004 Cover

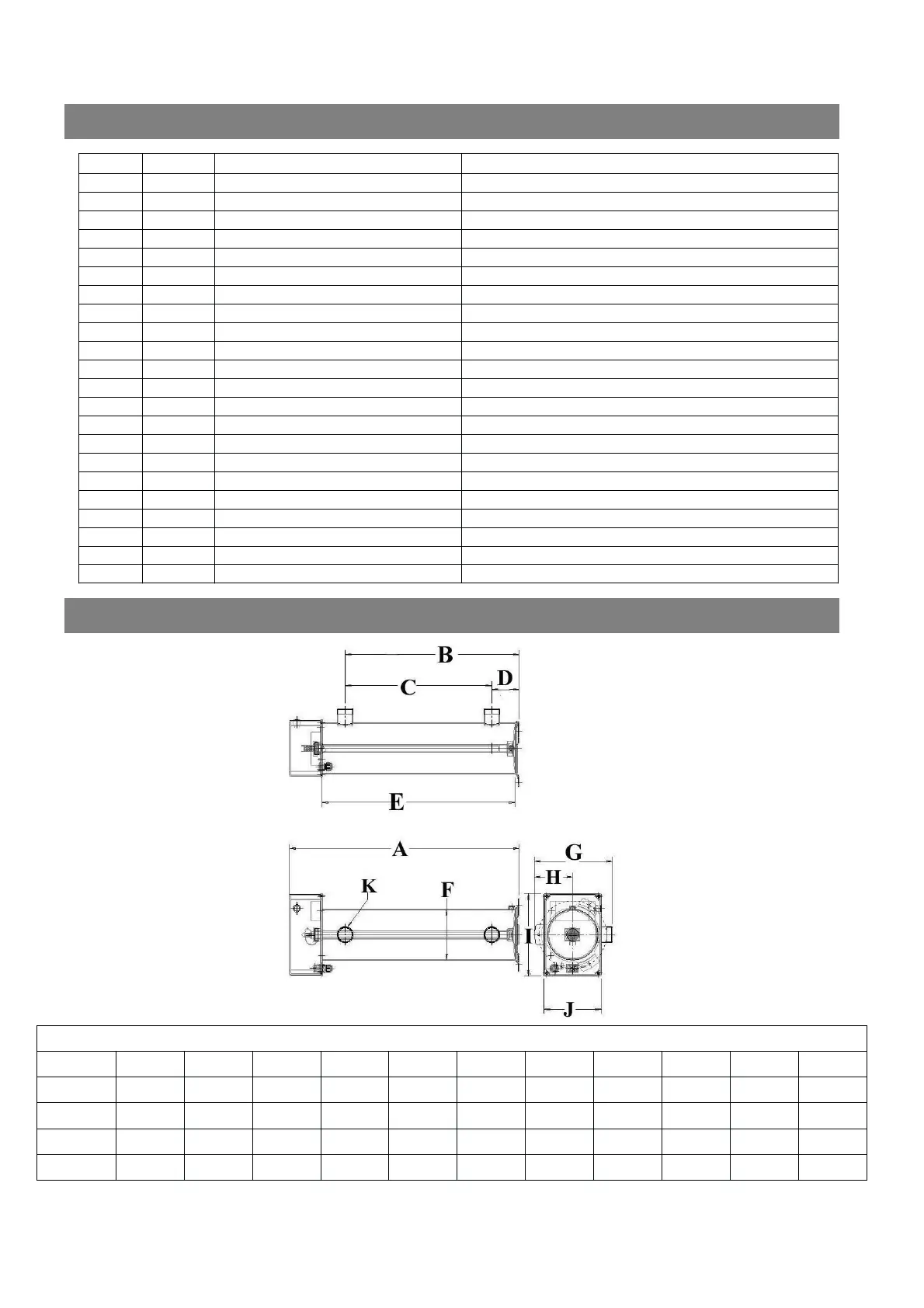

Dimensions
DIMENSIONS OF THE UV-RANGE Sterilizers in mm (except K)
Type A B C D E F G H I J K
UV 10
424 256 173 83 313 154 235 115 249 174 1"1/2
UV 20
694 525 443 83 583 154 235 115 249 174 1"1/2
UV 30
934 721.5 689 83 829 154 235 115 249 174 2"
UV 40
1194 1026 943 83 1083 154 235 115 249 174 2"1/2
