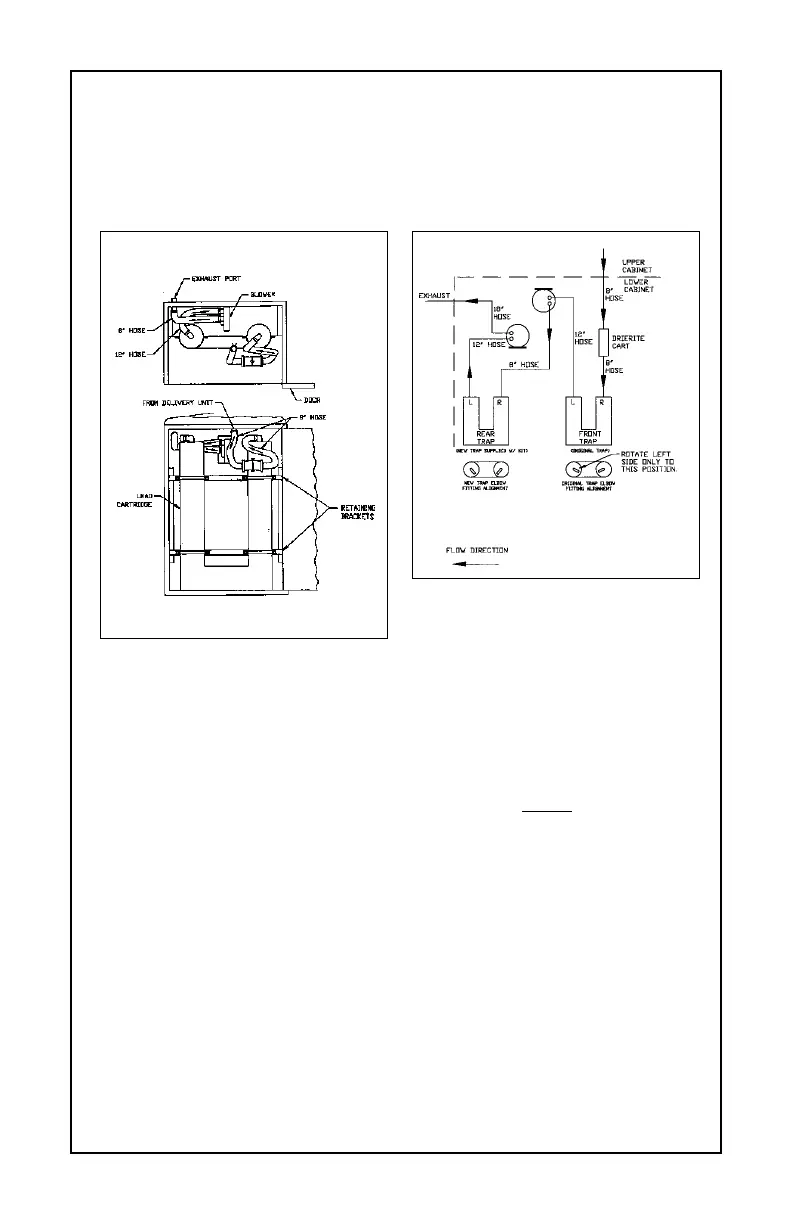

(See Figure 7 for Single Cartridge or Figure 8 for Double-Cartridge.)
It is recommended that the Charcoal Cartridge Xenon Trap (#127-318 and
127-319) be replaced once every 12 months. To maximize trap effective-
ness follow these guidelines:
After the patient has completed the washout, do not leave the system
running for more than 10 seconds.
Monitor the lower blower motor. It should be set at a maximum of 50-60
and only increased when a patient needs assistance during
washout.
Change the moisture absorber after every study!
Do not leave the Pulmonex in position #3 when not in use.
*40&(*1*2863(*)96*
Tools Required: Screwdriver, pliers and/or vice grip.
Open the door to the trap and, using pliers, disconnect hose clamps
and tubes connected to the top of the lead cartridge.
Using the screwdriver, remove the eight screws from the metal bands
holding the cartridge in place.
– 9–
Figure 7
Figure 8
