RL39 - Repair instructions for changing the frame
Version 1.0, last revised 03/2016
14/58

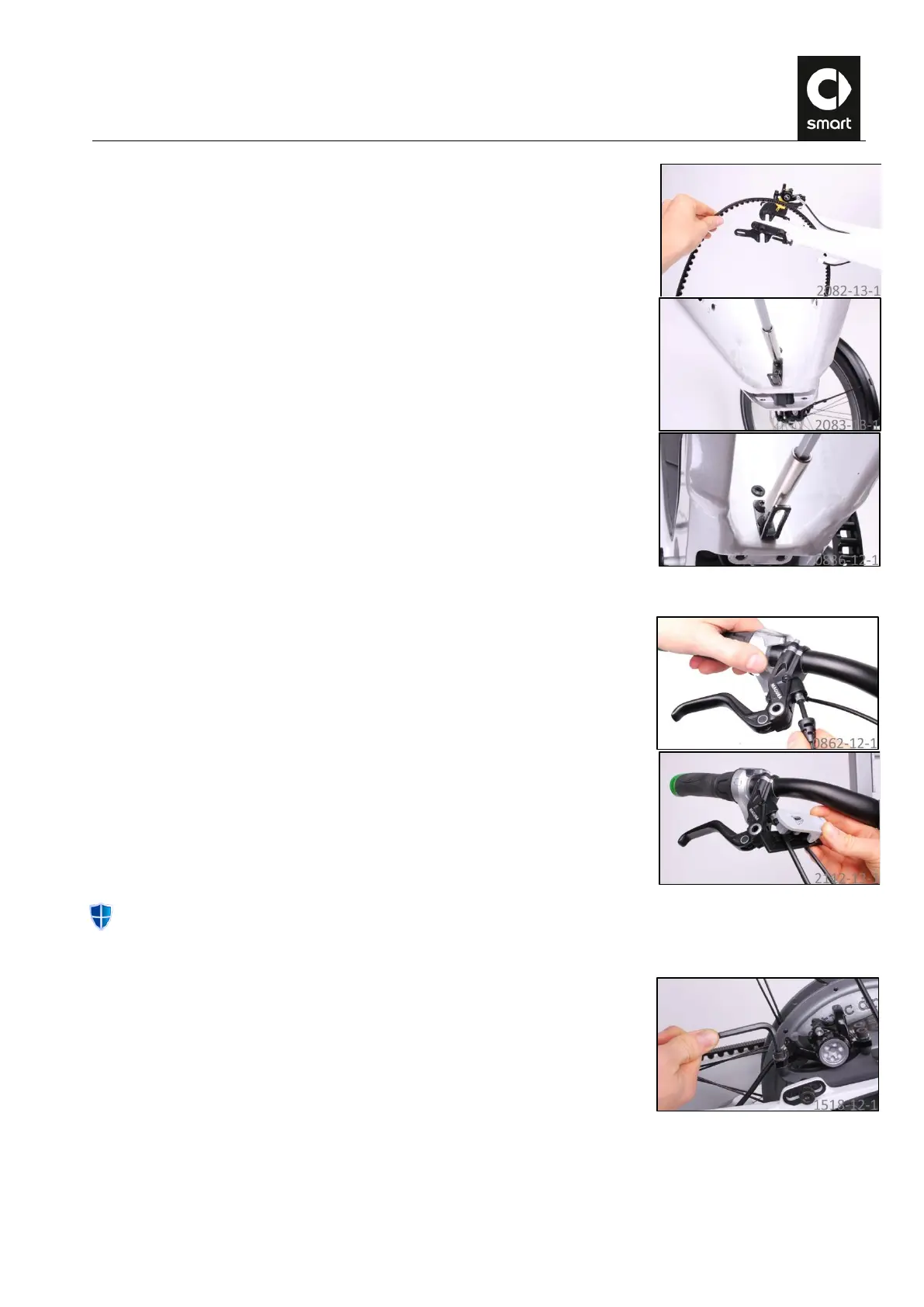

Take the belt off the frame.
Undo the two bolts on the frame with a T25 Torx wrench and remove the
mudguard connection from the frame.
L. Removing the right brake line
Push the protective cap on the line connection of the right brake lever a few
centimeters along the brake line.
Use the cable cutter to snip off the brake line of the old brake at the brake lever.
In doing so, shorten the brake line as little as necessary.
Do not pull the brake lever while the brake system is open.
M. Removing the rear brake caliper
Undo the brake caliper retaining bolts using a size 5 Allen wrench and remove
the brake caliper.
