RL39 - Repair instructions for changing the frame
Version 1.0, last revised 03/2016
16/58

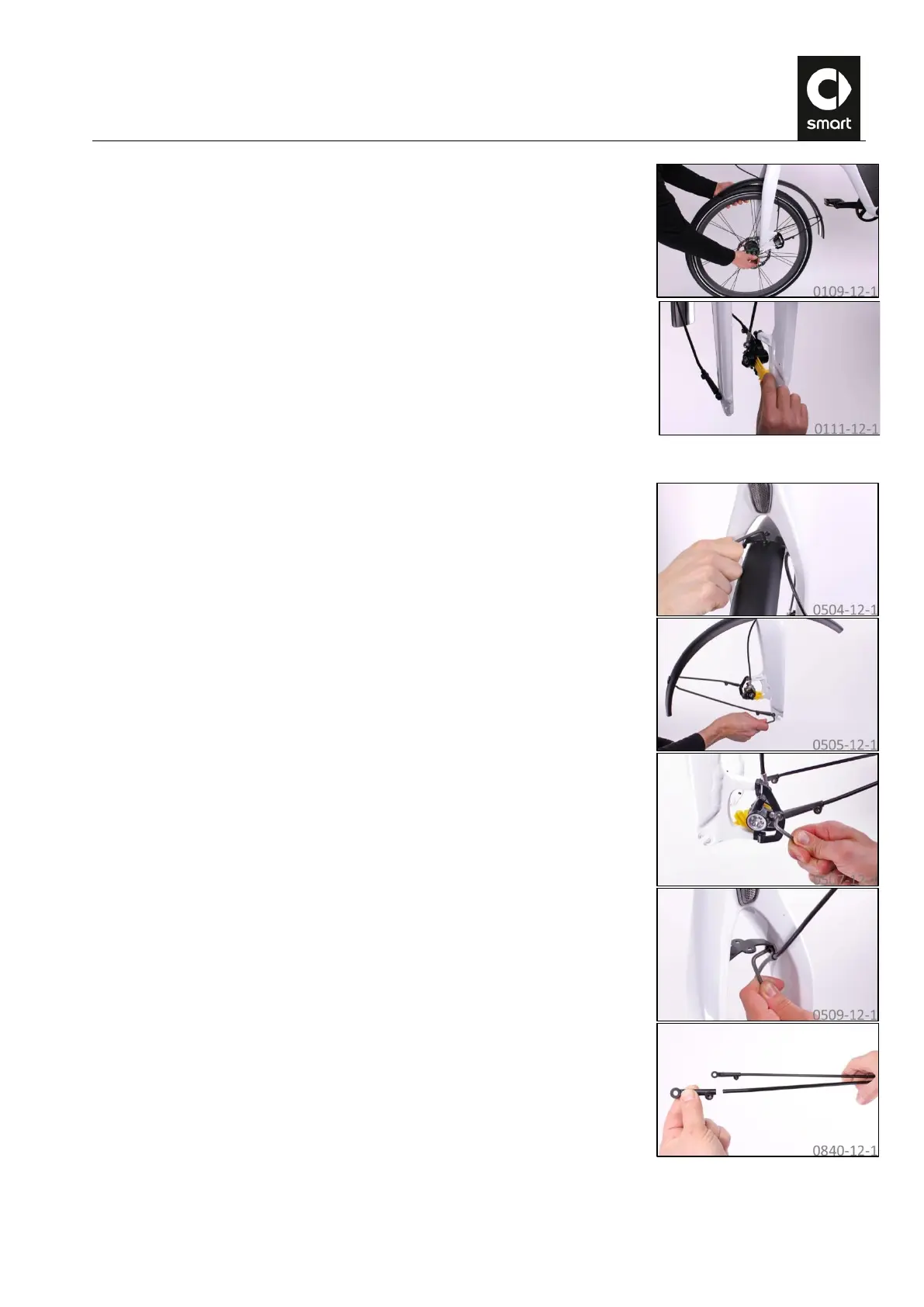

Open the quick-release lever and remove the front wheel from the fork.
Push the transport lock between the brake pads.
P. Removing the front mudguard
Remove the mudguard and the mudguard bracket from the fork with the aid of
a T25 angled Torx wrench and a size 8 open end wrench.
Only when converting from a rigid fork to a suspension fork:
Remove the mudguard stay adapters from the mudguard stays. To do this, undo
the bolts using a T20 Torx wrench.
