RL39 - Repair instructions for changing the frame
Version 1.0, last revised 03/2016
17/58

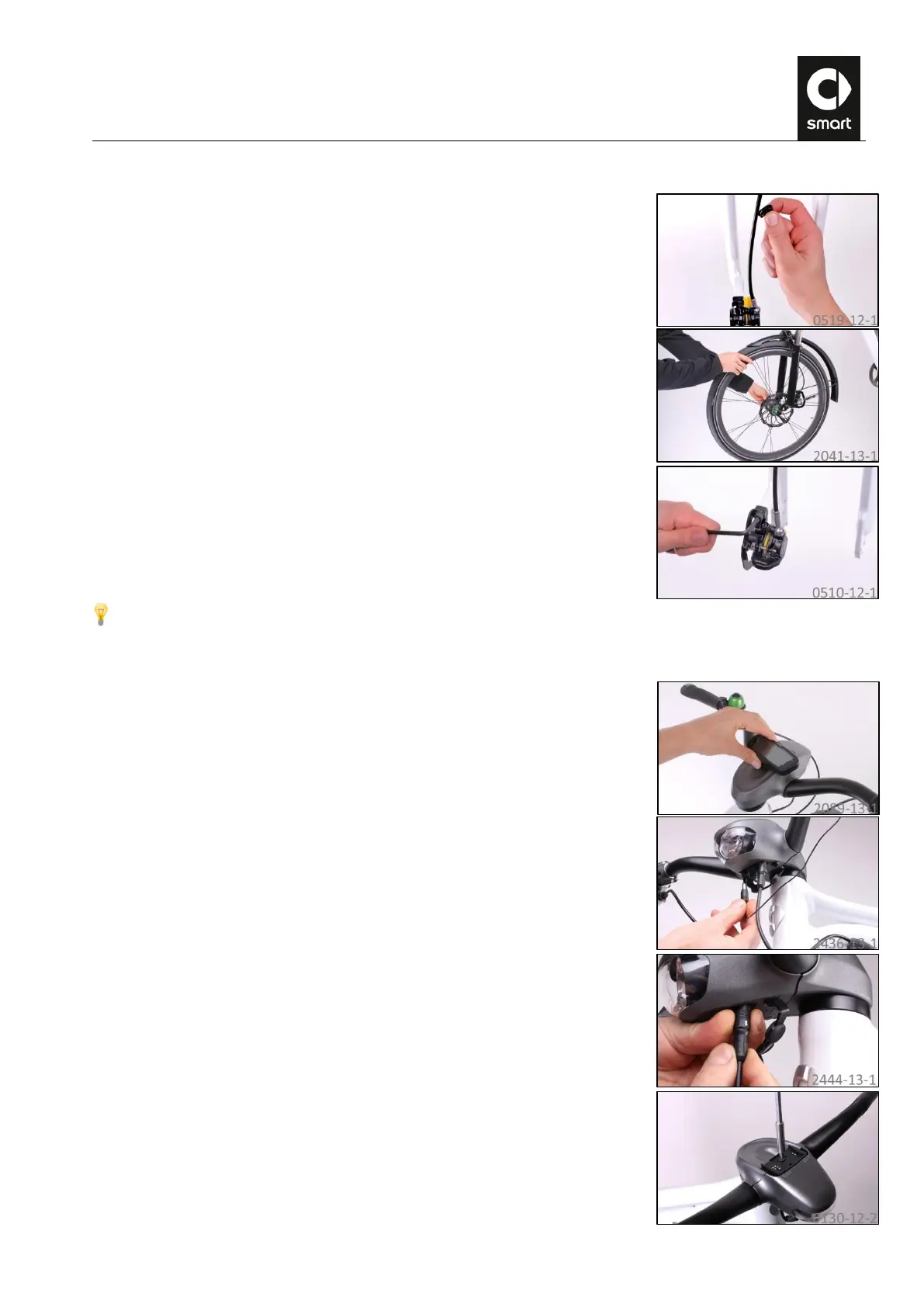

Q. Removing the front brake caliper
59.
Pull the brake line guide off the brake line. (Also when converting from a rigid
fork to a suspension fork!)
CAUTION: When replacing a suspension fork: Cut the cable tie on the fork bridge
using side cutting pliers.
60.
Undo the brake caliper retaining bolts using a size 5 Allen wrench and remove
the brake caliper.
Return the removed rigid fork to the customer in case it is reinstalled at a later
date. You can use the original box of the suspension fork for this purpose.
R. Removing the stem trim
61.
Remove the control console from its cradle.
62.
Unplug the connector of the brake sensor cable from the jack underneath the
stem assembly.
63.
Carefully unplug the data cable from the jack in the control console cradle.
64.
Unscrew the bolt in the control console cradle using a T20 Torx wrench.
