BionX Smart - Removing the Stem; Pull Bowden Cable Out

RL39 - Repair instructions for changing the frame
Version 1.0, last revised 03/2016
18/58

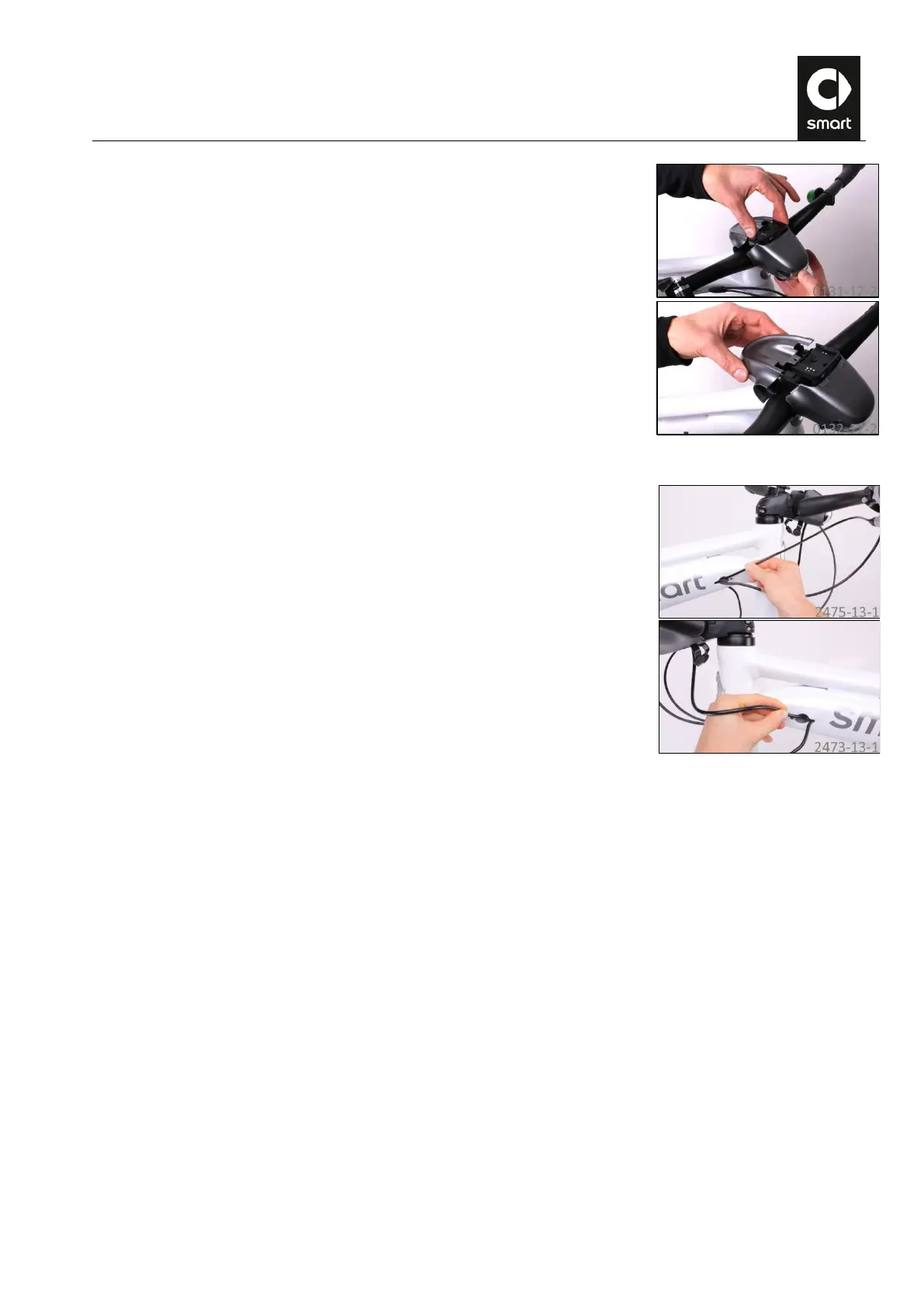

S. Removing the stem
67.
When replacing the frame/fork: Pull the Bowden cable with its sheath out of the
frame.
68.
Pull the light cable out of the frame.
65.
Carefully push the control console cradle approx. 1 cm upwards out of the
housing by pressing carefully from below between the cable jacks while
simultaneously pulling up on the control console cradle.
66.
Pull the plastic cover off the stem towards the rear.
