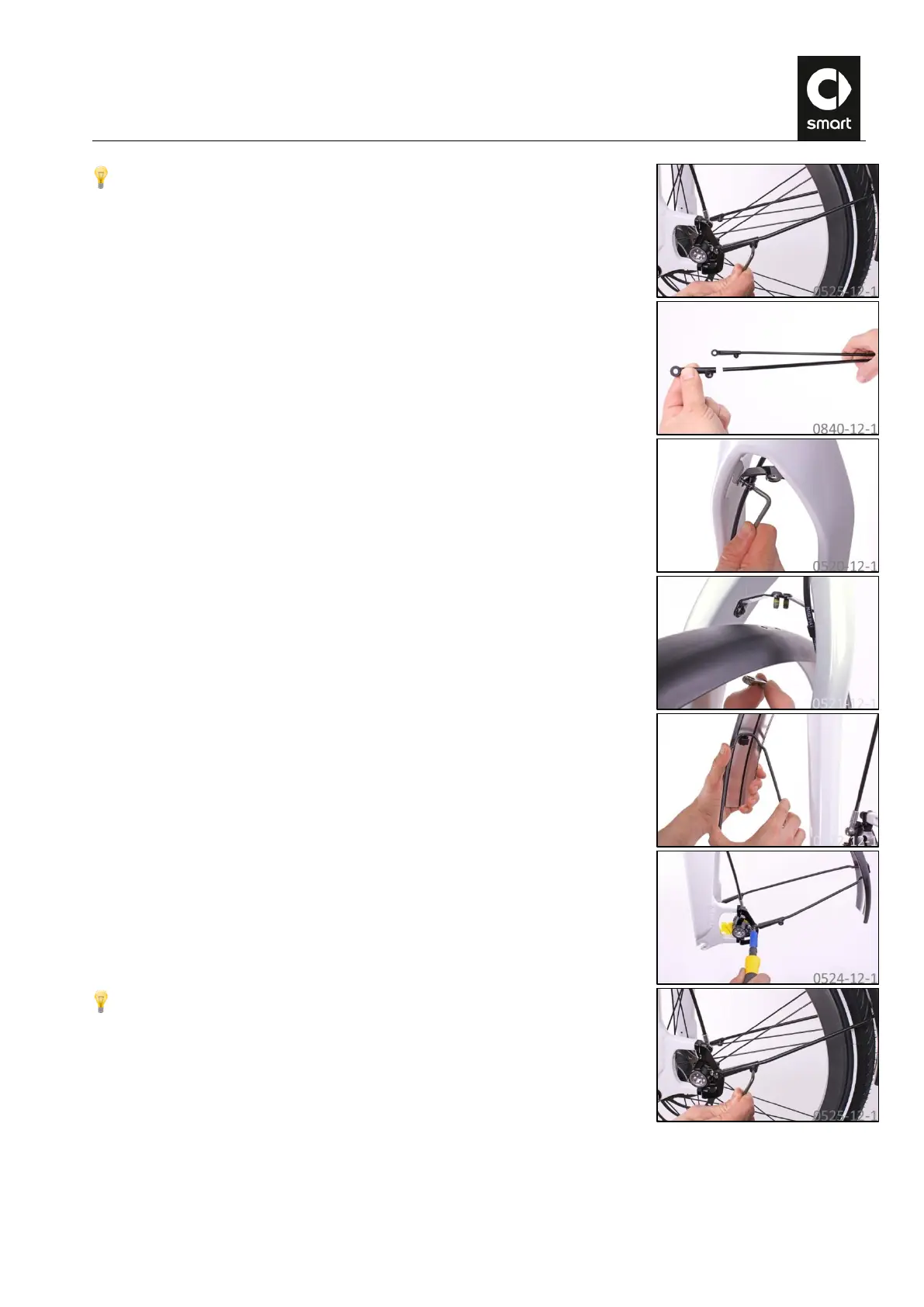

BionX Smart - Page 28

RL39 - Repair instructions for changing the frame
Version 1.0, last revised 03/2016
28/58
A T20 Torx wrench can be used to slacken the clamping bolts on the mudguard
stays. The mudguard stays can be adjusted to fit the wheel by pulling them out
or pushing them in. Tighten the clamping bolts to a torque of 1 Nm.
111.
Rigid fork: Push the mudguard stay adapters onto the ends of the mudguard stays
and secure them with a T20 Torx wrench and a torque of 1 Nm.
112.
Rigid fork: Install the brake line guide and the mudguard bracket on the fork with a
T25 angled Torx wrench and a torque of 3 Nm.
113.
Rigid fork: Install the mudguard on the mudguard bracket with a T25 angled Torx
wrench, a size 10 open end wrench and a torque of 3 Nm.
114.
Rigid fork: Hook the mudguard stays in the mudguard.
115.
Rigid fork: Fasten the mudguard stays to the right leg of the fork and to the
mudguard bracket on the brake caliper. Tighten the bolts with a T25 Torx wrench
and a torque of 3 Nm.
A T20 Torx wrench can be used to slacken the clamping bolts on the mudguard
stays. The mudguard stays can be adjusted to fit the wheel by pulling them out
or pushing them in. Tighten the clamping bolts to a torque of 1 Nm.
