RL39 - Repair instructions for changing the frame
Version 1.0, last revised 03/2016
27/58

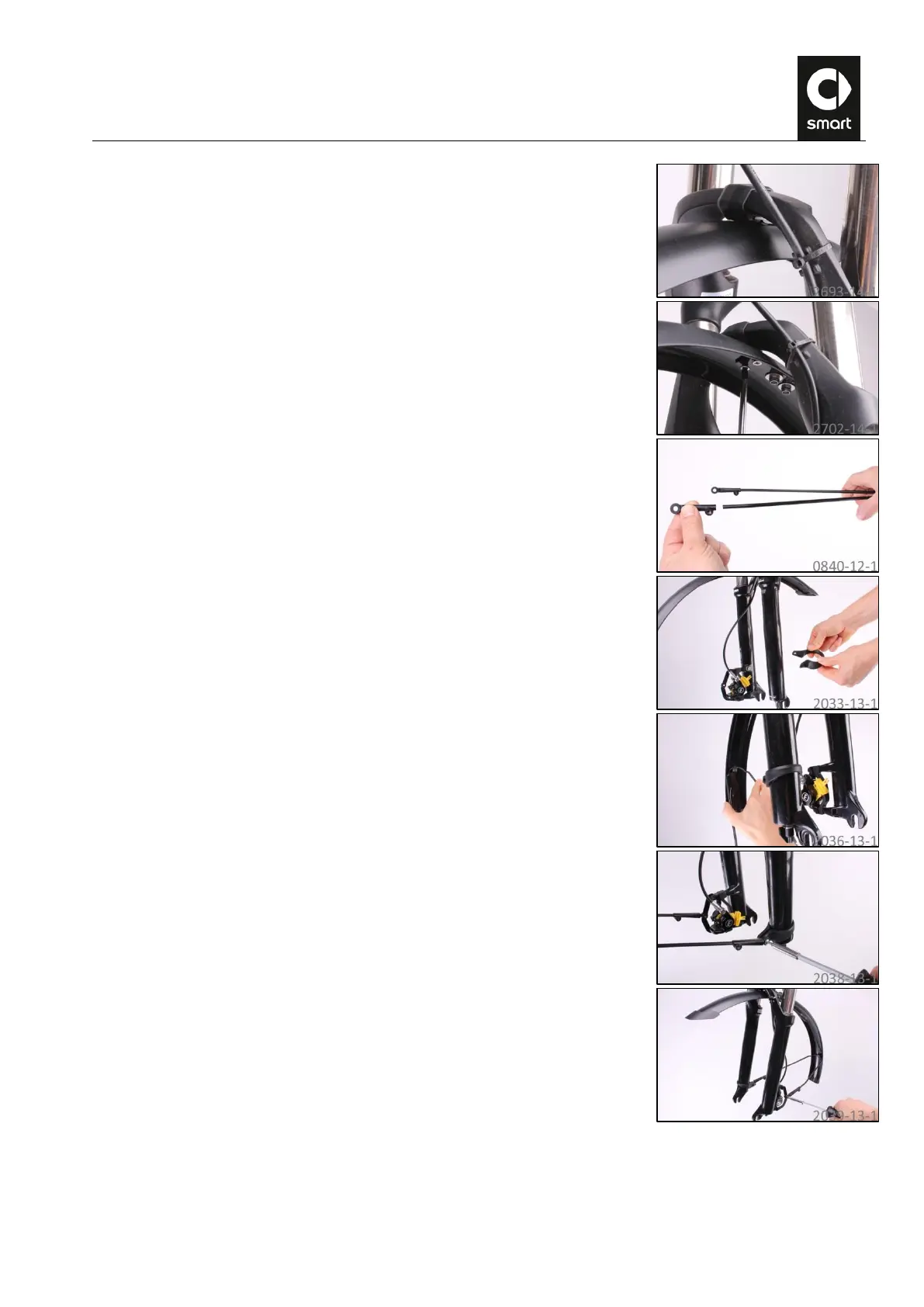

105.
Suspension fork: Hook the metal plate in the mudguard bracket. Place the plastic
plate over the holes and bolt the mudguard onto the mudguard bracket using a cross
head screwdriver.
106.
Suspension fork: Push the mudguard stay adapters onto the ends of the mudguard
stays and secure them with a T20 Torx wrench.
107.
Suspension fork: Fasten the adapter clamp on the right leg of the fork.
108.
Suspension fork: Hook the mudguard stays in the mudguard.
109.
Suspension fork: Fasten the right mudguard stay adapter to the adapter clamp with
a T20 Torx wrench and a torque of 3 Nm.
110.
Suspension fork: Fasten the left mudguard stay to the mudguard bracket on the
brake caliper. Tighten the bolts with a T25 Torx wrench and a torque of 3 Nm.
