RL39 - Repair instructions for changing the frame
Version 1.0, last revised 03/2016
30/58

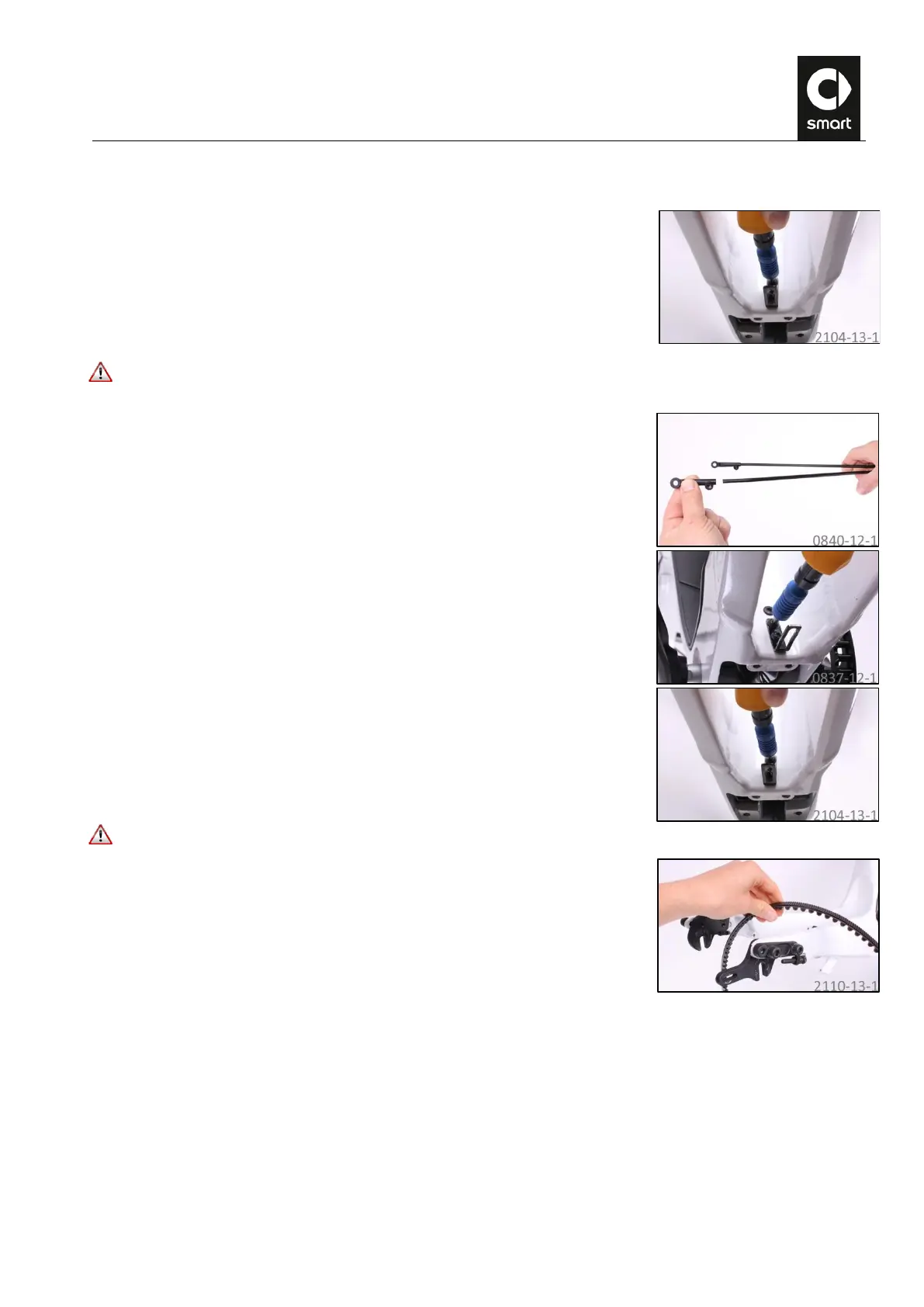

CC. Installing the rear mudguard
120.
Install the mudguard connection on the frame and tighten the two bolts to a
torque of 2 Nm using a T25 Torx wrench.
Only use genuine bolts or, if reinstalling used bolts, apply a drop of thread lock (medium strength, e.g. Loctite 243)
to the thread before reusing.
121.
Push the mudguard stay adapters onto the ends of the mudguard stays and
secure them with a T20 Torx wrench and a torque of 1 Nm.
122.
Install the mudguard connection on the frame and tighten the two bolts to a
torque of 2 Nm using a T25 Torx wrench.
Only use genuine bolts or, if reinstalling used bolts, apply a drop of thread lock
(medium strength, e.g. Loctite 243) to the thread before reusing.
123.
Hang the belt on the right rear stay.
