BionX Smart - Page 31

RL39 - Repair instructions for changing the frame
Version 1.0, last revised 03/2016
31/58
124.

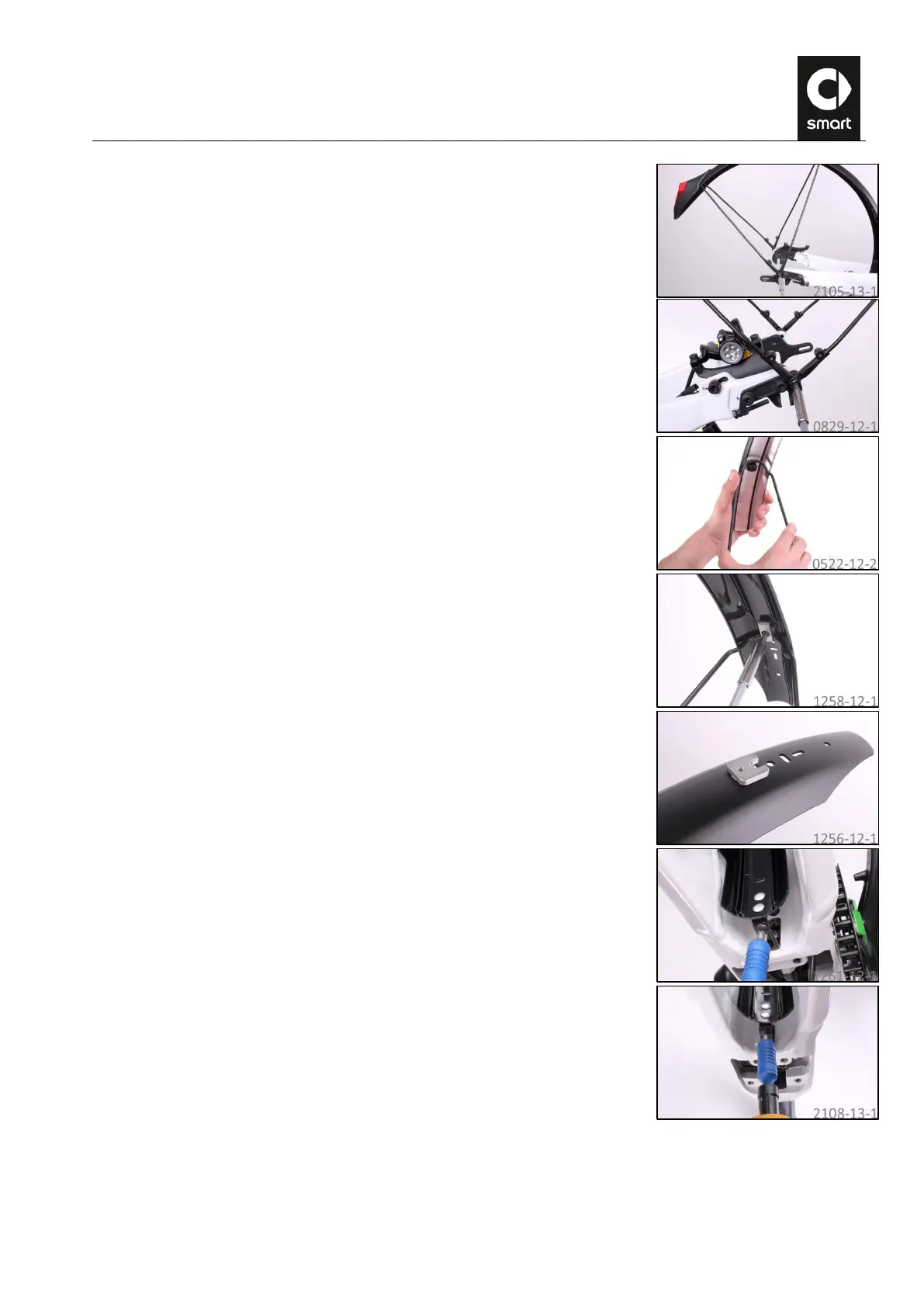

First loosely screw the mudguard stays to the dropouts with T30 Torx wrench.
125.
Attach the mudguard stay brackets to the mudguard and hook the mudguard
stays into the mudguard.
126.
Install the mudguard on the mudguard connection and tighten the bolts to a
torque of 2 Nm using a T25 Torx wrench.
