RL39 - Repair instructions for changing the frame
Version 1.0, last revised 03/2016
5/58

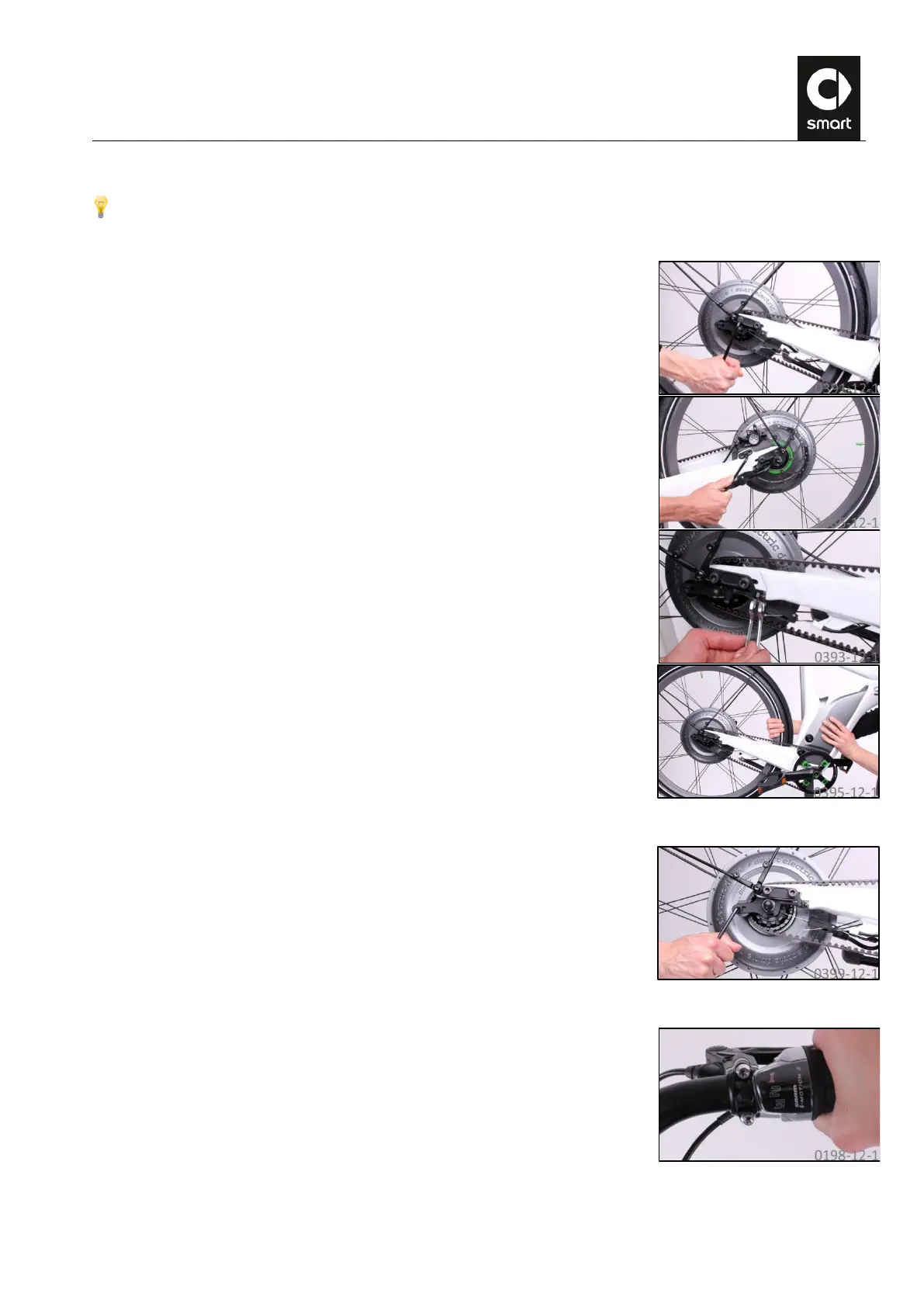

B. Reducing the belt tension
In order to allow the belt to be removed from the belt pulleys without tension, the distance between the spindle of
the bottom bracket and the rear axle must be reduced. To do this, use the horizontally adjustable dropouts of the
ebike.
Undo the bolts at the dropouts on both sides of the ebike using a size 6 Allen
wrench (2 bolts on the right, 3 bolts on the left).
First undo the nuts for axial adjustment on both sides of the ebike using a size
10 open end wrench while countering the adjusting bolt with the second size
10 open end wrench. Then loosen the adjusting bolt too.
Push the dropouts towards the front in the slot of the frame. To do this, pull the
rear wheel towards the front while bracing yourself against the frame with
your other hand.
C. Removing the belt guide
Undo the bolt of the belt guide at the right dropout using a size 5 Allen wrench
and remove it.
D. Removing the rear wheel
Turn the twist grip to 1st gear.
