RL39 - Repair instructions for changing the frame
Version 1.0, last revised 03/2016
6/58

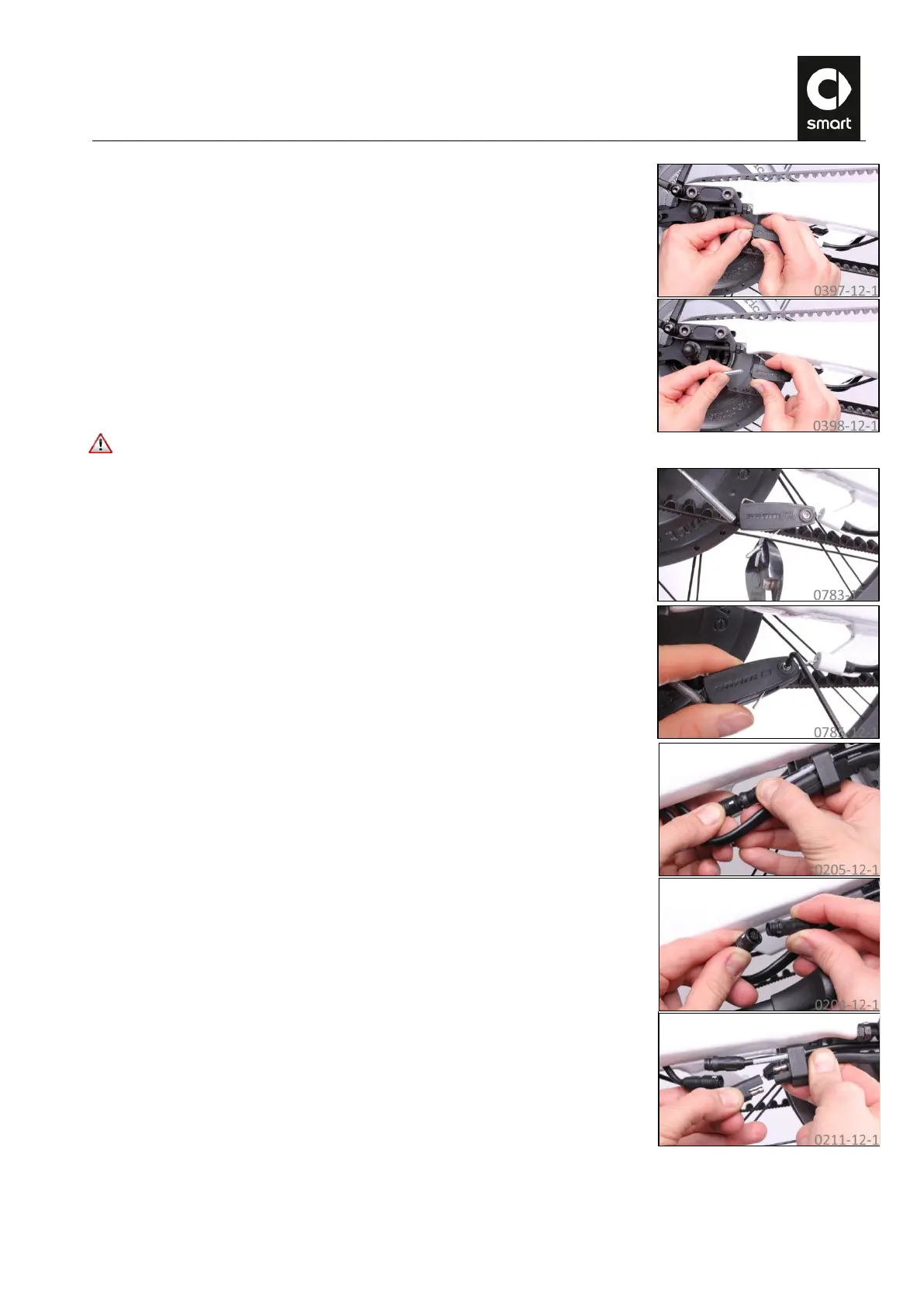

Separate the connection between the shift cable and the rear wheel hub on the
right chain stay by pressing the tab on the locating sleeve and pulling the
sleeve off the threaded element.
CAUTION: When REMOVING the rear wheel, separate the communication
connector first, and then the power connector!
Cut the end cap off the shift cable using side cutting pliers.
Loosen the grub screw using a size 2.5 Allen wrench so that the shift cable can
be pulled out of the plastic sleeve.
Disconnect the data cable (round connector) on the left chain stay from the
motor. To undo the catch of the connector, push the plastic sleeve on the jack
in the opposite direction to the printed arrow.
Disconnect the power cable (flat, oval connector) on the left chain stay from the
motor and release both cables from the cable guide.
