5
and settings so you don’t have to do any configuration to get started. Simply open the file and click
“Start” and then a window will open.
3. Setup the modules on your subject:
A. Respiration belt (RSP100C module) (Figure 5): Before laying your subject on the bed, place
the respiration sensor over his diaphragm and secure it using the belt. NOTE: The sensor and belt
can be placed over the subject’s clothes, though it is advised to remove any jackets or sweaters.
If they complain about the room being cold, we have plenty of blankets. You can verify that you
have a clear signal via the Acknowledge software, see below.

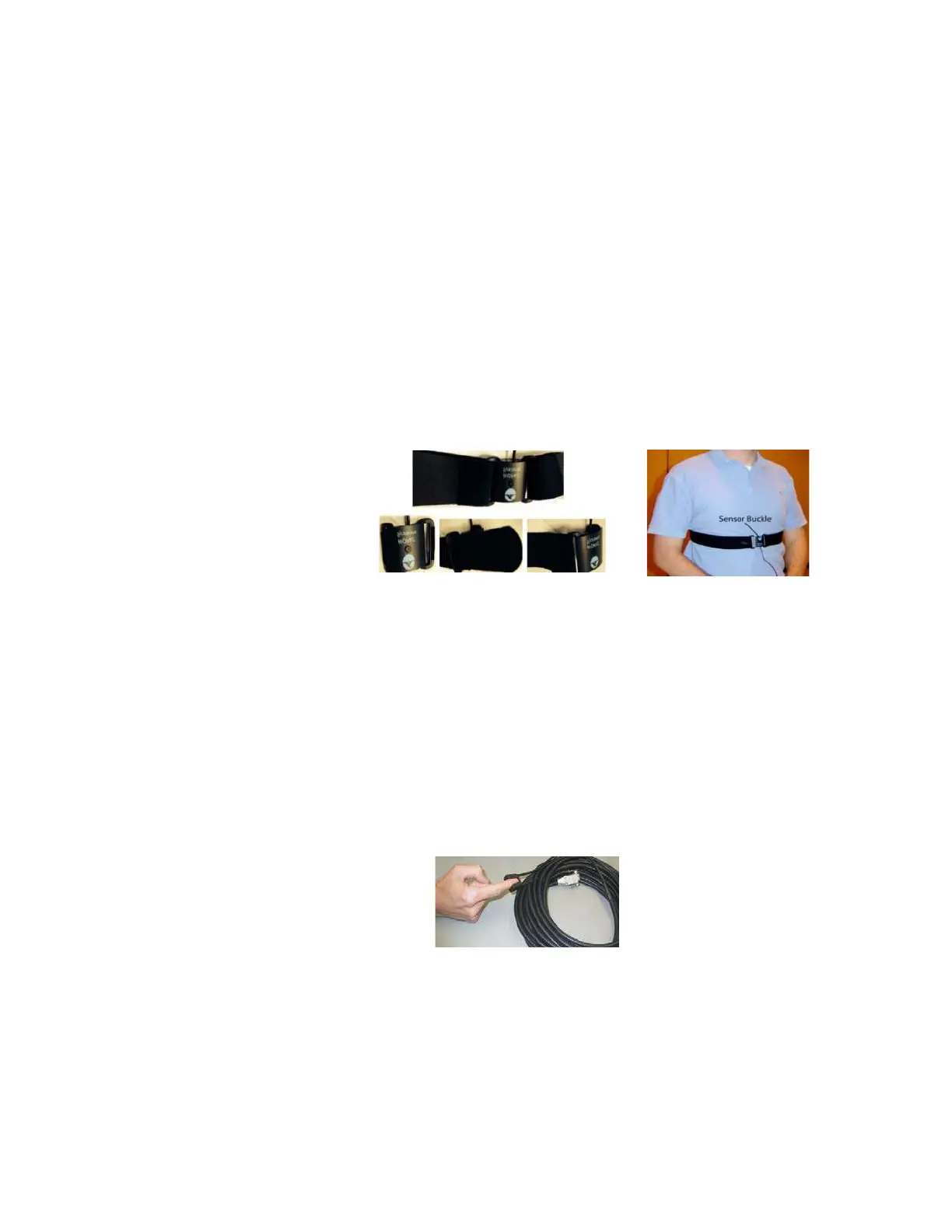

Figure 5. Respirator Belt
B.
Pulse Oximeter (Pulse Ox module): Once your subject is lying on the bed and positioned
correctly, place the pulse oximeter on his index finger (Figure. 6). It can work on any finger, but
the index finger is the easiest to place and most comfortable for the subject. Ensure the pulse
oximeter on the finger with Velcro attachment strap.
Figure 6. Pulse oximeter
