NIBP100E Quick Start 4 www.biopac.com
ADDITIONAL INFORMATION
Data Channels
Raw analog data is recorded through Analog Channel 7 on the
MP160. The HD cardiac signals use channels 8, 9, and 10. Only
up to three (3) HD signal calculations can be recorded during a
session. Each NIBP100E unit is equipped with four dip switches
on the left side panel (see image at right; the NIBP100E module
must be separated from the MP system to expose the left side
panel). These switches are numbered 1-4 (left to right) and control
channels 7, 8, 9 and 10, respectively (i.e., 1=7, 2=8, 3=9, and
4=10).
All units (HD and non-HD) will by default have the dip switch for
channel 7 set to the “on” or up position.
HD units will also have switches for channels 8, 9 and 10 in the “on” or up position by default. The NIBP100E-HD
user may choose to switch channels 8, 9, or 10 to the “off” or down position to free up those channels for other
hardware.
User Guides
Access additional support guides under the AcqKnowledge Help menu
• For detailed instructions on licenses and licensed features, setting up channels, and recording data, see the
AcqKnowledge Software Guide Setting Up Data Acquisition and Channels for NIBP100E/NIBP100E-HD.
• For additional technical specifications on the NIBP100E and NIBP100E-HD hardware, see the MP Hardware
Guide.
Accessing user guides from Help Menu in AcqKnowledge

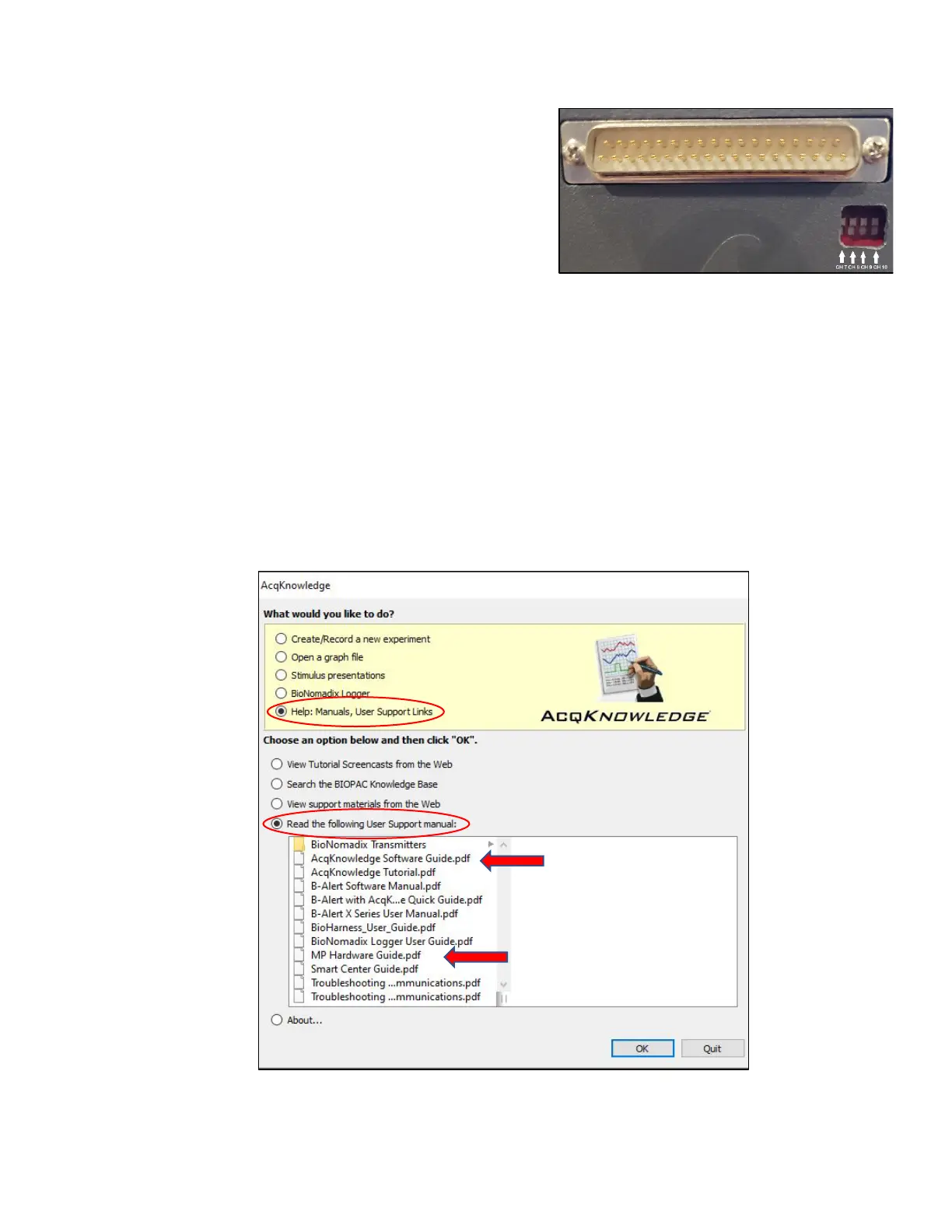

NIBP100E-HD dip switch configuration
