Motherboard Manual

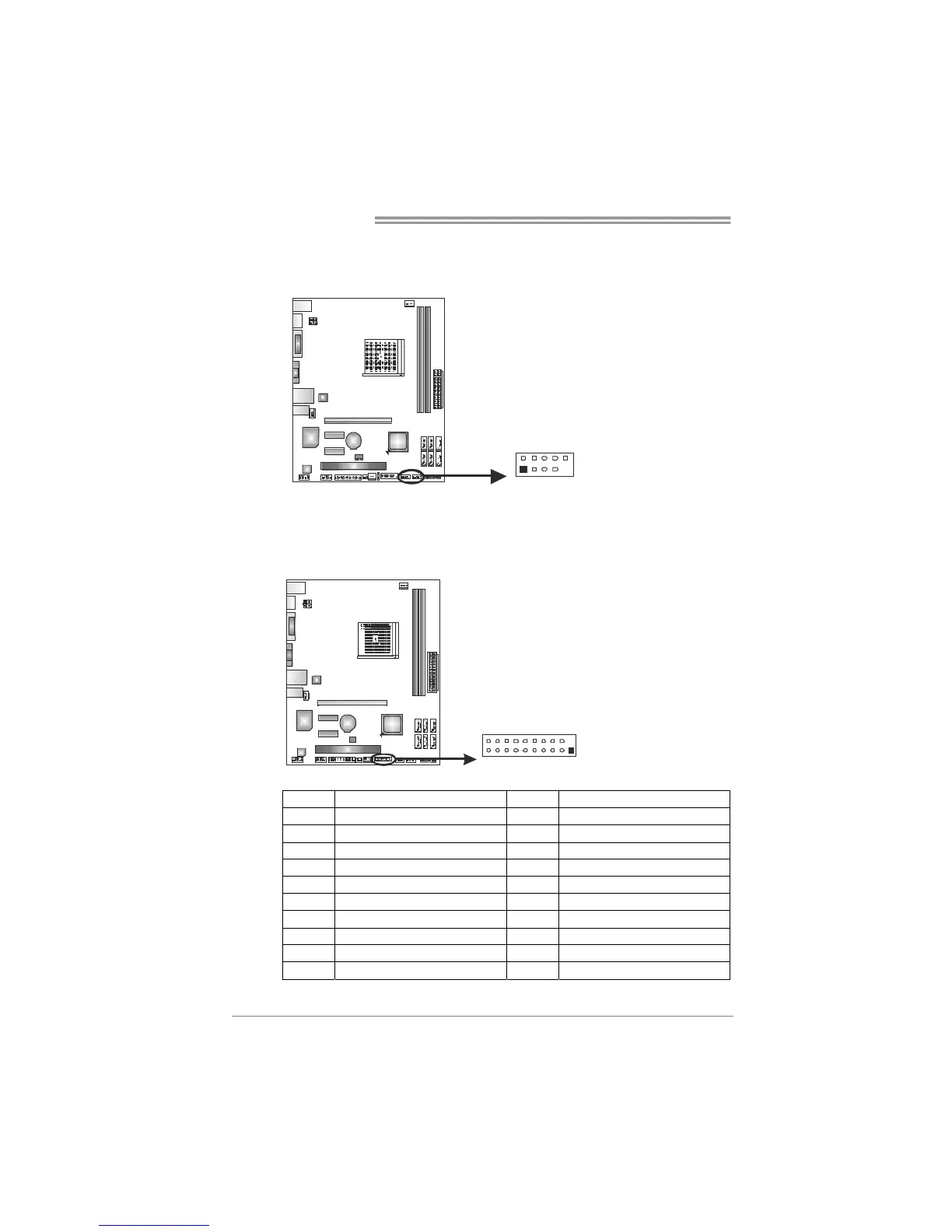

F_USB1/F_USB2: Headers for USB 2.0 Ports at Front Panel

This header allows user to connect additional USB cable on the PC front panel,

and also can be connected with internal USB devices, like USB card reader.

Assignment

1 +5V (fused)

2 +5V (fused)

3 USB-

4 USB-

5 USB+

6 USB+

7 Ground

8 Ground

9 NC

102

FUSB F_2 _USB1

10 Key

JFRONT_USB3_1: Header for USB 3.0 Ports at Front Panel (A75MH)

This header allows user to connect additional USB cable on the PC front panel,

and also can be connected with internal USB devices, like USB card reader.

2011

Pin Assignment Pin Assignment

1 VBUS0 11 D2+

2 SSRX1- 12 D2-

3 SSRX1+ 13 Ground

4 Ground 14 SSTX2+

5 SSTX1- 15 SSTX2-

6 SSTX1+ 16 Ground

7 Ground 17 SSRX2+

8 D1- 18 SSRX2-

9 D1+ 19 VBUS1

10 ID 20 Key

Biostar A75MH User Manual
