Motherboard Manual
4

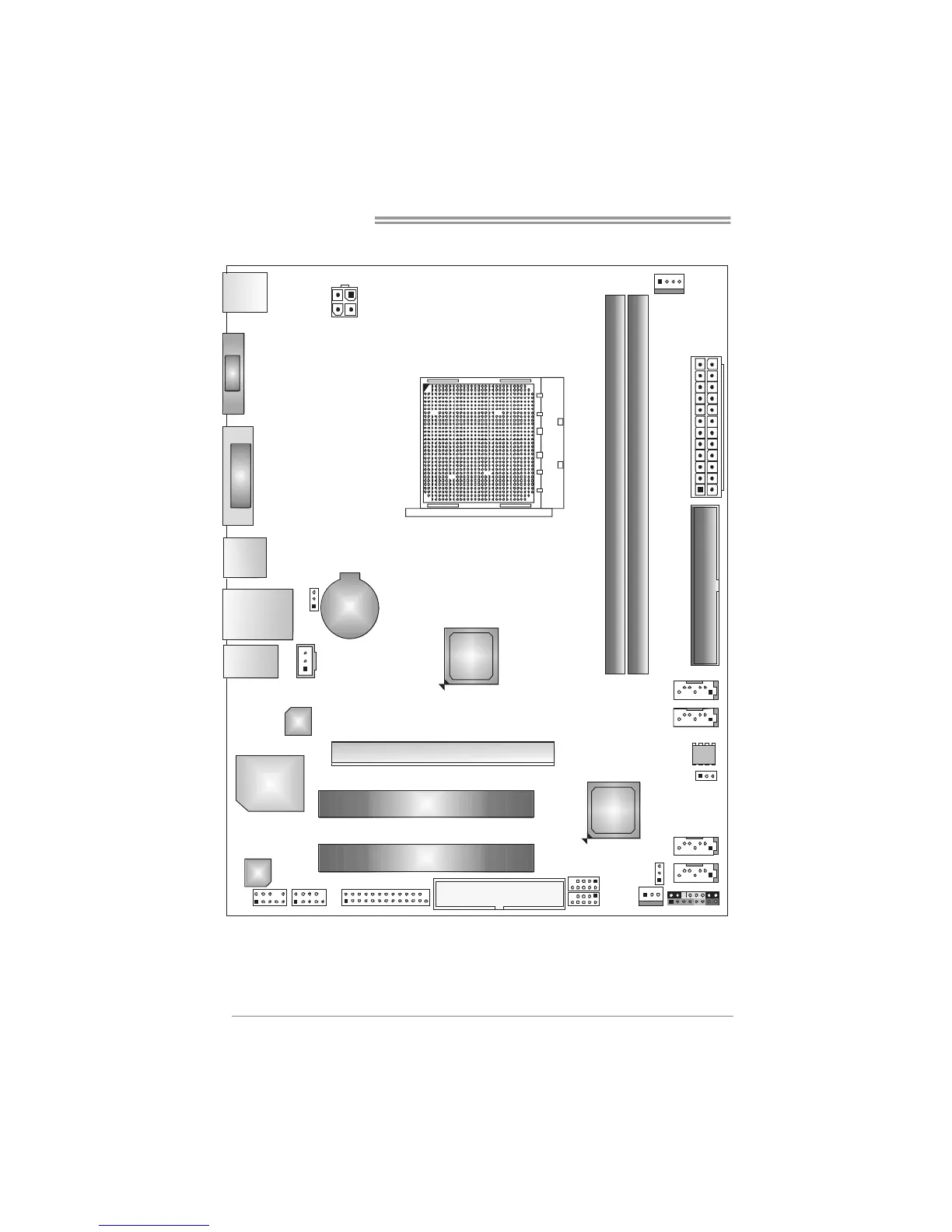

1.5 MOTHERBOARD LAYOUT
KBMS1
USB1
VGA1
DVI1
RJ45USB1
AUDIO1
BAT1
JUSBV1
JSPDIFOUT1
LAN
Super I/O
Codec
F_AUDIO1
J_COM1 J_PRINT1
FDD1
F_USB2
F_USB1
SYS_FAN1
PANEL1
JUSBV2
SATA1
SATA2
JCMO S1
BIOS
SATA3
SATA4
PCI1
PCI2
PEX16_1
IDE1
ATXPWR1
CPU_FAN1
D3_1DR A
D3_1
DR B
AMD
785G/
780L
AMD
SB710
ATXPWR2
Socket AM3
Note: represents the 1
st
pin.
