Motherboard Manual
12

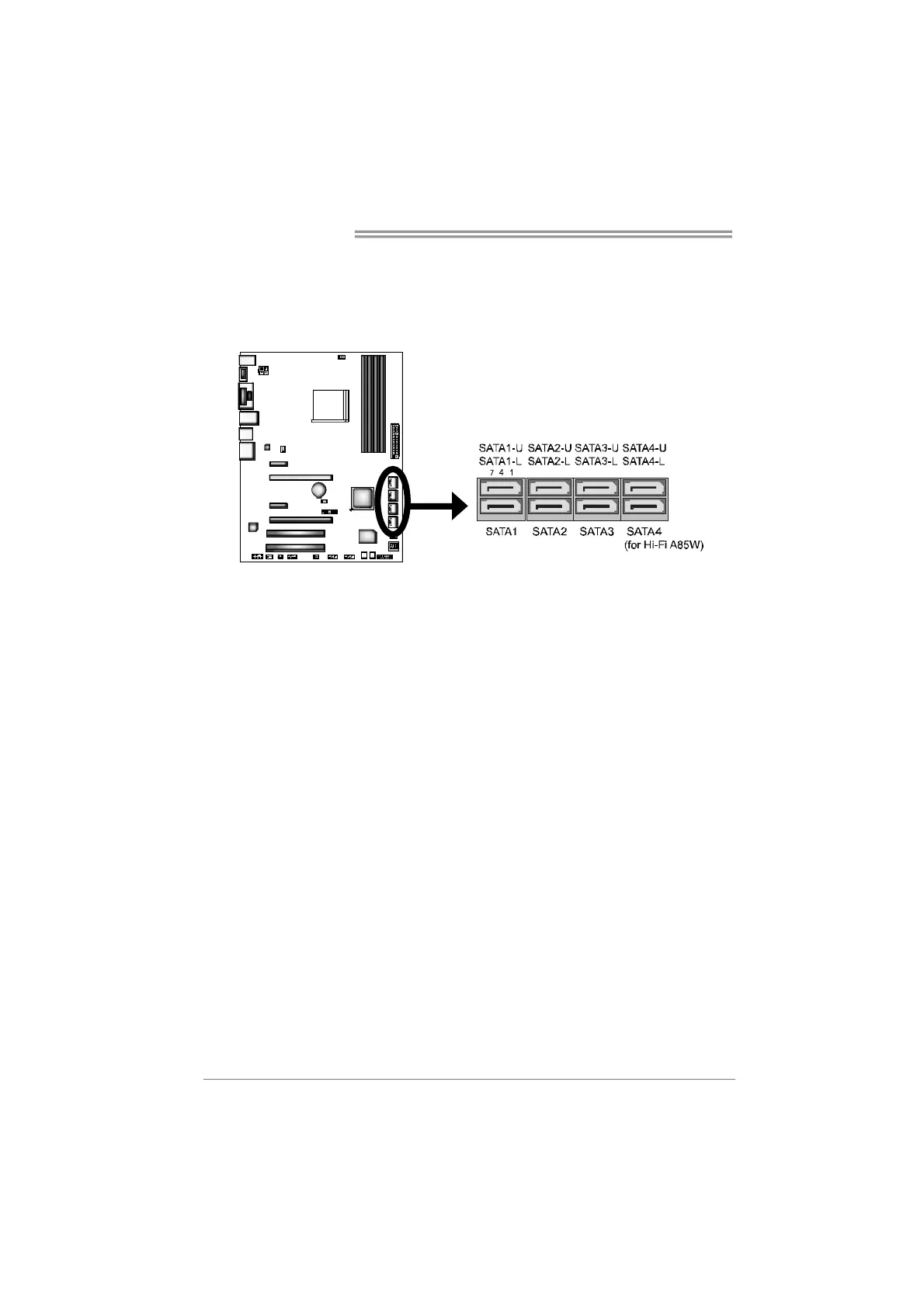

SATA1~SATA4: Serial ATA Connectors
These connectors connect to SA
T
A
hard disk drives via SA
T
A
cables.
Hi-Fi
A85W supports 8 SA
T
A
3.0 connectors.
Hi-Fi
A75W supports 6 SA
T
A
3.0 connectors.
Pin
Assignment
1
Ground
2
TX+
3
TX-
4
Ground
5
RX-
6
RX+
7
Ground
13
15
