Hi-Fi A85W/Hi-Fi A75W
17

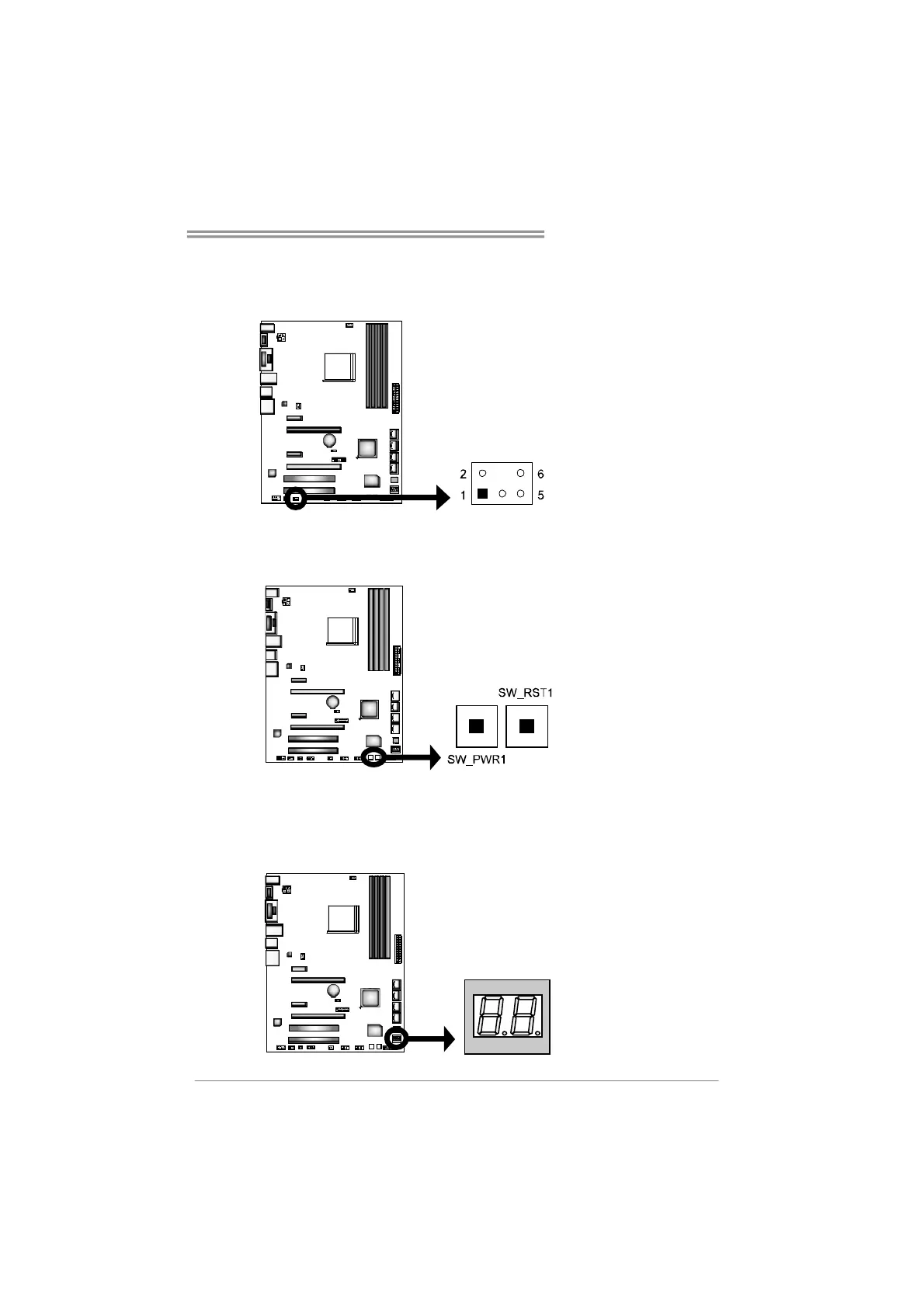

CIR1: Consumer IR Connector
This header is for infrared remote control and communication.
Pin Assignment
1 IrDA serial input
2 Ground
3 Ground
4 Key
5 IrDA serial output
6 IR Power
On-Board Buttons
There are 2 on-board buttons.
SW_PWR1:
This is an on-board
Power Switch button.
SW_RST1:
This is an on-board
Reset button.
BIOS POST Code/CPU Temperature Indicator
This indicator will show POST code while booting. After the booting sequence,
it will show current CPU temperature. Please refer to Chapter 7.4 for all the
BIOS POST codes.
