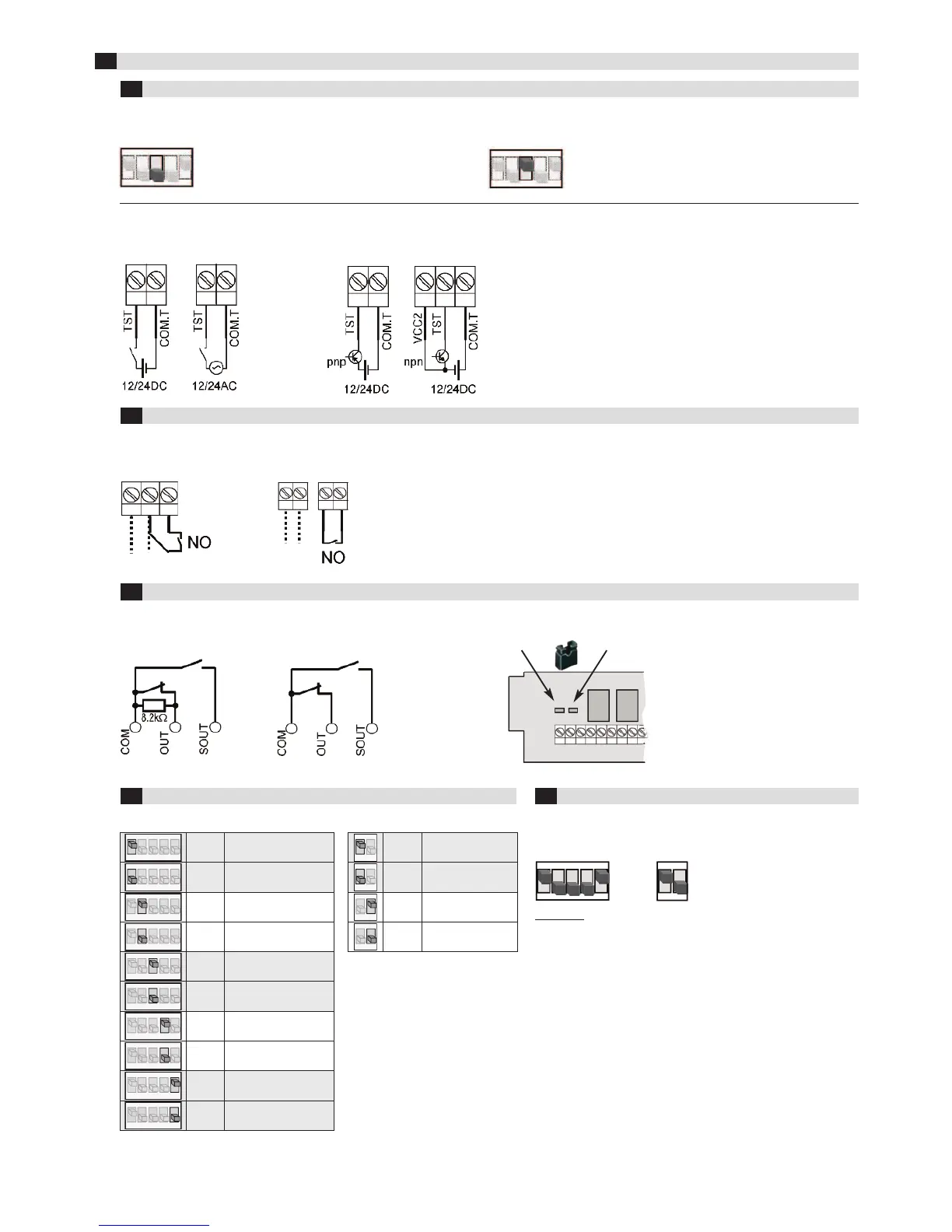

Extended configurations, factory settings
3
Operation with testing (cat. 2 acc. to EN ISO 13849-1)3.1
DIP switch setting:
Test NO contact (test activated = contact closed) Test NC contact (test activated = contact open)
Factory settings
Connection possibilities:
On controller: contact PNP- or NPN-transistor
Applications with limit switch (bridges the safety edge!)3.2
Wire up transmitter to limit switch
RFGate 2.1.S RFGate 2.1.S.F
Output NO instead of 8.2 kohm resistor3.3
On both relay outputs, the 8.2 kohm resistor can be disconnected if required by removing a jumper.
with Jumper: without Jumper: Jumper output 1: Jumper output 2:
Overview tables for DIP switches3.4
Receiver: Transmitter:
11 3322 44 55
ONON
1 ON Default setting
5511 3322 44
ONON
1 OFF No safety operation!
5522 3311 44
ONON
2 ON 869.85 MHz
5522 3311 44
ONON
2 OFF 868.95 MHz
55
33
11 22 44
ONON
3 ON Test input NC
55
33
11 22 44
ONON
3 OFF Test input NO
55
44
11 22 33
ONON
4 ON Frequency adaptation on
55
44
11 22 33
ONON
4 OFF Frequency adaptation off
11 22 33
55
44
ONON
5 ON Default setting
44
55
11 22 33
ONON
5 OFF No function!
11
2
2
ONON
1 ON
Safety edge
with 8.2 kOhm
11
22
ONON
1 OFF Contact NO (s. 2.6)
22
11
ONON
2 ON 869.85 MHz
22
11
ONON
2 OFF 868.95 MHz
Factory settings3.5
For safety operation
Receiver: Transmitter:
Important:
Receiver switches 1 and 5 always in ON position.Correct
operation is not guaranteed if OFF!
Factory settings
