Assembling Your E-Scooter
Battery pack
faces the rider
1
2

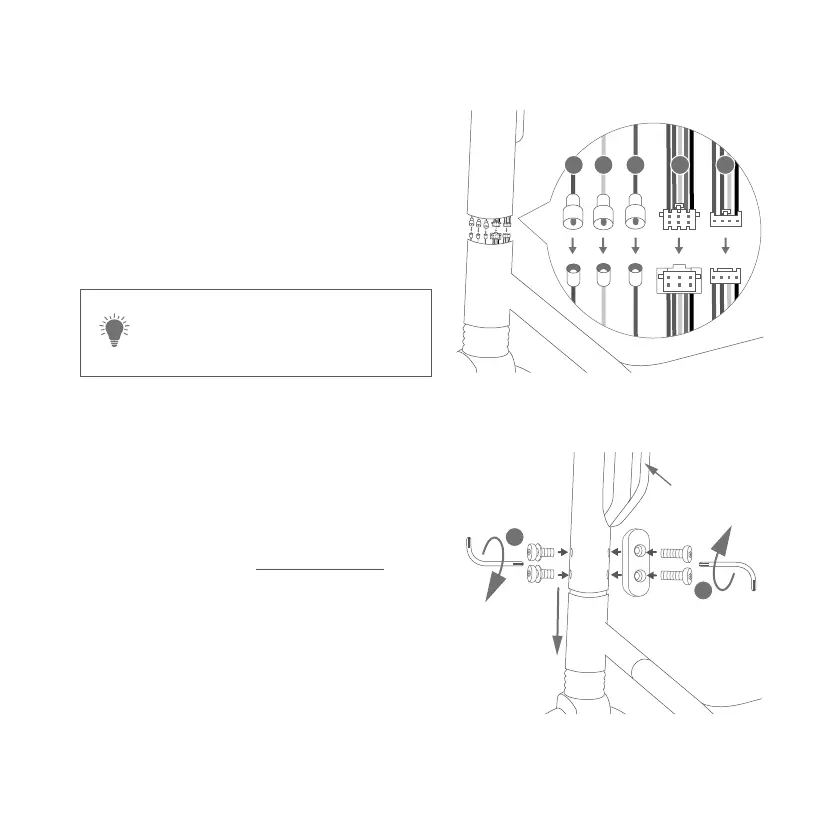

1. Connect the 5 wires securely to their matching
color/port connections (otherwise the unit will NOT
turn on):
1 Blue single-pin connector
2 Yellow single-pin connector
3 Brown single-pin connector
4 Six-pin connector
5 Four-pin connector
2. Slide the handlebar post into the base (the battery
pack must be facing the rider). Install the 4 screws
halfway before tightening them completely:
1 From the front side of the post, the two screws
that come with washers should be used.
2 On the rider’s side of the post, align the two
remaining long screws through the Riser Lock.
NOTE:
For the easy connection of wires, lay the base
of the unit and the handlebar’s post, next to
each other, on a flat surface.
