Birko 1005004 - Assembling the Mixing Arms

Operating Instructions
BIRKO Kitchen Mixer Model: 1005004
7 Litre
BIRKO
Page 4
Kitchen Mixer 6001057 - October 2013 v1.05
Operating Instructions
BIRKO Kitchen Mixer Model: 1005004
7 Litre
BIRKO
ASSEMBLING THE MIXING ARMS ( HOOK; PADDLE AND WHISK )
-Turn off the machine at switch ( i ) and disconnect the Mixer from the power supply.
-Rotate the handle ( e ) clockwise to release the locking mechanism . This will allow the mixing head ( a )
to rise automatically and will expose the mixing arms.
-When the mixing head has been raised (aprox 45 deg.) release the handle ( e ) and secure it in the verti-
cal position.
-Insert the keyed shaft of the mixing arm ( d ) into the mating end of the mixing axle ( c ). Rotate the mix-
ing arm to the left until the keyed shaft is fully home and secure.
-Rotate the handle ( e ) anti-clockwise to the horizontal position to allow the mixing head to move down.
Push the mixing head down until it locks into position.
-When locked the handle will move to the vertical position. Do not operate the mixer unless the handle is
in the, locked, vertical position.
-To remove the mixing arm, reverse the above procedure.

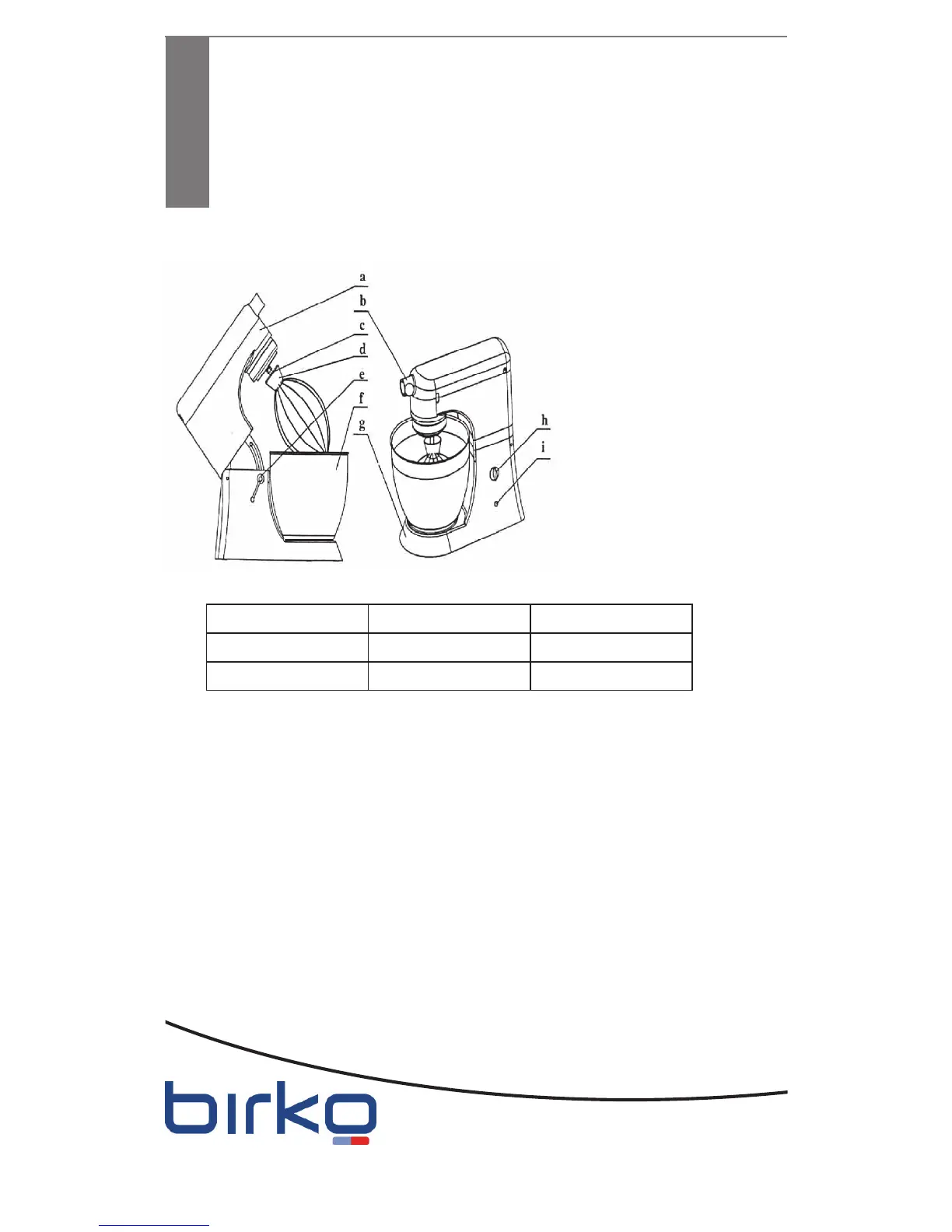

a) Mixer head d) Agitator g) Base
b) Interception (select
models)
e) Handle h) Speed Control
c) Mixing Axle f) Mixing Bowl i) Switch
