BIRO 44 - Page 19

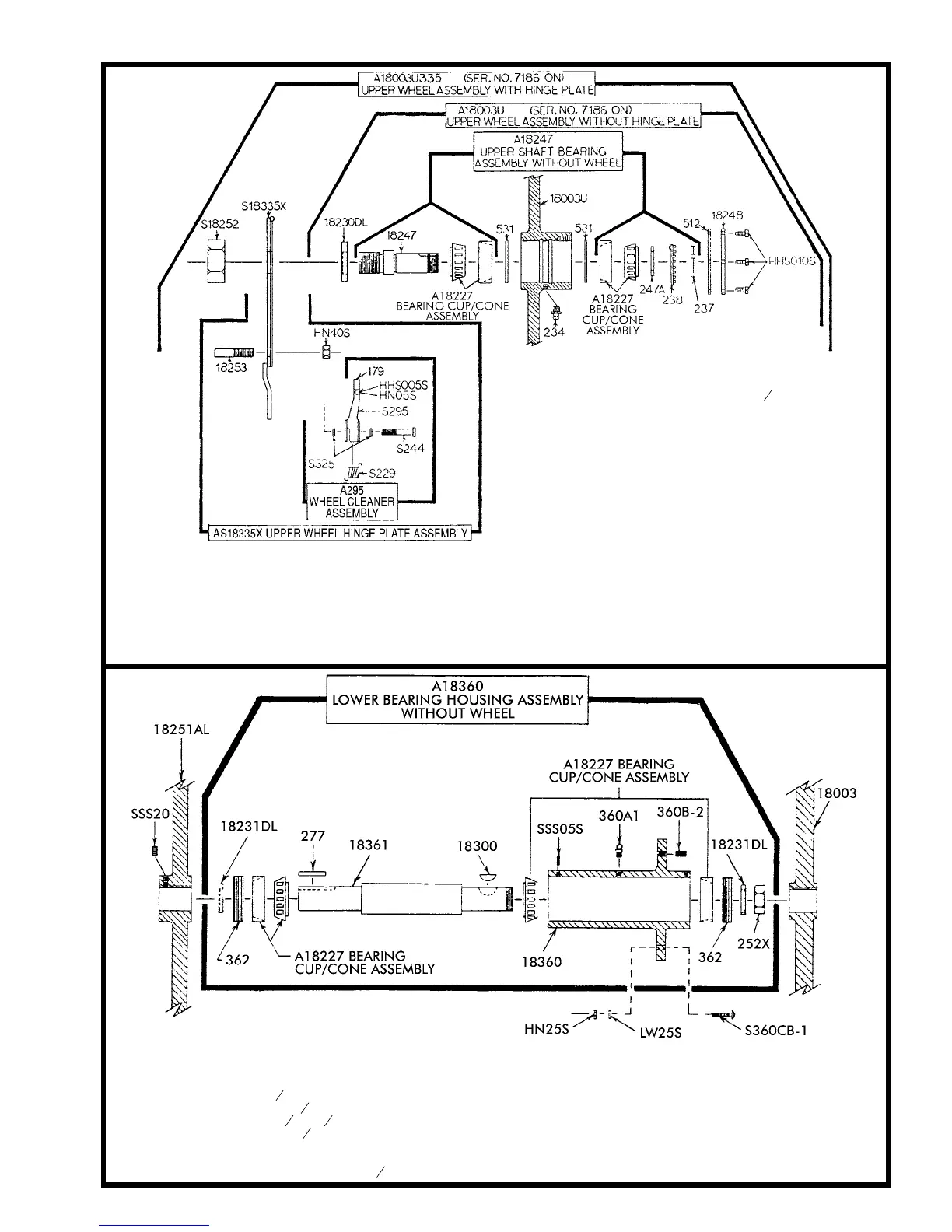

Item No. Description
A18227 Bearing cup/cone assembly
A18360 Lower bearing housing assembly
HN25S Hex nut,
3
8
-16, SS
LW25S Lock washer,
3
8
,SS
SSS20 Set screw,
3
8
-16
´
3
8
, cup point
S360CB-1 Carriage bolt,
3
8
-16
´
1¼, SS
18003 Lower wheel, 18"
18231DL Lower shaft seal, double lip
18251AL Upper v-belt pulley, 12.8
´
1
1
8
,AL
Item No. Description
18300 Lower shaft woodruff key
18360 Lower bearing housing
18361 Lower shaft
252X Shaft lock nut
277 Lower shaft pulley key
360A1 Grease fitting
360B-1 Set screw, ½-13
´
½, flat point
362 Lower bearing housing adjusting cap
Item No. Description
A18003U Upper wheel assembly w/o hinge plate
A18003U335 Upper wheel assembly with hinge plate
A18227 Bearing cup/cone assembly
A18247 Upper shaft and bearing assembly
AS18335X Upper wheel hinge plate assembly
A295 Wheel cleaner assembly
Item No. Description
HHS005S Hex head screw, 8-32
´
½SS
HHS010S Hex head screw, 10-32
´
3
8
SS
HN05S Hex nut, 8-32 SS
HN40S Hex nut, ½-13, light jam, SS
S18253 Upper wheel aligning screw, SS
S229 Wheel cleaner arm spring, SS
S244 Wheel cleaner arm stud, SS
S295 Wheel cleaner arm, SS
S325 Wheel cleaner arm stud washer, SS
179 Wheel cleaner
18003U Upper wheel, 18”
18230DL Upper shaft seal, double lip
18247 Upper shaft
18248 Upper wheel hub cap
S18252 Upper shaft lock nut
S18335X Upper wheel hinge plate
234 Grease fitting
237 Upper shaft castellated lock nut
238 Upper shaft castellated lock washer
247A Upper shaft bearing back-up washer
512 Upper wheel hub cap gasket
531 Retaining ring (2 req.)
15
