BIRO 44 - Page 20

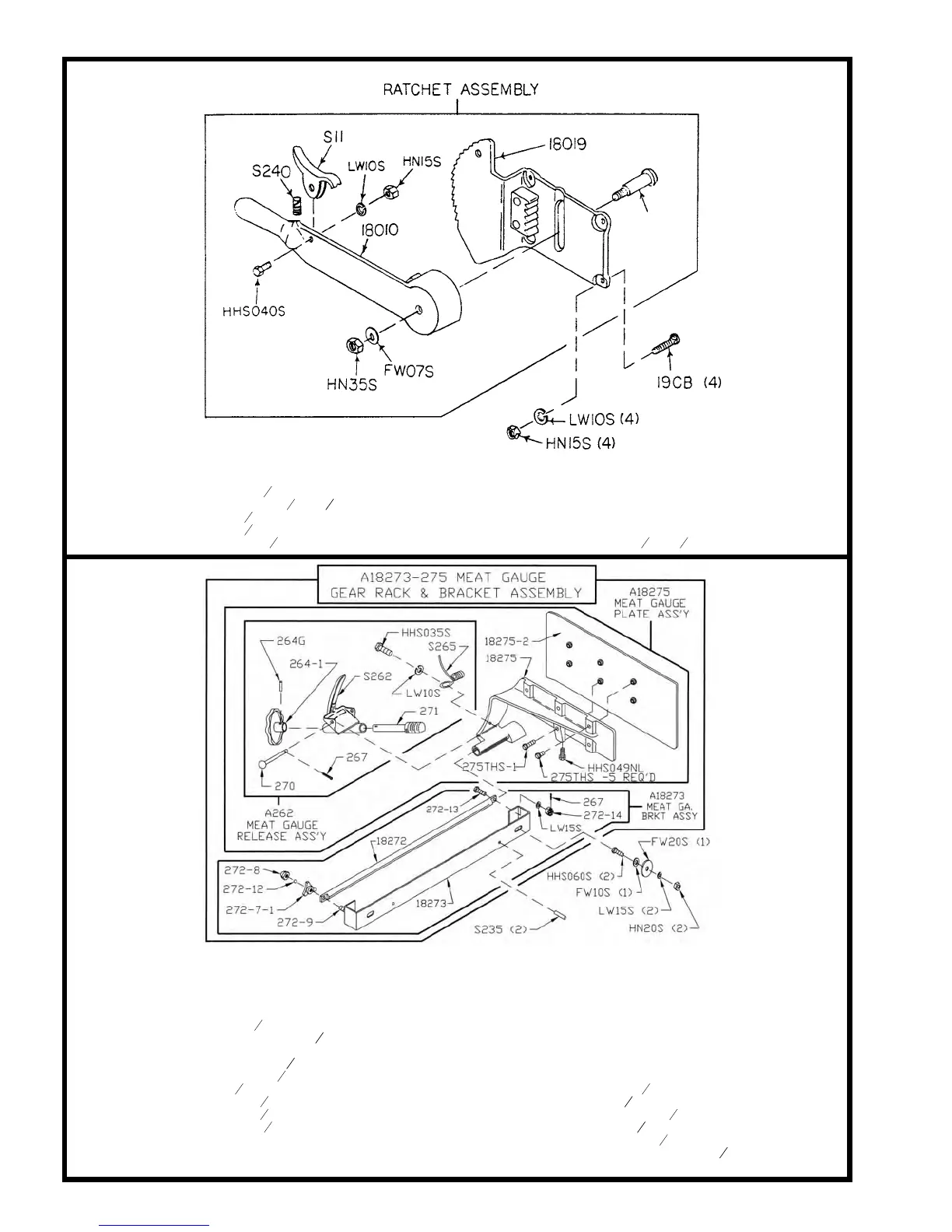

Item No. Description
A18273-275 NOT SOLD AS ASSEMBLY
A18273 Meat gauge bracket assembly
A18275 Meat gauge plate assembly
A262 Meat gauge release assembly
FW10S Flat washer,
5
16
SS
HHS035S Hex head screw ¼-20
´
5
8
SS
HHS040S Hex head screw, ¼-20
´
¾, SS
HHS049NL Hex screw – nylon
5
16
-18
´
½ lg.
HHS060S Hex head screw,
5
16
-18
´
1, SS
HN20S Hex nut,
5
16
-18, SS
LW10S Lock washer,
1
4
SS
LW15S Lock washer,
5
16
SS
S235 Taper pin, 4
´
3
4
SS
S262 Meat gauge release handle, SS
S265 Meat gauge release spring, SS
S18272 Meat gauge gear rack
Item No. Description
18273 Meat gauge bracket, ORDER A18273
18275 Meat gauge arm
18275-2 Meat gauge plate, SS
264G Meat gauge hand wheel groove pin
264-1 Meat gauge hand wheel
264-1S Hand wheel shim
267 Meat gauge release cotter key
270 Meat gauge release pin
271AL Meat gauge worm gear
272-7-1 Lock knob,
5
16
-18, 3 point
272-8 Cap nut
5
16
-18 SS
272-9 Hex head screw,
5
16
-18
´
2, SS
272-12 Brass ball,
7
32
dia.
272-13 Hex head bolt,
5
16
-18
´
1¼, SS
275THS Truss head screw, ¼-20
´
3
8
(5 ea.)
275THS-1 Truss head screw, ¼-20
´
1 (1 ea.)
Description
S11 Ratchet trigger SS
S18189 Ratchet arm stud SS
S240 Ratchet trigger spring, SS
18010 Ratchet arm
18019 Ratchet base
19CB Carriage bolt
1
4
-20
´
3
4
,SS
Item No. Description
A18019 Ratchet assembly
FW07S Flat washer,
3
8
SS
HHS040S Hex head screw,
1
4
-20
´
3
4
SS
HN15S Hex nut,
1
4
-20 SS
HN35S Hex nut,
3
8
-16 SS
LW10S Lock washer,
1
4
SS
S18189
AS18019
S18189
AS18019
16
