BIRO 44 - Page 28

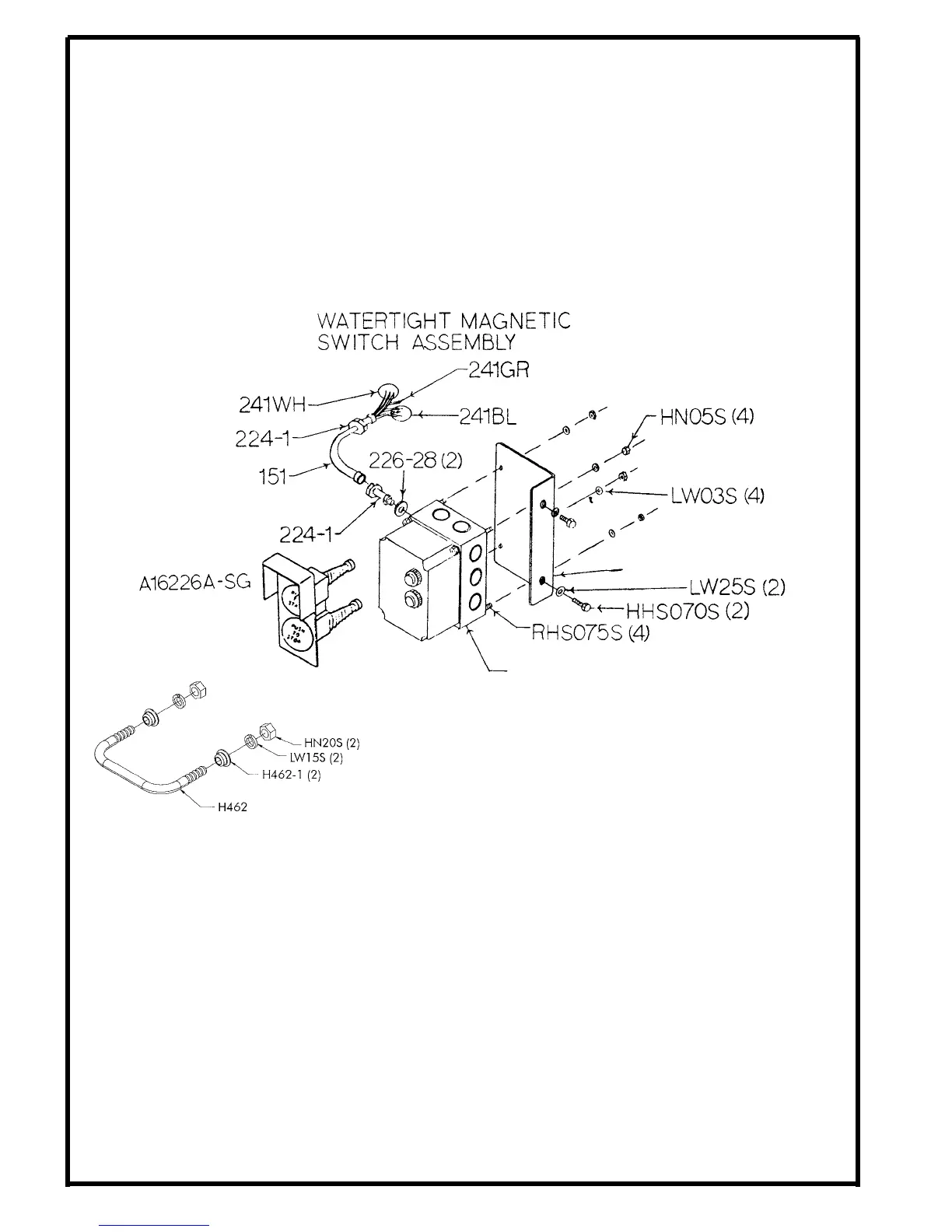

WATERTIGHT MAGNETIC SWITCH ASSEMBLIES
(AEG)
INCLUDES MOUNTING BRACKET AND WIRES
22
Item No. Description
A16226A-SG Green/red switch button assembly
H462A Guard assembly for switch
HHS070S Hex head screw,
3
8
-16
´
1SS
HN05S Hex nut, 8-32 SS
LW03S Lock washer, #8 SS
LW25S Lock washer,
3
8
heavy SS
RHS075S Round head screw, 8-32
´
3
4
SS
16296-2 Switch bracket SS
151 Watertight conduit
224-1 Conduit connector, WT, 180°
226AE-ENCL-PB Enclosure with button holes
226AE-0L02H Overload, B27T-H (1.8-2.8)
226AE-0L04I Overload, B27T-I (2.8-4)
226AE-0L06K Overload, B27T-K (4-6)
226AE-0L08L Overload, B27T-L (5.6-8)
226AE-0L12M Overload, B27T-M (8-12)
226AE-0L17N Overload, B27T-N (11-17)
226AE-0L23O Overload, B27T-O (15-23)
226AE-0L32P Overload, B27T-P (22-32)
226AE-A0 Contactor, SP17.10-A0, 110V
226AE-C0 Contactor, SP17.10-C0, 208/220/230V
226AE-D0 Contactor, SP17.10-D0, 380/415V
226AE-E0 Contactor, SP17.10-E0, 440V
Item No. Description
226AE-F0 Contactor, SP17.10-F0, 550V
226AE-506 BAEG/PC-PB/C6
226AE-514 BAEG/PC-PB/C8
226AE-516 BAEG/PC-PB/E4
226AE-518 BAEG/PC-PB/D6
226AE-520 BAEG/PC-PB/A23
226AE-522 BAEG/PC-PB/C12
226AE-524 BAEG/PC-PB/A32
226AE-526 BAEG/PC-PB/C17
226AE-530 BAEG/PC-PB/F2.8
226AE-534 BAEG/PC-PB/E6
226AE-536 BAEG/PC-PB/D8
226AE-538 BAEG/PC-PB/F4
226AE-540 BAEG/PC-PB/C23
226AE-544 BAEG/PC-PB/E12
226AE-546 BAEG/PC-PB/D12
226AE-548 BAEG/PC-PB/F8
226-28 Washer, 1
1
2
´
27
32
SS
241BL Wire, black, 12 GA., CSA & UL
241GR Wire, green, 12 GA ., CSA & UL
241RD Wire, red, 12 GA., CSA & UL
241WH Wire, white, 12 GA., CSA & UL
Item No. Description Application
A22618AE-522 BAEG/PC-PB/C12 3HP, 208/220/230-50/60-3
A22618AE-534 BAEG/PC-PB/E6 3HP, 440/460-60-3
A22618AE-536 BAEG/PC-PB/D8 3HP, 380/415-50-3
A22618AE-538 BAEG/PC-PB/F4 3HP, 550/575-60-3
A22618AE-540 BAEG/PC-PB/C23 5HP, 208/220/230-50/60-3
A22618AE-544 BAEG/PC-PB/E12 5HP, 440/460-60-3
A22618AE-546 BAEG/PC-PB/D12 5HP, 380/415-50-3
A22618AE-548 BAEG/PC-PB/F8 5HP, 550/575-60-3
Item No.
A22618EE-522
A22618EE-534
A22618EE-536
A22618EE-538
A22618EE-540
A22618EE-544
A22618EE-546
A22618EE-548
Description
BAEG/PC-PB/C14
BAEG/MS-PB/05-E6.3
BAEG/MS-PB/05-D8
BAEG/MS-PB/05-F4.7
BAEG/MS-PB/C18
BAEG/MS-PB/05-E8
BAEG/MS-PB/05-D14
BAEG/MS-PB/05-F8
Application
3HP, 208-220-50/60-3
3HP, 440/460-60-3
3HP, 380/415-50-3
3HP, 550/575-60-3
5HP, 208/230-50/60-3
5HP, 440/460-60-3
5HP, 380/415-50-3
5HP, 550/575-60-3
16296-3
226EE (SPECIFY
ELECTRICAL SPECS)
Item No.
A16226A-SG
H462A
HHS070S
HN05S
LW03S
LW25S
RHS075S
16296-3
151
224-1
226EE-522
226EE-522K
226EE-534
226EE-534K
226EE-536
226EE-536K
226EE-538
226EE-538K
226EE-539
226EE-540
226EE-540K
226EE-544
226EE-544K
Description
GREEN/RED SWITCH BUTTON ASSEMBLY
GUARD ASSEMBLY FOR SWITCH
HEX HEAD SCREW, 3/8 -16 x 1 SS
HEX NUT, 8-32 SS
LOCK WASHER, #8 SS
LOCK WASHER, 3/8 HEAVY SS
ROUND HEAD SCREW, 8-32 x 3/4 SS
SWITCH BRACKET SS, AEG/VYNCKIER ENCLOSURE
WATERTIGHT CONDUIT
CONDUIT CONNECTOR, WT 180º
BAEG/MS-PB/05-C14 3HP 230-50/60-3
CONTACTOR, OVERLOAD, SUBPLATE REPLCMNT 220V, 3PH, 3HP
BAEG/MS-PB/05-E6.3 3HP, 440-60-3
CONTACTOR, OVERLOAD, SUBPLATE REPLCMNT 440V, 3PH, 3HP
BAEG/MS-PB/05-D8 3HP, 380-50-3
CONTACTOR, OVERLOAD, SUBPLATE REPLCMNT 380V, 3PH, 3HP
BAEG/PC-PB/05-F4.7 3HP, 550-60-3
CONTACTOR, OVERLOAD, SUBPLATE REPLCMNT 550V, 3PH, 3HP
BAEG/PC-PB/05-A4.7 3HP, 550-110-60-3
BAEG/MS-PB/C18 5HP 220-60-3
CONTACTOR, OVERLOAD, SUBPLATE REPLCMNT 220V, 3PH, 5HP
BAEG/MS-PB/05-E8 5HP 440-60-3
CONTACTOR, OVERLOAD, SUBPLATE REPLCMNT 440V, 3PH, 5HP
Item No.
226EE-546
226EE-546K
226EE-548
226EE-548K
226EE-CO
226EE-CO11K
226EE-DO
226EE-ENCL-PB30
226EE-EO
226EE-EO11K
226EE-FO
226EE-FO11K
226EE-OL06.3K
226EE-OL08.5L
226EE-OL08L
226EE-OL12M
226EE-OL14NN
226EE-OL18O
226EE-OL4I
H28IEE-51
226-28
241BL
241GR
241RD
241WH
Description
BAEG/MS-PB/D14 5HP 380/415-50-3
CONTACTOR, OVERLOAD, SUBPLATE REPLCMNT 380V, 3PH, 5HP
BAEG/MS-PB/05-F8 5HP, 550-60-3
CONTACTOR, OVERLOAD, SUBPLATE REPLCMNT 550V, 3PH, 5HP
CONTACTOR, LS05.10-CO, 208-230V
CONTACTOR, LS11K.11S-CO, 208-230V
CONTACTOR, LS05.10-DO, 380-415V
ENCLOSURE WITH PUSHBUTTON 30MM HOLES
CONTACTOR, LS05.10-EO 440-480V
CONTACTOR, LS11K.11S-EO 480V, 60HZ-380V, 50HZ
CONTACTOR, LS05.10-FO, 550V
CONTACTOR, LS11K.11S-FO, 575V
OVERLOAD B05-K, 4-6.3A
OVERLOAD B18K-L, 5.5-8.5A
OVERLOAD B05-L, 5.5-8A
OVERLOAD B18K-M, 8-12A
OVERLOAD B05-NN, 10-14A
OVERLOAD B18K-O, 14.5-18A
OVERLOAD B18K-I, 2.5-4A
OVERLOAD B18K, 4-6.3A
WASHER, 1 1/2 x 27/32 SS
WIRE, BLACK 12 GA., CSA & UL
WIRE, GREEN, 12GA., CSA & UL
WIRE, RED, 12 GA., CSA & UL
WIRE, WHITE 12 GA., CSA & UL
H462A
