Ⅱ. Installation and Adjustment for cable
1. Adjustment of the clutch cable. (See Figure 5 and 6)
① Unscrew the locknut of the tie rod
② Spin the tie rod clockwise until the exposed handle support is the shortest.
③ Get the joint of cable into the clutch wire socket of rear part of the gear-box
assembly, and ensure the joint of cable goes into the hole of the socket.

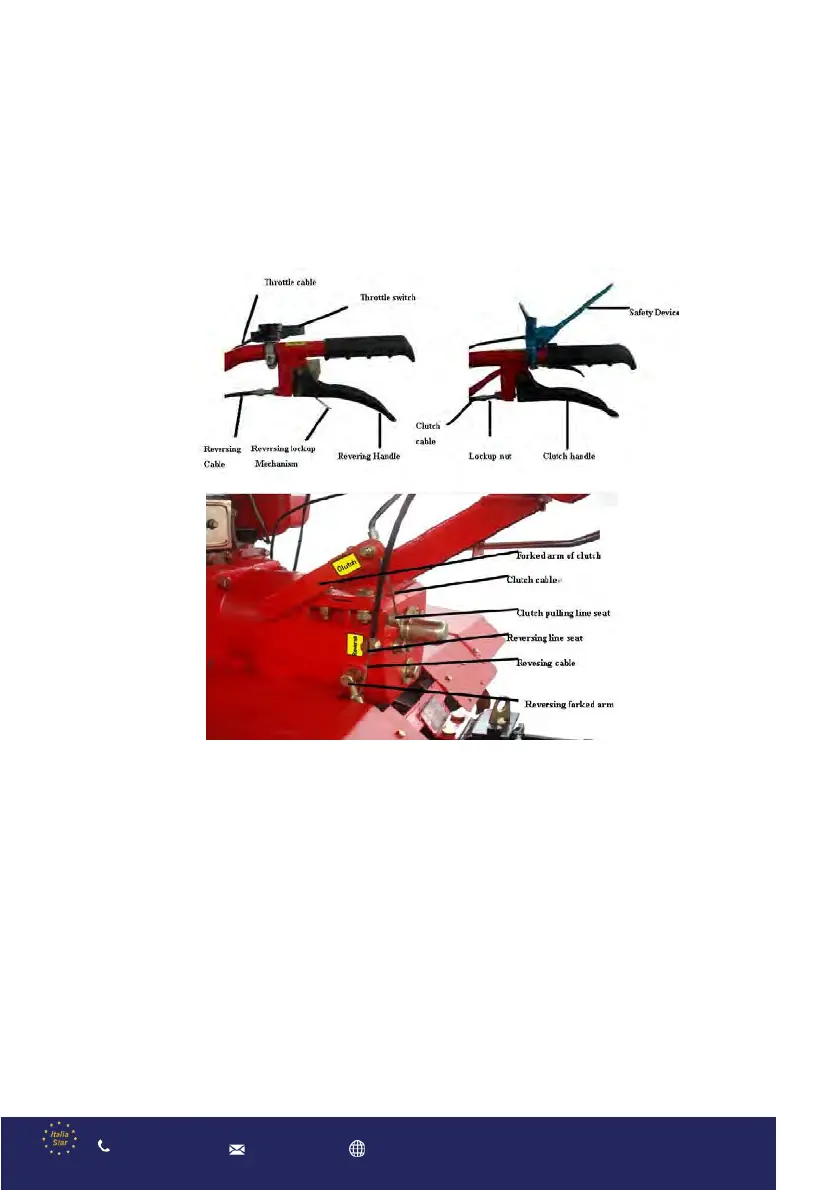

Figure 5
Figure 6
④ Get the wire into the M8 hole on base of the clutch fork arm, properly press the fork
arm of the clutch, and put the joint of cable into the wire socket.
⑤ Unscrew the tie rod, grasp and loosen the clutch handle until the spring force in the
clutch can reset the handle, then screw the locknut.
2. Adjustment of the reversing gear cable(See Figure 5 and 6)
① Unscrew the locknut of the tie rod.
② Spin the tie rod clockwise until the bare handle support is the shortest.
③ Get the cable into the reversing fork shaft besides the gear-box, and ensure the joint
of cable goes into the hole of the fork shaft.
④ Properly pull the reversing fork shaft counterclockwise, get the cable into the
narrow gap of the reversing wire socket besides the gear-box, and ensure the pipe
head goes into the hole of the wire socket.
⑤ Unscrew the tie rod, grasp and loosen the clutch handle until the spring force in the
clutch can reset the handle, then screw the locknut.
