Bisonte BTA-12SDE - Throttle Adjustment and Refueling Checks; Throttle Cable Adjustment; Pre-Refueling Checks and Torque

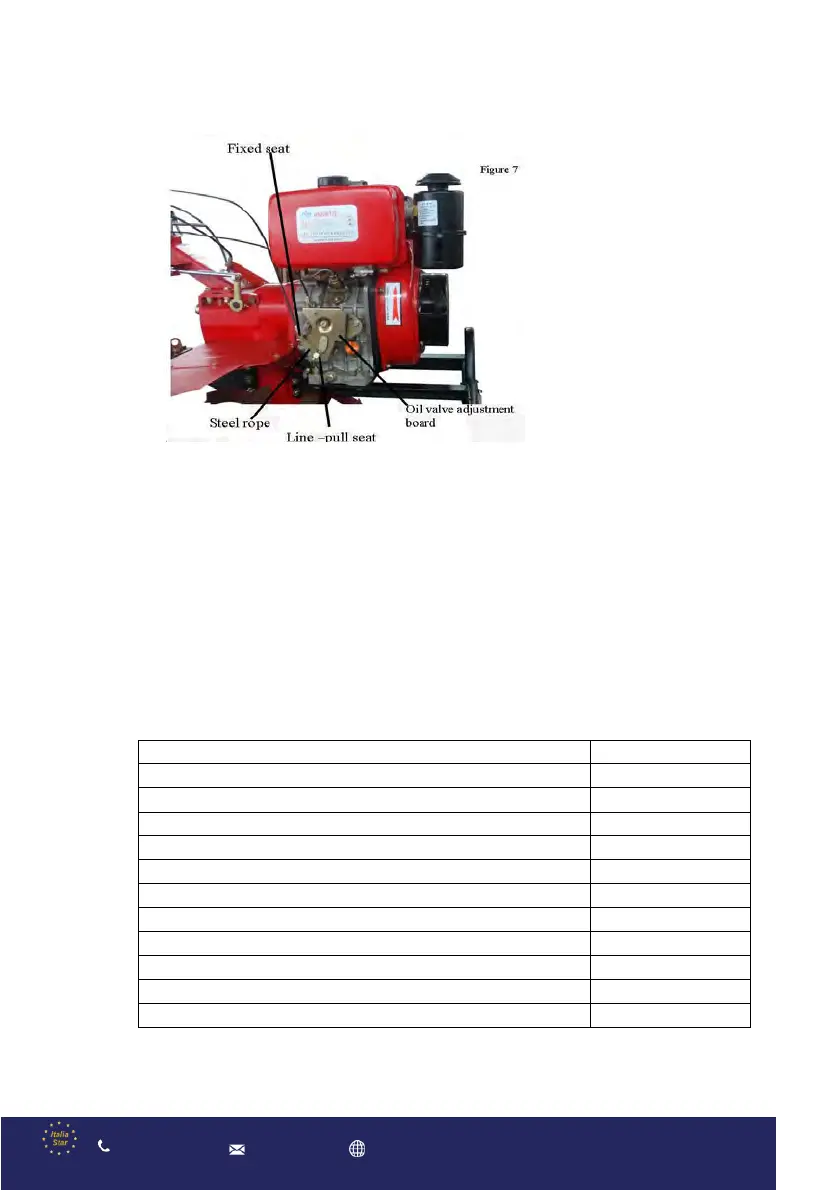

3. Adjustment of the throttle cable (See Figure 7)
① shift the throttle switch clockwise tominimum positioning.
② Get wire of the throttle cable into the threading base and firm base on
top of the throttle adjustment board of the diesel engine.
③ Tighten the wire, screw the bindingbolts on the firm base.
④ Adjust the throttle switch repeatedly until the throttle handle on the oil valve
adjustment board can reach the maximum and minimum position.
4. Detailed information for the installation and adjustment of cable, refer to the disk
attached.
Ⅲ Check and Refueling
1. Check whether all the connection bolts are loose or not, and fix the connection bolts
according to the moment of force listed in table 3. (Refer to the instruction manual
for diesel engine for the screwing moment of force bolt and nut respectively)
Name of parts
Moment of force (N.M)
Flange and the diesel engine
20-25
Flange and the gear-box
35-40
Binding bolts of end of driving shaft of gear-box
10-12
Binding bolts of reversing gear shaft of gear-box
26-40
Binding bolts between engine support and traveling mechanism
35-40
Binding bolts of cover of the traveling mechanism
10.6-15
Binding bolts of trailer of the traveling mechanism
50-60
Connection bolts between traveling mechanism and gear-box
35-40
Trailer unit
45-60
Set bolts of the diesel engine base
35-40
Set bolts of the handle support base
35-40
