Overview of equipment
Operating instructions GLP
1 -- 16
6.562.98.5.01.18
1.2.9
Labeler GLP--COMPACT on the packaging machine ULMA COMPACT
1.2.9.1 Description
The packaging machine ULMA COMPACT permits any kind of product trays to
be wrapped with a stretch film. The tray to be wrapped is weighed by means of
a scale installed underneath the infeed conveyor of the packaging machine, sub-
sequently packaged and conveyed to the discharge conveyor belt from where it
is manually removed and provided with a label which is printed out by the GLP--
COMPACT labeler.
The device combination consists of the following components:
-- packaging machine ULMA COMPACT
-- labeler GLP--COMPACT with thermal label printer, supply roll with self--adhe-
sive labels and integrated tape winder for the backing paper
-- scale, installed underneath the infeed conveyor belt of the packaging machine

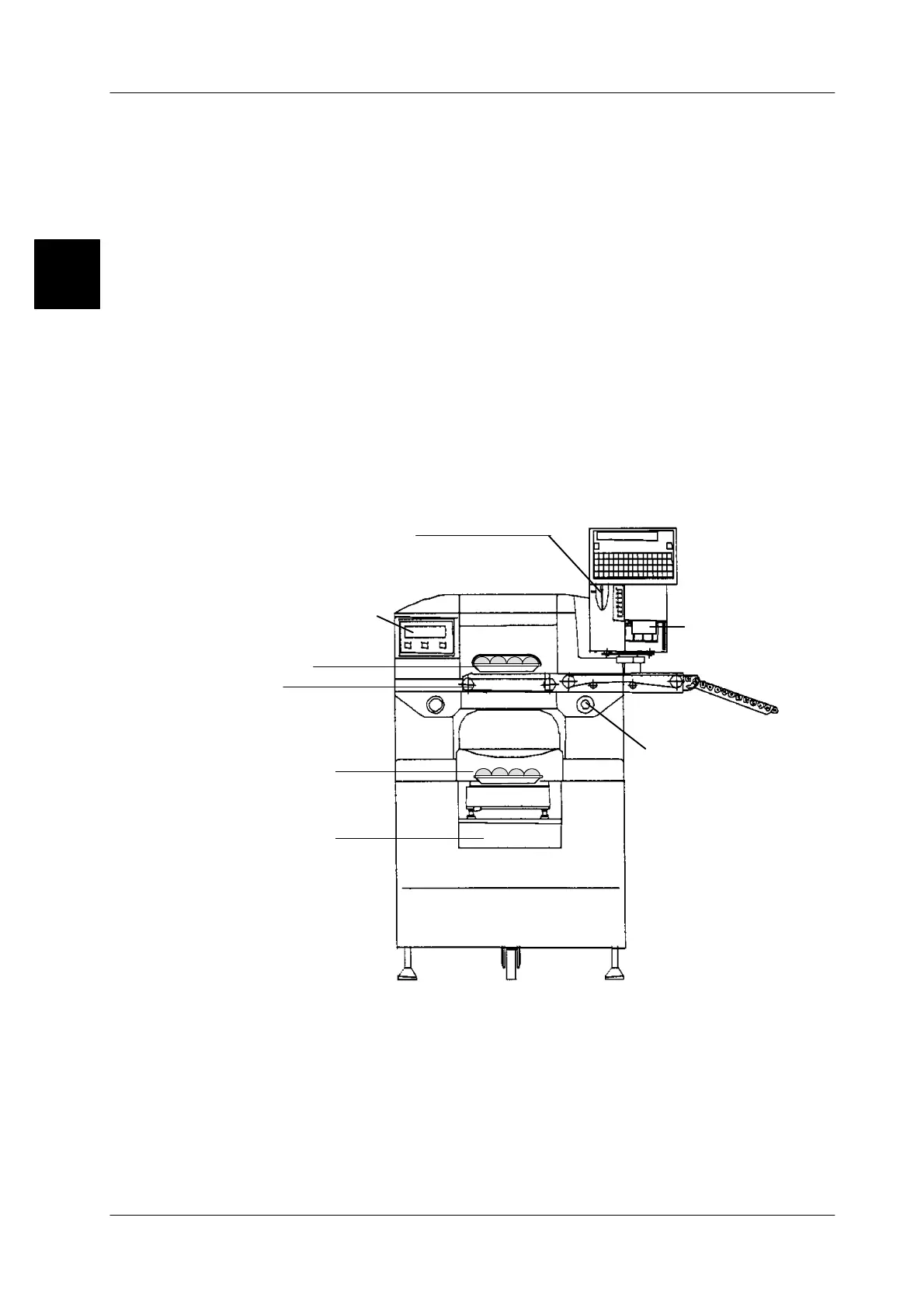

1.2.9.2 View
Labeler GLP--COMPACT
Packaging machine
ULMA COMPACT
Operating tableau of
packaging machine
Wrapped tray
Discharge
conv. belt
Tray to be wrap-
ped on infeed
conv. belt
Scale installed
underneath the
infeed con-
veyor belt
Removable
label
Emergency STOP key
