1. To prepare for bulb replacement, unplug unit and allow it to sit for two hours to
allow the electrical charge within the unit to dissipate.
2. Remove the tray. (As indicated on Pg. 5)

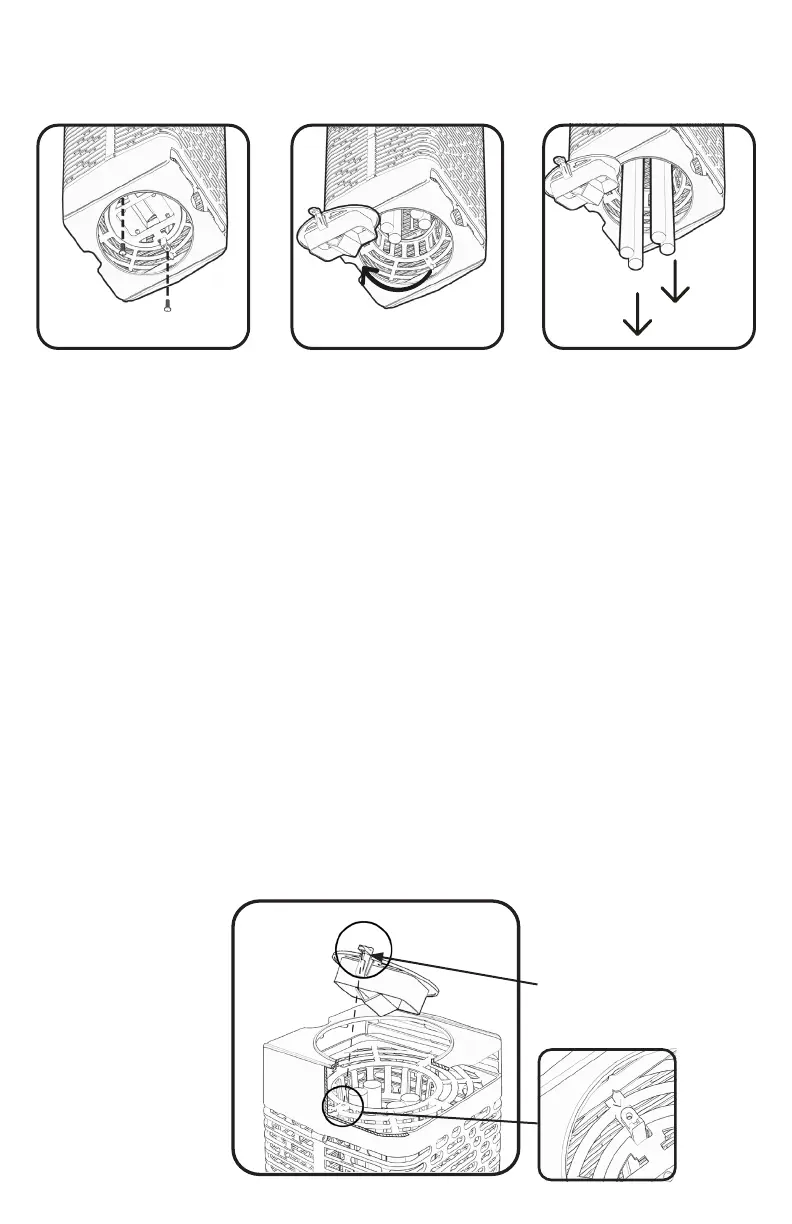

3. Remove both screws securing grate panel. (see Fig. 4)
4. Lift up grate to access bulb. (see Fig. 5)
5. Wearing gloves, gently tug on the bulb to remove. (see Fig. 6)
6. Replace bulb only with proper Black and Decker replacement bulbs type BDPCA 18W
BL, Rated 18W for model BDPC912.
7. Wearing gloves, insert replacement bulbs making sure they are properly seated into
the sockets that they were removed from.
8. Gently apply pressure on bulbs until they snap into socket securely.
9. Place grate plate back into position so that grate tab is aligned above screw hole in
main unit indicated with arrow. (see Fig. 7)
Page 6
HOW TO REPLACE BULB:
Fig. 7
GRATE TAB
Fig. 4 Fig. 5 Fig. 6
To Next Page
