INSTALLING YOUR HORIZONTAL
TOASTER
Tools you will need for
installation:
• Drill and 1/4” drill bit
• Phillips screwdriver
• Hammer/Nail to start a drill hole
• Adhesive tape
• Eye Protection Goggles
• Newspaper to cover
counter tops (optional)
First, determine if your cabinet has
a flush bottom or overhang bottom.

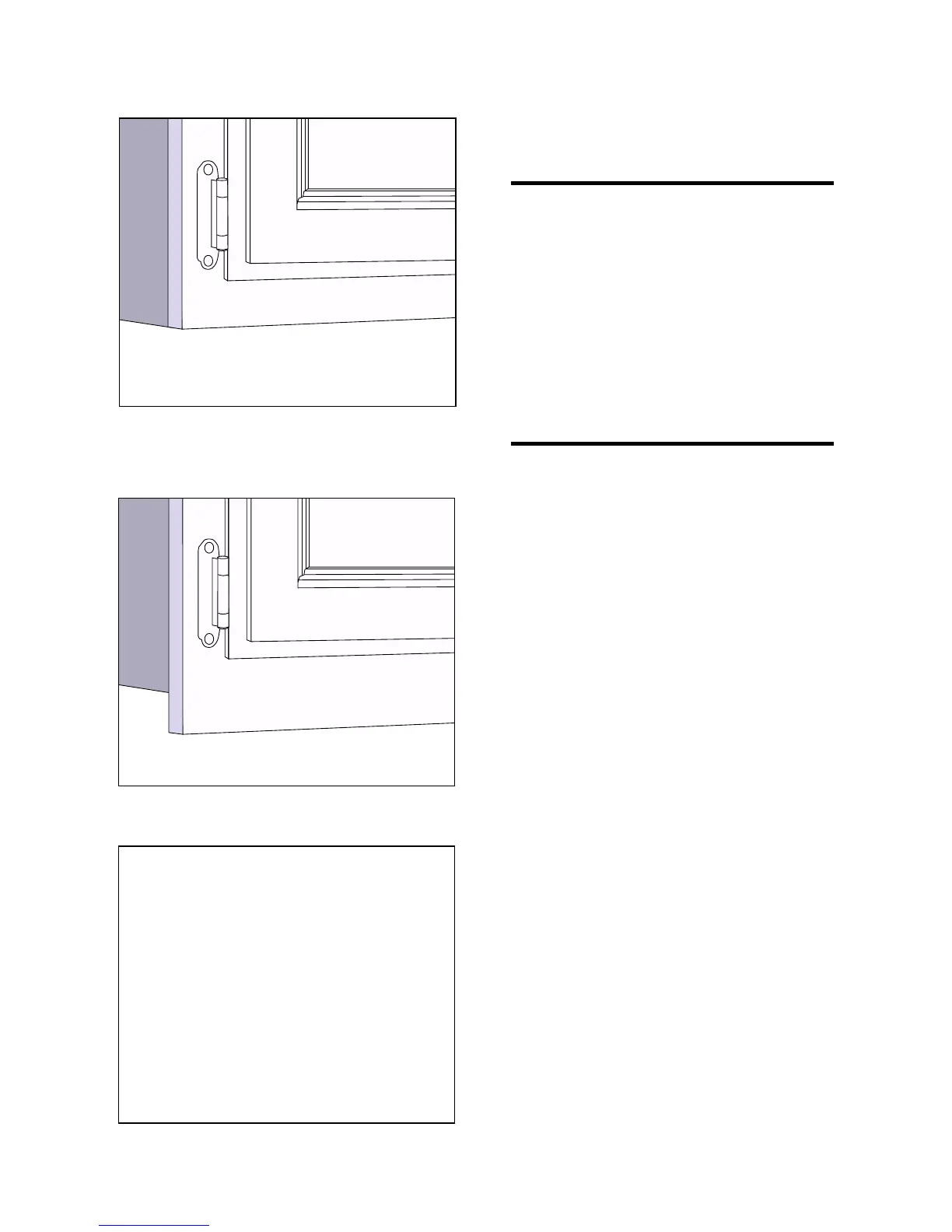

(See Illustration 1A & 1B). If your
cabinet has a flush bottom — flat,
level surface — follow the
mounting instructions below. If
your cabinet has an overhang — a
lip extending below the bottom of
the cabinet shelf — turn to page 9
for mounting instructions.
MOUNTING INSTRUCTIONS
FOR CABINET WITH FLUSH
BOTTOM
1. Empty your cabinet of its
contents before starting to drill.
Clean the underside of the
cabinet to remove any grease or
other residue.
2. With the doors of the cabinet
open, place the front of the
Mounting Template even with the
front of the cabinet. (Figure B)
Tape securely in place.
3. Mark the four drill holes
through the Template onto the
cabinet bottom with a pencil and
Overhang Bottom-1B
Flush bottom-1A
Figure B
6
