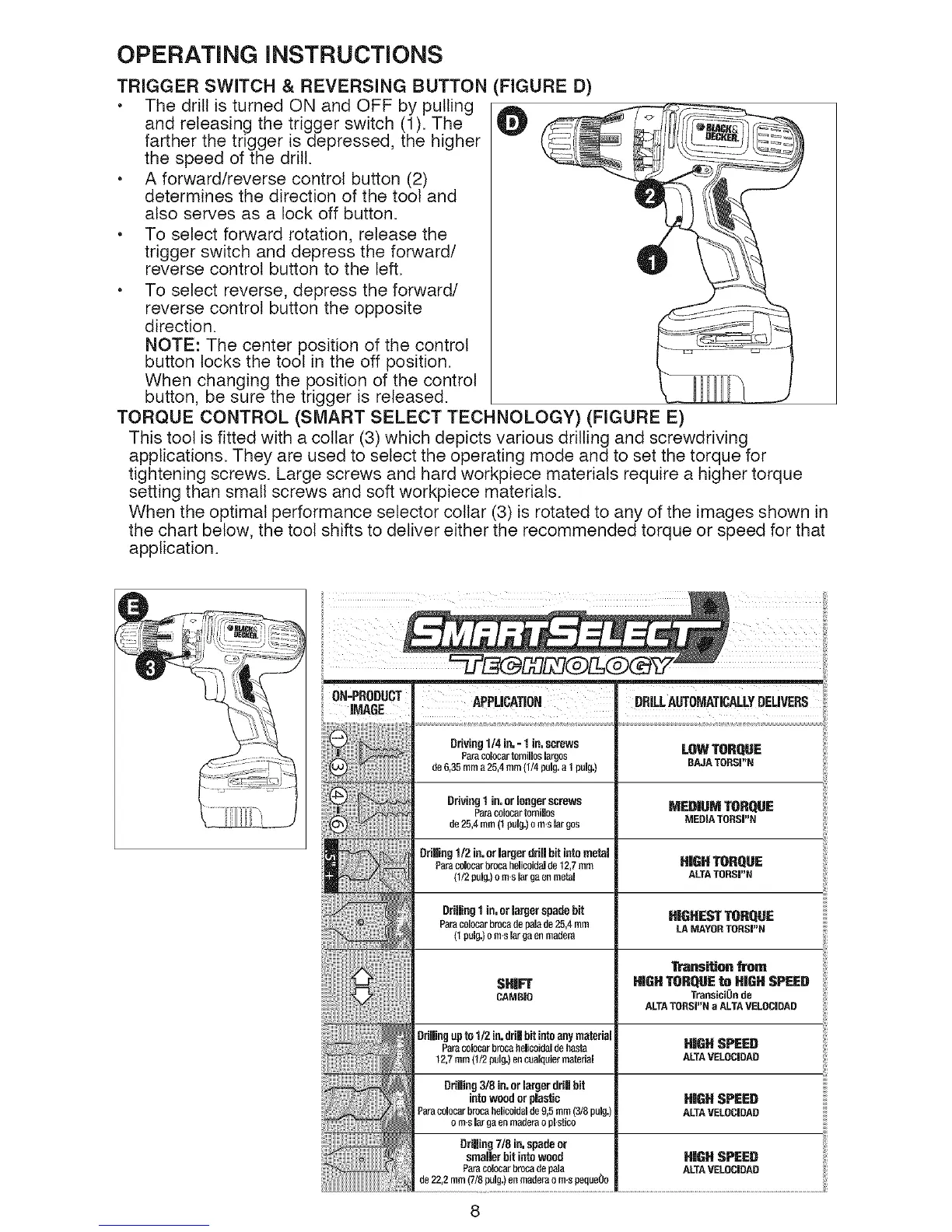

OPERATING iNSTRUCTiONS
TRIGGER SWITCH & REVERSING BUTTON FIGURE D)
The drill is turned ON and OFF by pulling ,_L
and releasing the trigger switch (1). The
farther the trigger is depressed, the higher
the speed of the drill.
A forward/reverse control button (2)
determines the direction of the tool and
also serves as a lock off button.
To select forward rotation, release the
trigger switch and depress the forward/
reverse control button to the left.
To select reverse, depress the forward/
reverse control button the opposite
direction.
NOTE: The center position of the control
button locks the tool in the off position.
When changing the position of the control
button, be sure the trigger is released.
TORQUE CONTROL (SMART SELECT TECHNOLOGY) (FIGURE E)
This tool is fitted with a collar (3) which depicts various drilling and screwdriving
applications. They are used to select the operating mode and to set the torque for
tightening screws. Large screws and hard workplace materials require a higher torque
setting than small screws and soft workpiece materials.
When the optimal performance selector collar (3) is rotated to any of the images shown in
the chart below, the toot shifts to deliver either the recommended torque or speed for that
application.
0N-PRODUCT APPLiCATiON DRILLAUTOMATiCALLYDELIVERS
Driving1/4 in.- 1 in, screws LOW TORQUE
ParecolocartarniU0slargos
de 6,35 mm a 25,4 mm (1/4 paiD. a 1 palg.) BAJA TORSi"N
Driving1in.orlongerscrews MEDIUM TORQUE
Paracolcoar torniiios
de 25,4 mm (1 palg.)o m's JarDos MEDIA TORSi"N
gdUing !/2 in.or Jargerddll bit into metal
Para cal0car broca helicoidal de 12,7 mm HIGHTORQUE
(1/2 polo.)o m,s Jarga eft metal ALTA TORSI"N
Drilling1 in, or larger spade bit HIGHEST TORQUE
Para eolcoar broca de pala de 25,4 mm LA MAYOR TORSJ"N
(I polo.) o m-s lar ga on madera
_a.siUon from
SHIFT HIGH TORQUEto HIGH SPEED
CAMBBO Transict0n de
ALTA TDRSJ'_N a ALTA VELOCJDAD
Drilling upto 1/2 in. dd| bit into any material
Para colcoar broca helicoidalde hasta HIGHSPEED
12,7 mm (1/2 puIg.)eo eualquier material ALTA VELOC|DAD
Drilling 3/8 in. or largerdrill bit
intowood or plastic
Paracolocarbrcoahelicoidalde9,5mm(3/8puig.)
om-sJargaenmadamopl.stico
Drilling7/8 in,spade or
srealler bit into wood
Paracolcoarbrcoadepala
de22,2mm(7/8paiD.)enmadera0m.speque00
HiGHSPEED
ALTA VELOCJDAD
HIGHSPEED
ALTA VELOC|DAD
