From the page shown in Figure 3-3, you can view and configure the sensor options.
Sensor Name
The sensor can be named as needed for the application.
Status
When communication with the temperature sensor is lost, the status of the temperature sensor is changed to sensorError.
When communication with the temperature sensor is reestablished, the status will be determined by comparing the
Degree to the high and low thresholds.
Sensor Reading
The current sensor reading.
Sensor Currently
Displays the sensor’s current status.
Thresholds
You can re-configure the Thresholds for each sensor state. After changing a threshold value, click “Save” for the changes
to take effect.

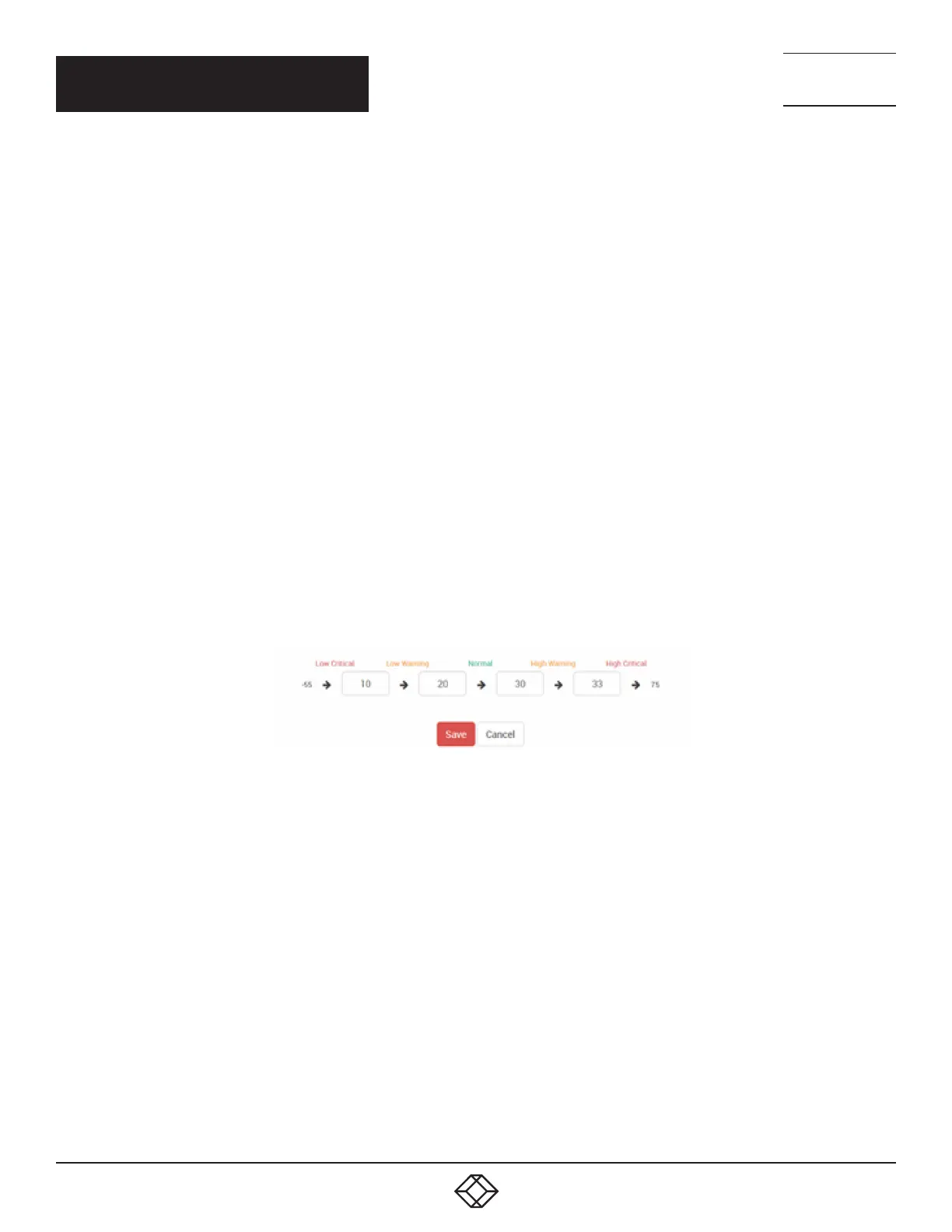

An example of threshold settings is shown in Figure 3-4.
FIGURE -: THRESHOLD SETTINGS
CHAPTER 3: OPERATION
