CHAPTER 3: PRE-INSTALLATION
Top and bottom
mounting locations
Back side
mounting locations

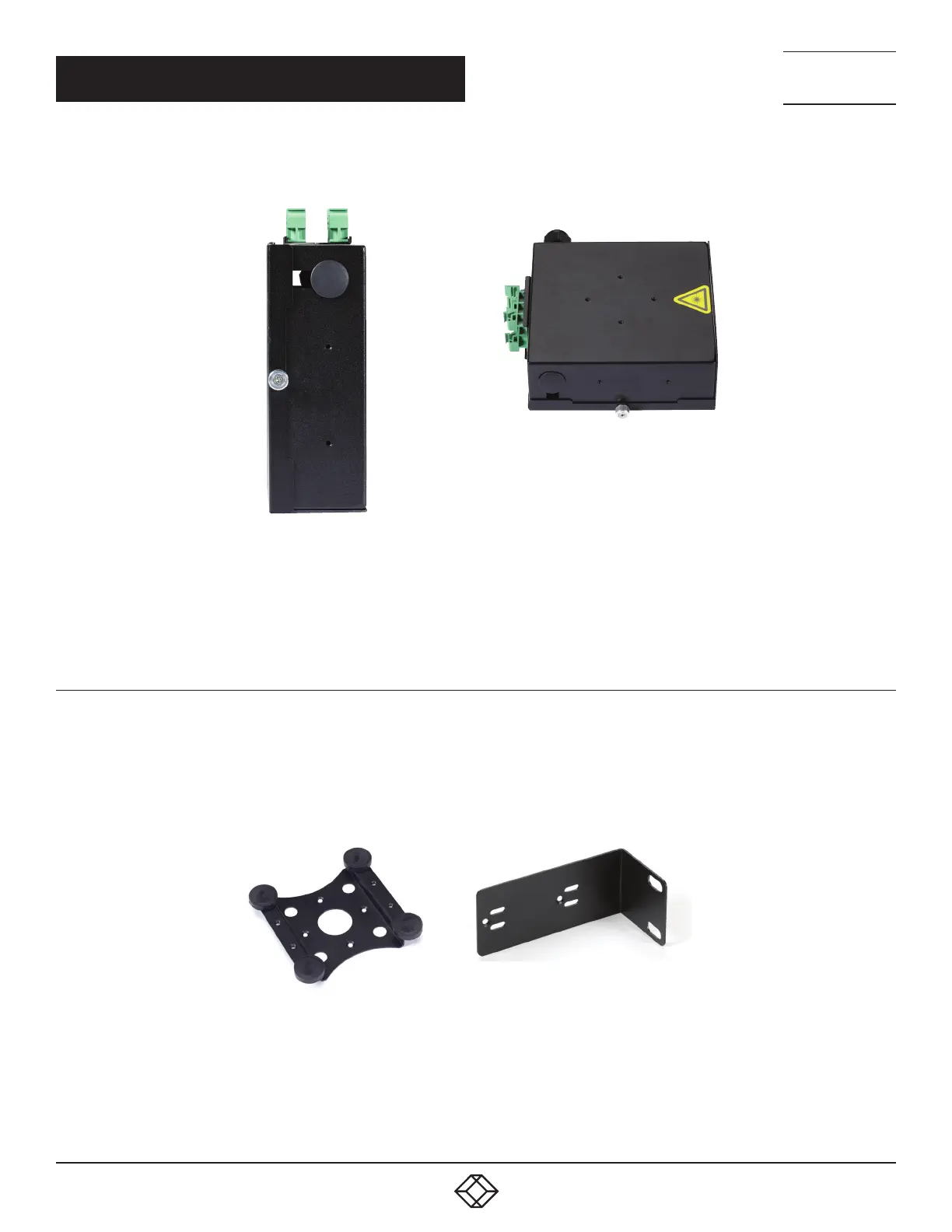

FIGURE 3-2. TOP AND BOTTOM AND BACK SIDE MOUNTING LOCATIONS
STEP 1A: OPTIONAL MOUNTING SOLUTIONS
The DIN Rail Fiber Enclosure has several other optional mounting solutions. There is an optional Magnetic Bracket (sold separately,
part number ACC-MAGBRKT) and an “L” shaped Adapter bracket (included with the DIN Rail Enclosure) that can be used for the other
non-DIN rail mounting installations. (See Photo below) These optional mounting solutions are supported on either the one or two
port Din Rail Fiber Enclosure.
part number
ACC-MAGBRKT
included
FIGURE 3-3. OPTIONAL MAGNETIC BRACKET AND “L”-SHAPED BRACKET
