EXCEL 2000.

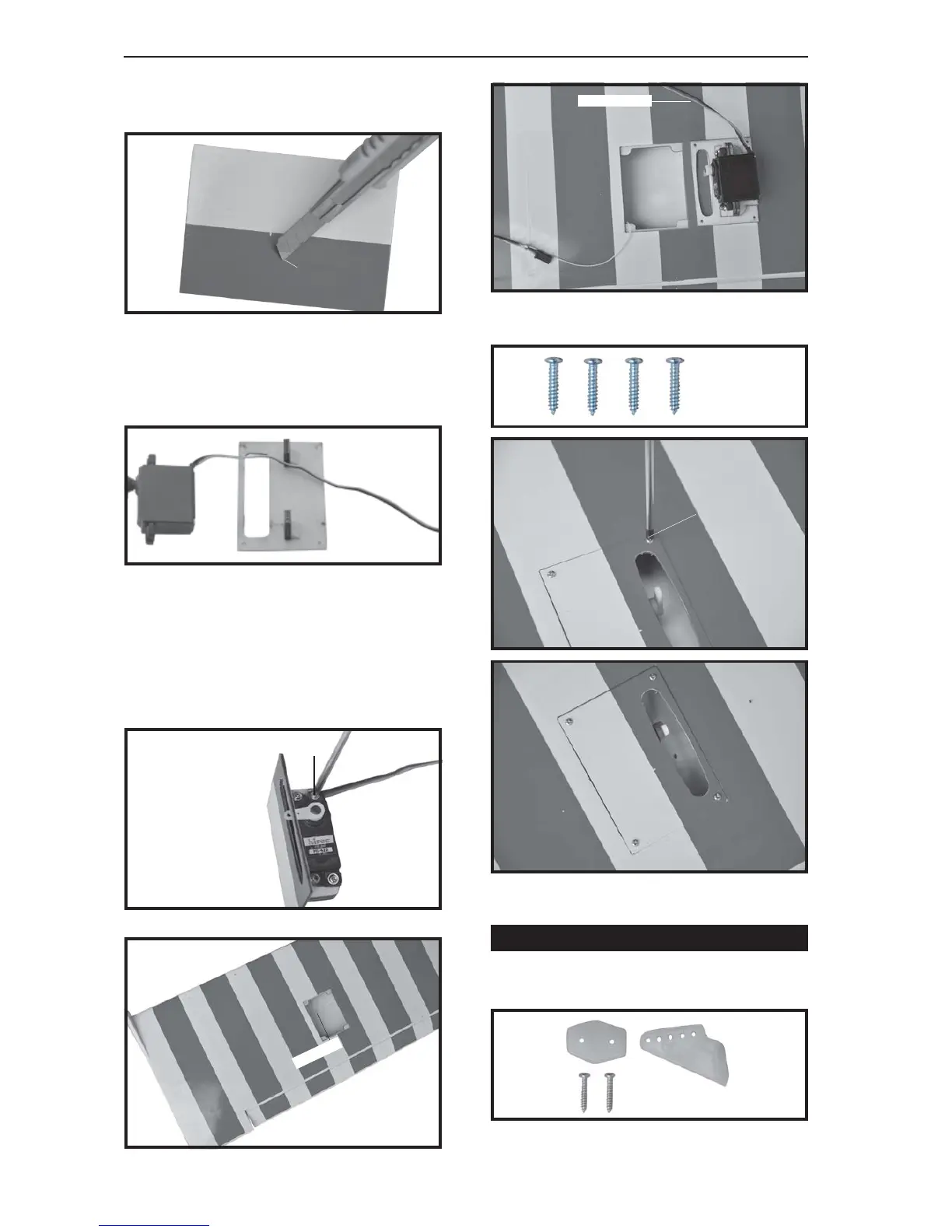

5. Instal servo tray with aileron servo into
the wing as same as picture below.
Repeat the procedure for the other wing
half.
INSTALLING THE AILERON CONTROL HORN.
Electric wire.
Install aileron control horn as same
as picture below.
2 x16mm.
Control horn of Aileron
Secure.
2 x 10 mm.
2. Using a modeling knife, remove the cov-
ering servo tray.
Remove
covering.
Servo tray
3. Drill 1,5mm pilot holes through the block
of wood for each of the four mounting screws
provided with the servo. Install servo into ai-
leron servo tray as same as picture below.
4. Using the thread as a guide and using
masking tape, tape the servo lead to the end
of the thread: carefully pull the thread out.
When you have pulled the servo lead out, re-
move the masking tape and the servo lead
from the thread.
Secure
Thread.
To Next Page
