PRODUCT SPECIFICATIONS
Bar length ................................................... 20 in.
Chain pitch ............................................. .325 in.
Chain gauge ........................................... .050 in.
Chain type ............................................ Standard
Drive sprocket ......................................... 7-tooth
Engine displacement ................................... 50cc
Chain drive links .............................................. 78
Idle engine speed ..........2,600-3,400/min. (RPM)
Fuel tank capacity .................................. 19.4 oz.
Chain lubricant tank capacity ................. 11.8 oz.

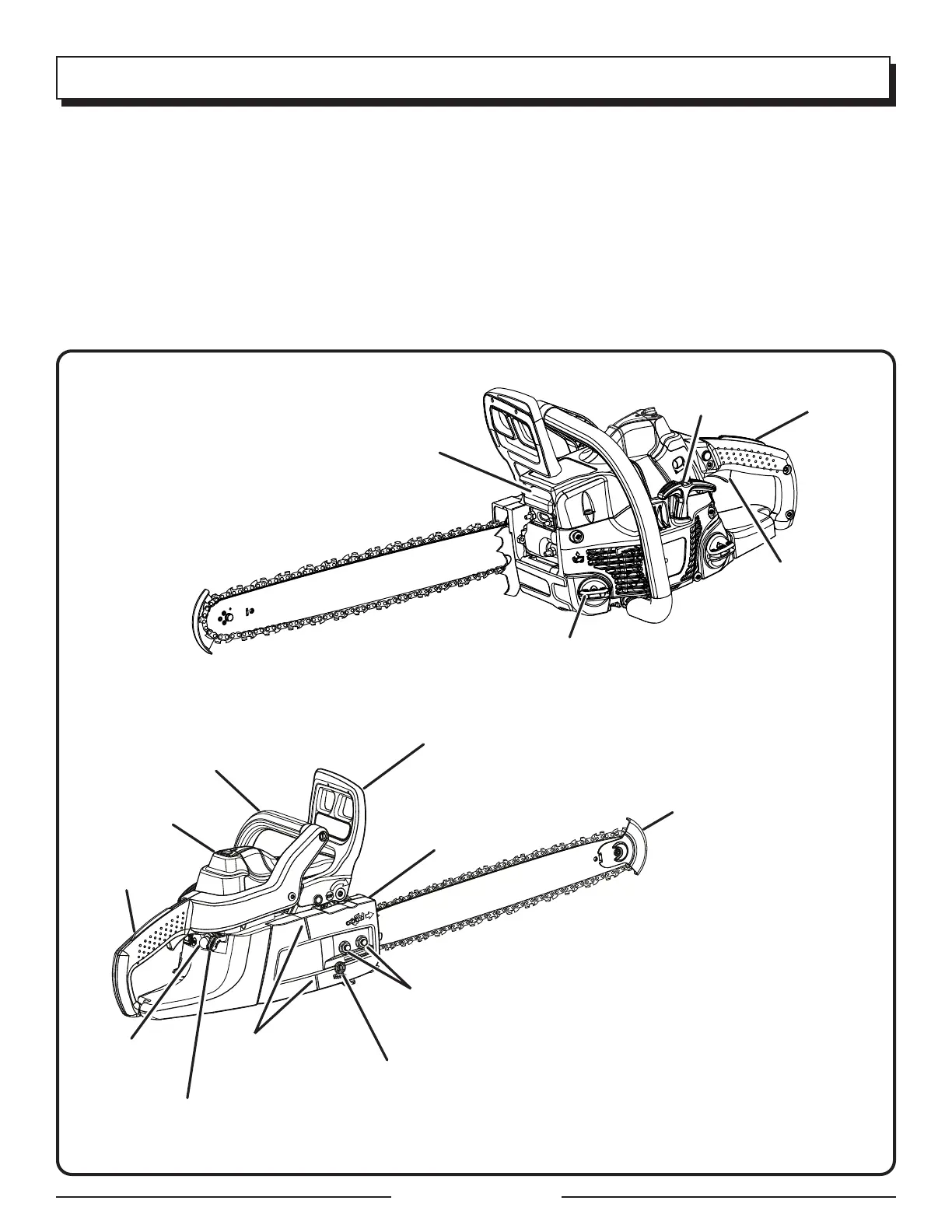

Fig. 1a
FRONT HAND GUARD/
CHAIN BRAKE
FRONT
HANDLE
AIR FILTER/
CYLINDER
COVER
TRIGGER
RELEASE
CHAIN OIL
CAP
SAFETY TIP
PRIMER
BULB
CHOKE
LEVER
BAR
MOUNTING
NUTS
MUFFLER
STARTER GRIP
AND ROPE
THROTTLE
TRIGGER
REAR
HANDLE
CHAIN TENSIONING
SCREW
CLUTCH COVER
FELLING
DIRECTION
SIGHTS
FEATURES
