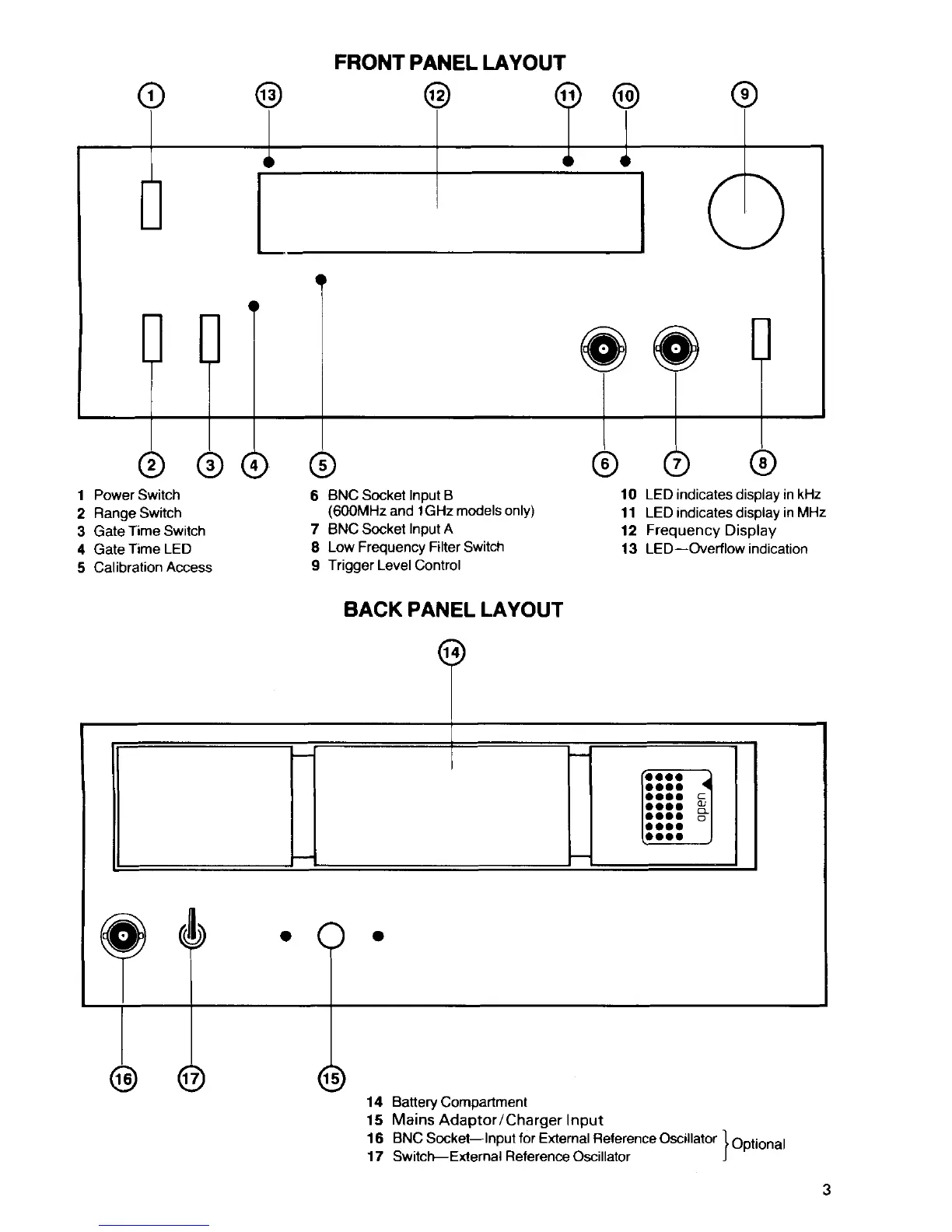

FRONT
PANEL LAYOUT
1 Power
Switch
2
Range Switch
3 GateTimeSwitch
4 GAIE
T|ME LED
5 Calibration
Access
6
BNC Socket Input B
(6O0MHz
and lGHz models only)
7 BNC Socket
Input A
8
Low Frequency Filter Switch
I
Trigger Level
Control
BACK PANEL LAYOUT
@
10
LED indicates
display
in kHz
11 LED indicates display
in MHz
12
Frequency
Display
13 LED-Overflow
indication
14
BaneryCompartment
15 Mains
Adaptor/Charger Input
16
BNC
Socket-lnput
for Eldernal Belerence
Oscillator
]
Ootional
17 Switch-External
Reference
Oscillator J
