Make sure the front pins are fully
seated in the holes, then push
the griddle top back to lock the
griddle in place.
Place the two front pins into the
front locking holes and push the
griddle top and hood back. Then,
set the two rear pins into the
rear holes.
Place the two front pins into the
front locking holes and push the
griddle top and hood back. Then,
set the two rear pins into the
rear holes.
Make sure the front pins are fully
seated in the holes, then push
the griddle top back to lock the
griddle in place.
Make sure the front pins are fully
seated in the holes, then push
the griddle top forward to lock
the griddle in place.
Make sure the front pins are fully
seated in the holes, then push
the griddle top forward to lock
the griddle in place.
MODEL: 

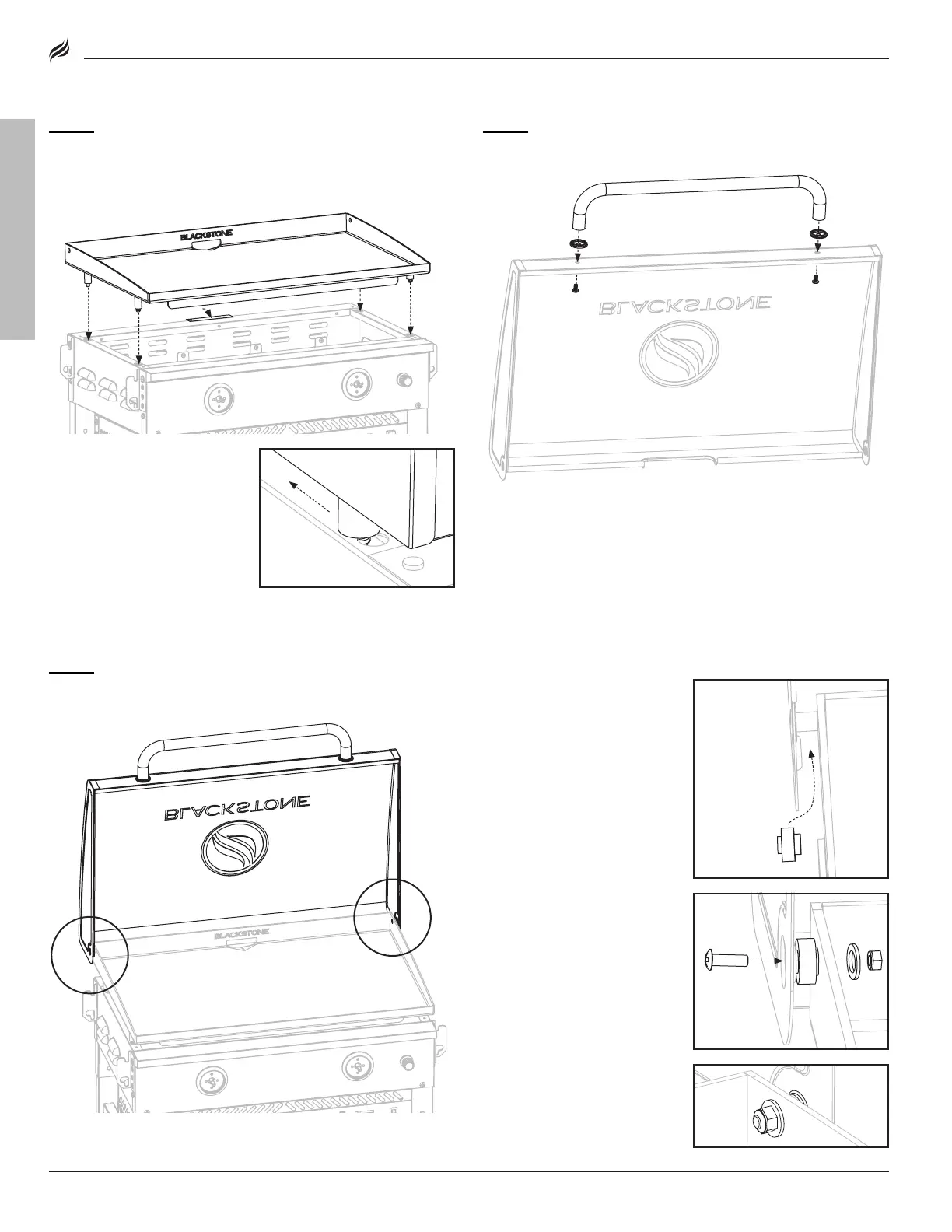

STEP 07
Hang the grease cup in the slot on the back of the
griddle body.
With the help of another person, place the griddle top on the
griddle body by aligning the four (4) pins to the holes of the body.
STEP 08
Use two (2) M6x12 screws and two (2) hood handle bezels to
attach the hood handle to the griddle hood.
STEP 09
Attach the hood to the griddle top:
❶❶
Align the hood with the holes on the griddle top. ❷ ❷
Place one (1) hood spacer
between the hood and the
griddle top, the small end into
the hood and the large end into
the griddle top.
❸❸
Thread one (1) M6x20
screw into the hood, hood
spacer, griddle top, one (1)
hood washer, and one (1)
M6 lock nut.
Repeat on other side.

