! WARNING
The manufacturer has made
every eort to eliminate any
sharp edges. However, you
should handle all compo-
nents with care to avoid
accidental injury.
Some parts may contain
sharp edges, especially
as noted in these instruc-
tions. Wear protective
gloves if necessary.
! WARNING
The use of alcohol, prescrip-
tion or non-prescription
drugs may impair the
consumer’s ability to prop-
erly assemble or safely
operate the appliance.
! CAUTION
Two people are recom-
mended for the assembly
of this product.

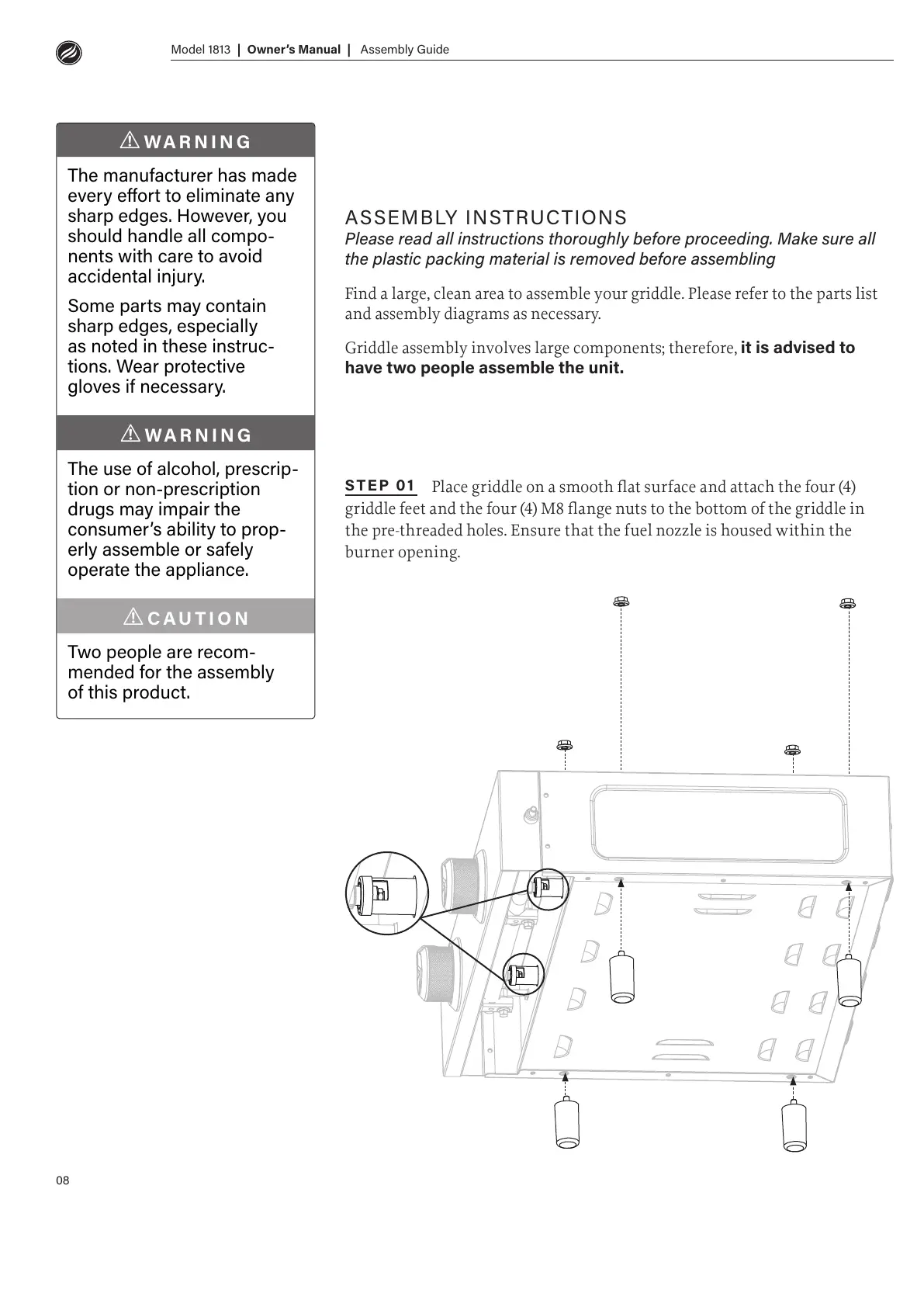

ASSEMBLY INSTRUCTIONS
Please read all instructions thoroughly before proceeding. Make sure all
the plastic packing material is removed before assembling
Find a large, clean area to assemble your griddle. Please refer to the parts list
and assembly diagrams as necessary.
Griddle assembly involves large components; therefore, it is advised to
have two people assemble the unit.
STEP
Place griddle on a smooth at surface and attach the four (4)
griddle feet and the four (4) M8 ange nuts to the bottom of the griddle in
the pre-threaded holes. Ensure that the fuel nozzle is housed within the
burner opening.
STEP
Turn the griddle over so it stands on its legs. Check the ignition
needle. The needle needs to be placed 3-7mm above the burner tube.
STEP
Place the griddle top onto the griddle body by aligning the four
pins to the holes of the body. Make sure the front pins are fully seated in the
holes, then push the griddle top back to lock the griddle in place.
Make sure the front pins are fully
seated in the holes, then push the
griddle top back to lock the griddle
in place.
3-7mm
Model 1813 | Owner’s Manual | | Owner’s Manual | Model 1813
08 09
Assembly Guide Assembly Guide
To Next Page
