Black Stone 2149 - Step-by-Step Assembly Instructions

ENGLISH
BLACKSTONEPRODUCTS.COM/SUPPORT
OWNER’S MANUAL | ASSEMBLY GUIDE
ASSEMBLY INSTRUCTIONS
Find a large, clean area to assemble your appliance.
Remove all packing material before assembling.
 CAUTION
Sharp edges. Wear gloves while assembling.
 CAUTION
Heavy pieces. Two people should assemble this appliance.
NOTICE
Place appliance on a heat-resistant and flame-resistant
surface while in use.
NOTICE
DO NOT leave the hood closed for more than 10 minutes while
cooking.
NOTICE
• DO NOT mix old and new batteries.
• DO NOT mix alkaline, standard (carbon-zinc) or rechargeable
(ni-cad, ni-mh, etc.) batteries.
TOOLS NEEDED:
Phillips head screwdriver &
Adjustable wrench
TOOL NEEDED:
Phillips head screwdriver
TOOL NEEDED:
Adjustable wrench
TOOL NEEDED:
5mm Allen wrench
NOT INCLUDED:
LPG cylinder
Size: 18 x 12 in (45 x 30 cm), 20 lb (9 kg)
Size: 18 x 12 in (45 x 30 cm), 20 lb (9 kg)
LPG cylinder must include collar to
LPG cylinder must include collar to
protect LPG cylinder valve.
protect LPG cylinder valve.
NOT INCLUDED:
17" griddle base
NOT INCLUDED:
22" griddle base
NOT INCLUDED:
AA battery
ELECTRIC REQUIREMENTS:
120V 60Hz
NOT INCLUDED:
LPG cylinder
Size: 4 x 8 in (10 x 20 cm), 1 lb (453 g)Size: 4 x 8 in (10 x 20 cm), 1 lb (453 g)
TOOLS NEEDED:
Phillips head screwdriver &
Adjustable wrench
TOOL NEEDED:
Phillips head screwdriver
TOOL NEEDED:
Adjustable wrench
TOOL NEEDED:
5mm Allen wrench
NOT INCLUDED:
LPG cylinder
Size: 18 x 12 in (45 x 30 cm), 20 lb (9 kg)Size: 18 x 12 in (45 x 30 cm), 20 lb (9 kg)
LPG cylinder must include collar to LPG cylinder must include collar to
protect LPG cylinder valve. protect LPG cylinder valve.
NOT INCLUDED:
17" griddle base
NOT INCLUDED:
22" griddle base
NOT INCLUDED:
AA battery
ELECTRIC REQUIREMENTS:
120V 60Hz
NOT INCLUDED:
LPG cylinder
Size: 4 x 8 in (10 x 20 cm), 1 lb (453 g)Size: 4 x 8 in (10 x 20 cm), 1 lb (453 g)
TOOLS NEEDED:
Phillips head screwdriver &
Adjustable wrench
TOOL NEEDED:
Phillips head screwdriver
TOOL NEEDED:
Adjustable wrench
TOOL NEEDED:
5mm Allen wrench
NOT INCLUDED:
LPG cylinder
Size: 18 x 12 in (45 x 30 cm), 20 lb (9 kg)Size: 18 x 12 in (45 x 30 cm), 20 lb (9 kg)
LPG cylinder must include collar to LPG cylinder must include collar to
protect LPG cylinder valve. protect LPG cylinder valve.
NOT INCLUDED:
17" griddle base
NOT INCLUDED:
22" griddle base
NOT INCLUDED:
AA battery
ELECTRIC REQUIREMENTS:
120V 60Hz
NOT INCLUDED:
LPG cylinder
Size: 4 x 8 in (10 x 20 cm), 1 lb (453 g)Size: 4 x 8 in (10 x 20 cm), 1 lb (453 g)
MODEL: 

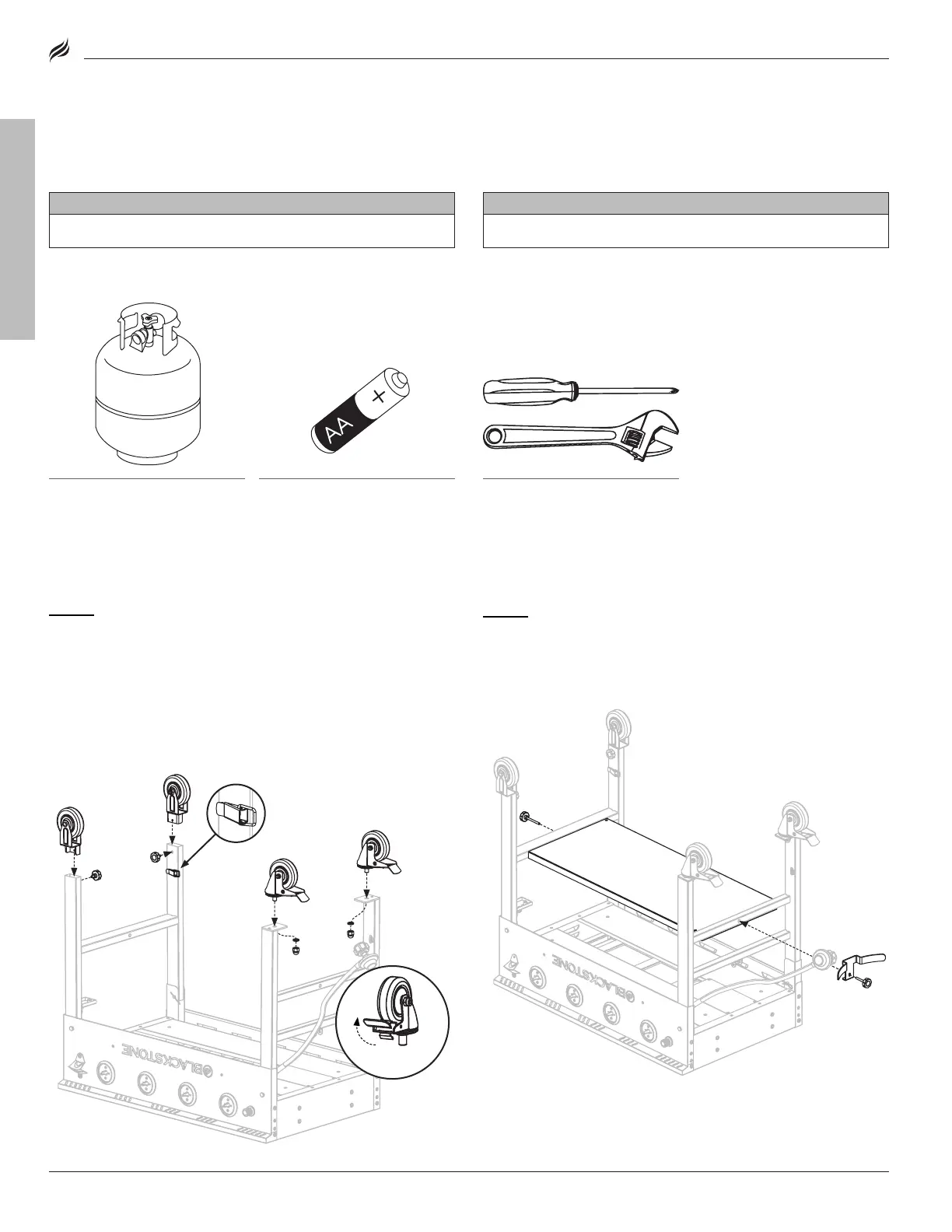

STEP 01
With the help of another person, remove the griddle body
from the packaging and lay it upside down on a smooth, flat surface.
Unlatch and unfold the legs to their vertical position.
❶ ❶
Use two (2)
small thumb screws to attach the fixed wheels onto the ends of the
right leg assembly.
❷ ❷
Use two (2) acorn nuts and two (2) spring washers to attach the
two (2) caster wheels onto the left leg assembly. (Ensure that the
caster wheels are locked.)
STEP 02
Place the bottom shelf between the leg assemblies.
❶ ❶
Use
one (1) large thumb screw to secure the shelf to the left leg assembly.
❷ ❷
Use one (1) medium thumb screw to attach the LPG support and
secure the shelf to the right leg assembly.
❶
❶
❷
❷
Push to lockPush to lock
❶
❶
❷
❷

