Black Stone 2165 - Page 4

ENGLISH
BLACKSTONEPRODUCTS.COM/SUPPORT
OWNER’S MANUAL | ASSEMBLY GUIDE MODEL: 
ASSEMBLY GUIDE
PARTS
QTY
1.1a
Control panel
1
1.1b
Control knob bezels
2
1.2
Logo badge 1
1.3a
Rear panel 1
1.3b
Bottom panel 1
PARTS
QTY
1.3c
Left side panel
1
1.3d
Right side panel
1
1.4
U Reinforcement
plates
4
1.5
Bale panel 1
PARTS
QTY
1.6
Ignition needles
2
1.7
Gas rail
1
1.8
H burners 2
1.9
Regulator 1
2.1
Hood 1
PARTS
QTY
2.2
Griddle top
1
5.1
Background panel
1
5.2
Left decoration panel 1
5.3
Right decoration
panel
1

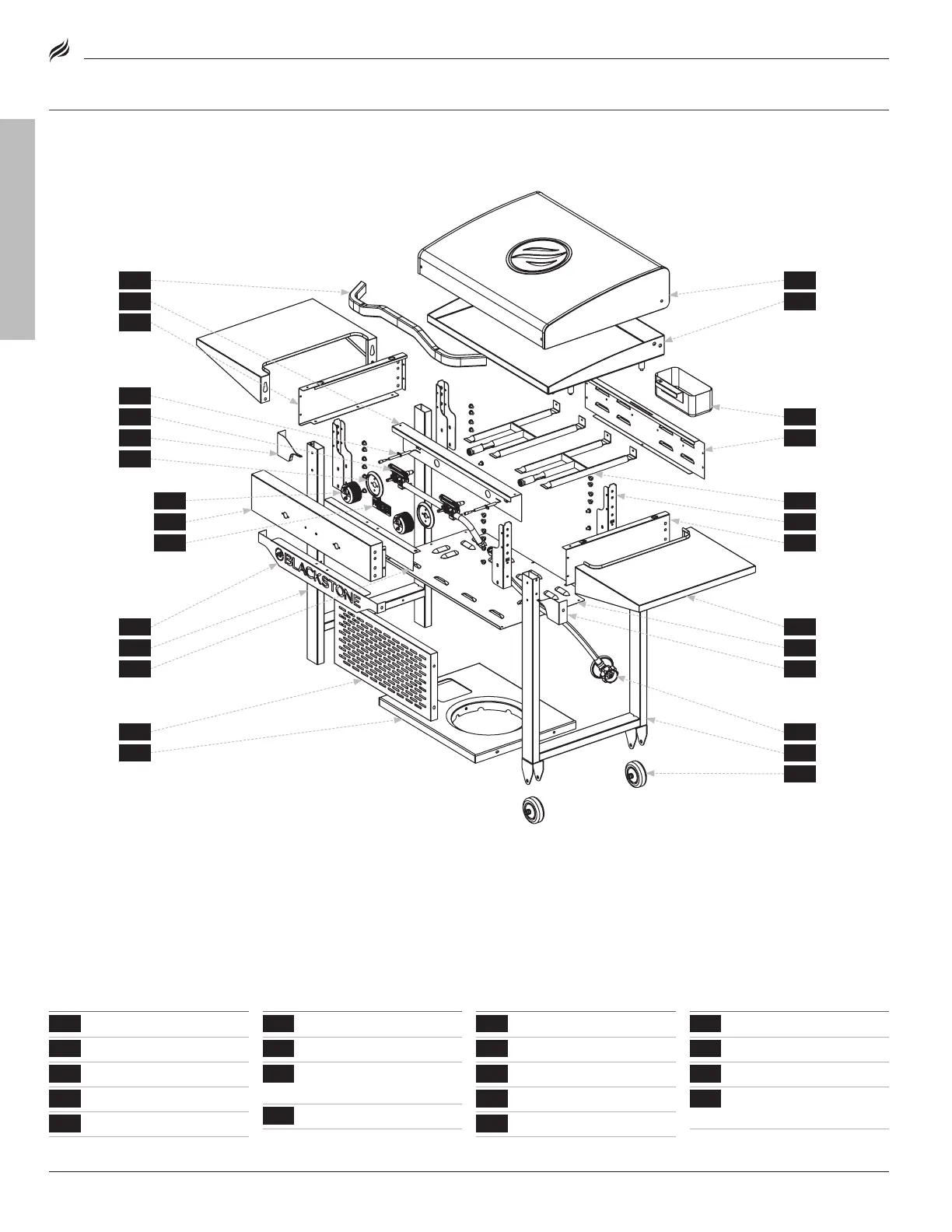

ExPLODED VIEW
PARTS LIST
1.3c
8
4
9
5
7
3
10
6
1.1a
1.9
1.3d
1.3a5.1
1.6
1.1b
2.1
1.4
5.2
1.7
1.2
2.21.5
11
1.3b
12a
5.3
1.8

