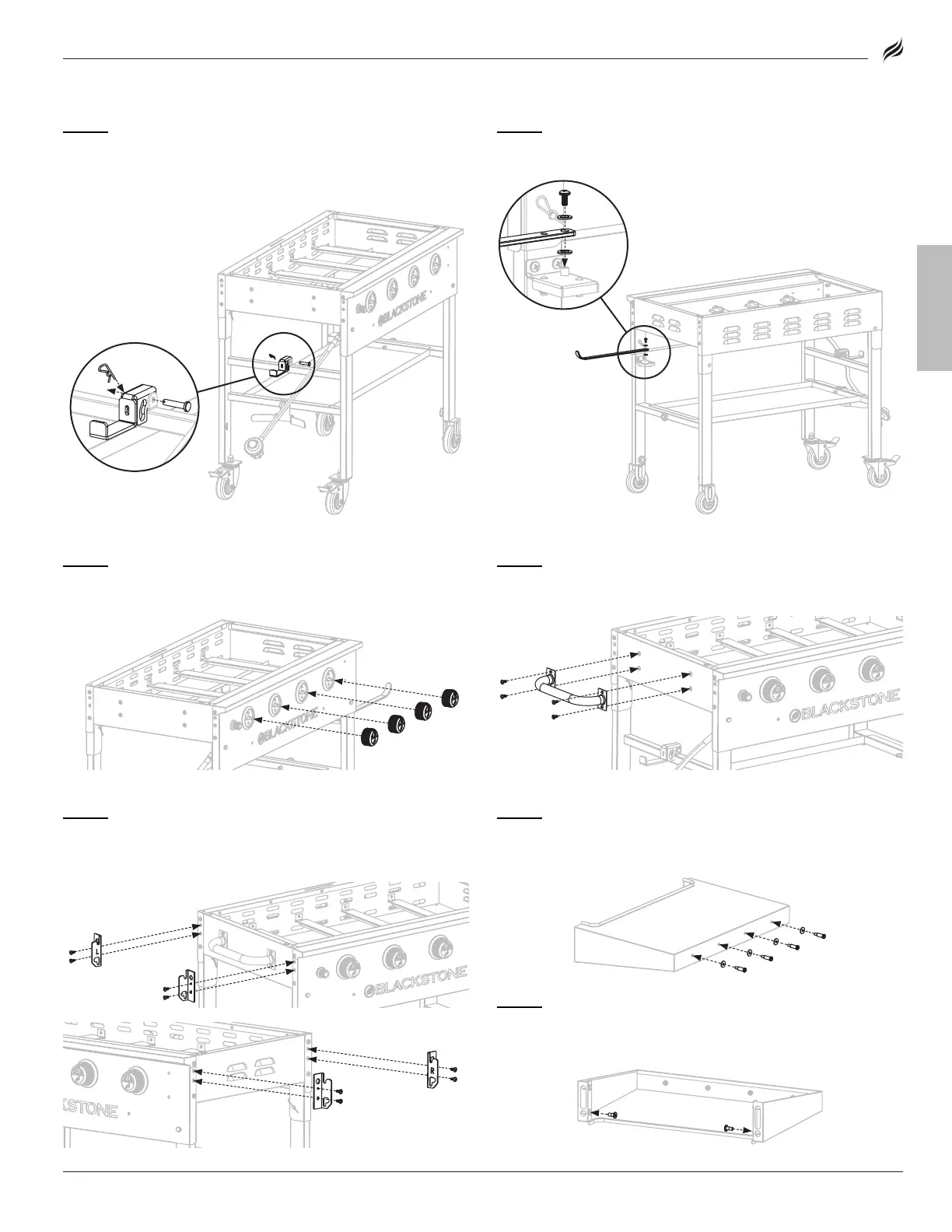

STEP 03
With the help of another person, set the griddle body on
its feet.
Use one (1) shear pin [i.] and one (1) cotter pin [j.] to attach the
propane tank hanger to the upper bar of the left leg assembly.
STEP 04
Use one (1) M6x12 screw [c.] and two (2) washers [k.] to
attach the paper towel holder to the paper towel bracket.
STEP 05
Install the four (4) control knobs by pushing them into place
in the OFF position.
STEP 06
Use four (4) M6x12 screws [c.] to install the side handle to
the left side of the griddle body.
STEP 07
Use four (4) M6x12 screws [c.] to attach one (1) side shelf
bracket (L), and one (1) side shelf bracket (R) to the right side of the
griddle body. Repeat this step with the left side of the griddle body.
STEP 08
Thread four (4) side shelf pegs [a.] through four (4) peg
washers [f.] and into the right side shelf.
Repeat with the left side shelf.
STEP 09
Thread two (2) M6 step bolts [d.] into the upper holes of the
right side shelf.
Repeat with the left side shelf.
[i.] × 1
[j.] × 1
[c.] × 8
L
L
R
R
[a.] × 8
[f.] × 8
[d.] × 4
L
L
R
R
[c.] × 4
[c.] × 1
[k.] × 2

