Black Stone 2307 - Page 4

ENGLISH
BLACKSTONEPRODUCTS.COM/SUPPORT
OWNER’S MANUAL | ASSEMBLY GUIDE MODEL: 
ASSEMBLY GUIDE
PARTS
QTY
1.1
Control knob bezels

1.2
Electric Igniter

1.3
Electric igniter wire
(4 pcs per 1 set) with
electrode

1.4
Gas rail & Valves 
PARTS
QTY
1.5
Tubular burners

1.6a
Hood

1.6b
Hood hinge lever 1 
1.6c
Hood hinge lever 2 
1.7a
Left bale panel 
PARTS
QTY
1.7b
Right bale panel

1.8
Gas tank heat shield

1.9
Regulator hose 
3.1
Gas tank slides 
3.2
Sliding tray assembly 
PARTS
QTY
32.1
Grease cup liner

33.1
Left drawer slides

33.2
Right drawer slides 

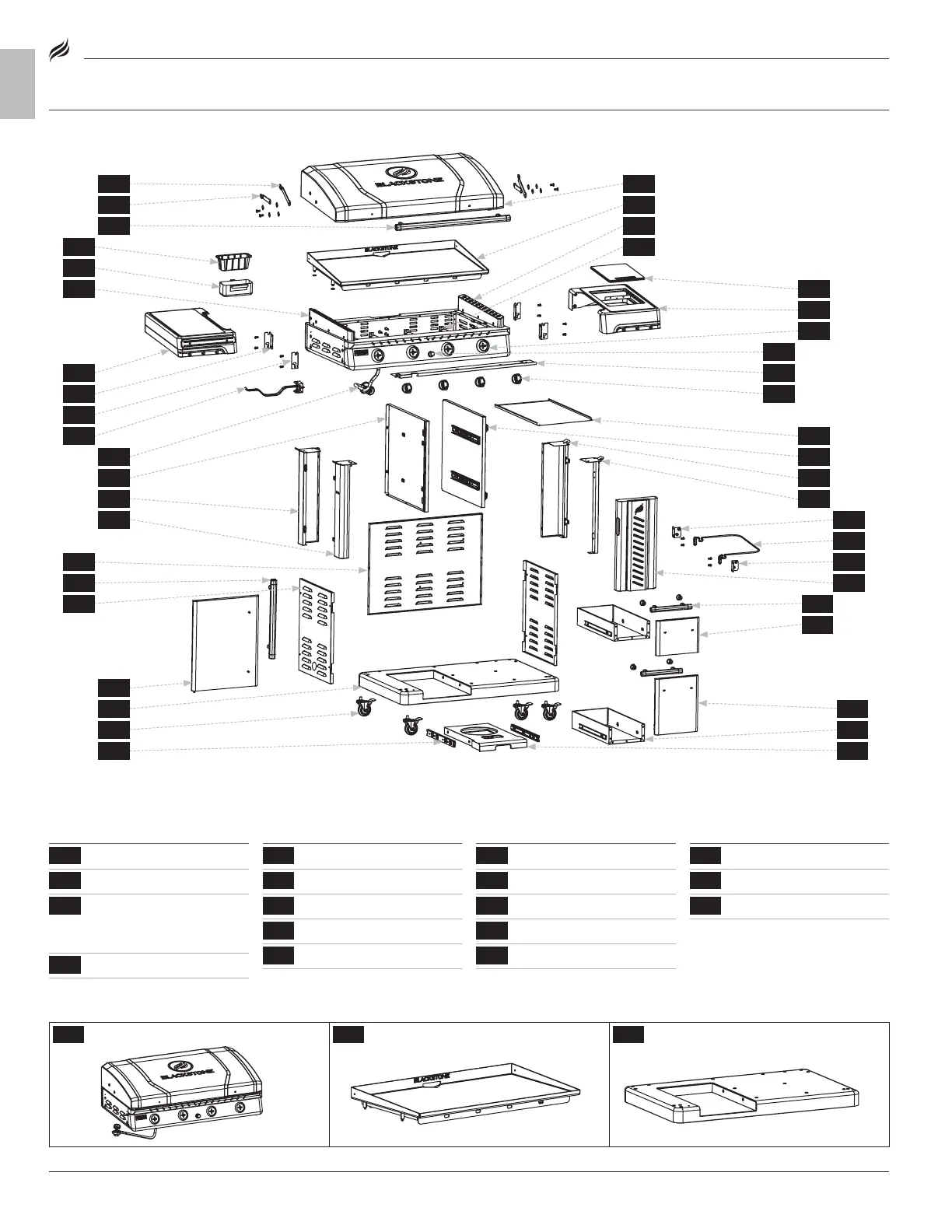

ExPLODED VIEW
PARTS LIST
1
Griddle body (1 piece)
2
Griddle top (1 piece)
3
Cart base (1 piece)
33
1.1
3.1
1.6b
32.1
1.7b
1.2
3.2
1.6c
1.5
12
1.7a
1.6a
1.9
25
13
7
30
19
4
17
16
22
2
26
14
9
10
20
5
28
23
31
3
27
15
8
32
21
6
29
18
11
24

