| OWNER’S MANUALASSEMBLY GUIDEMODEL: 
4

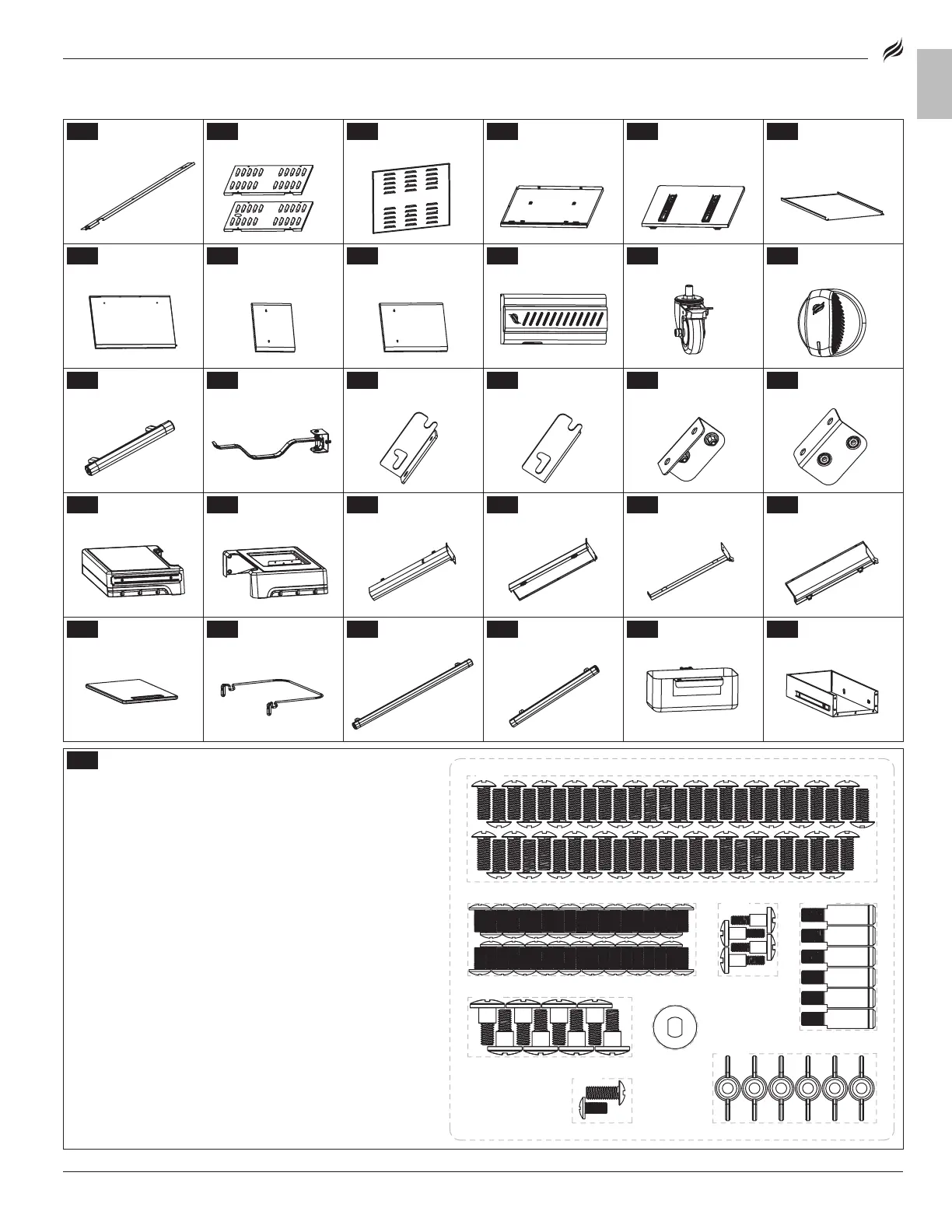

Top bracket
(1 piece)
5
Side panels
(2 pieces)
6
Back panel
(1 piece)
7
Left drawer
panel assembly
(1 piece)
8
Right drawer
panel assembly
(1 piece)
9
Drawer heat
shield (1 piece)
10
Left door
(1 piece)
11
Upper drawer
front panel (1 piece)
12
Lower drawer
front panel (1 piece)
13
Right door
(1 piece)
14
Caster wheels
(4 pieces)
15
Control knobs
(4 pieces)
16
Drawer handles
(2 pieces)
17
Paper towel
holder (1 piece)
18
Side shelf
bracket (A) (2 pieces)
19
Side shelf
bracket (B) (2 pieces)
20
Garbage bag
bracket (A) (1 piece)
21
Garbage bag
bracket (B) (1 piece)
22
Left side shelf
(1 piece)
23
Right side shelf
(1 piece)
24
Front-left leg
assembly (1 piece)
25
Rear-left leg
assembly (1 piece)
26
Front-right leg
assembly (1 piece)
27
Rear-right leg
assembly (1 piece)
28
Cutting board
(1 piece)
29
Garbage bag
holder (1 piece)
30
Hood handle
(1 piece)
31
Door handle
(1 piece)
32
Grease cup
(1 piece)
33
Drawer assem-
blies (2 pieces)
34
Hardware pack (1 piece)
a. M6x15 screws (51 pieces)
b. M5x10 screws (38 pieces)
c. M5 step bolts (4 pieces)
d. M6 side shelf pegs (6 pieces)
e. M6 step bolts (8 pieces)
f. Washers (6 pieces)
g. Spares
h. Wing nuts (6 pieces)
[a.]
[b.]
[e.]
[d.]
[f.]
[g.]
[h.]
[c.]

